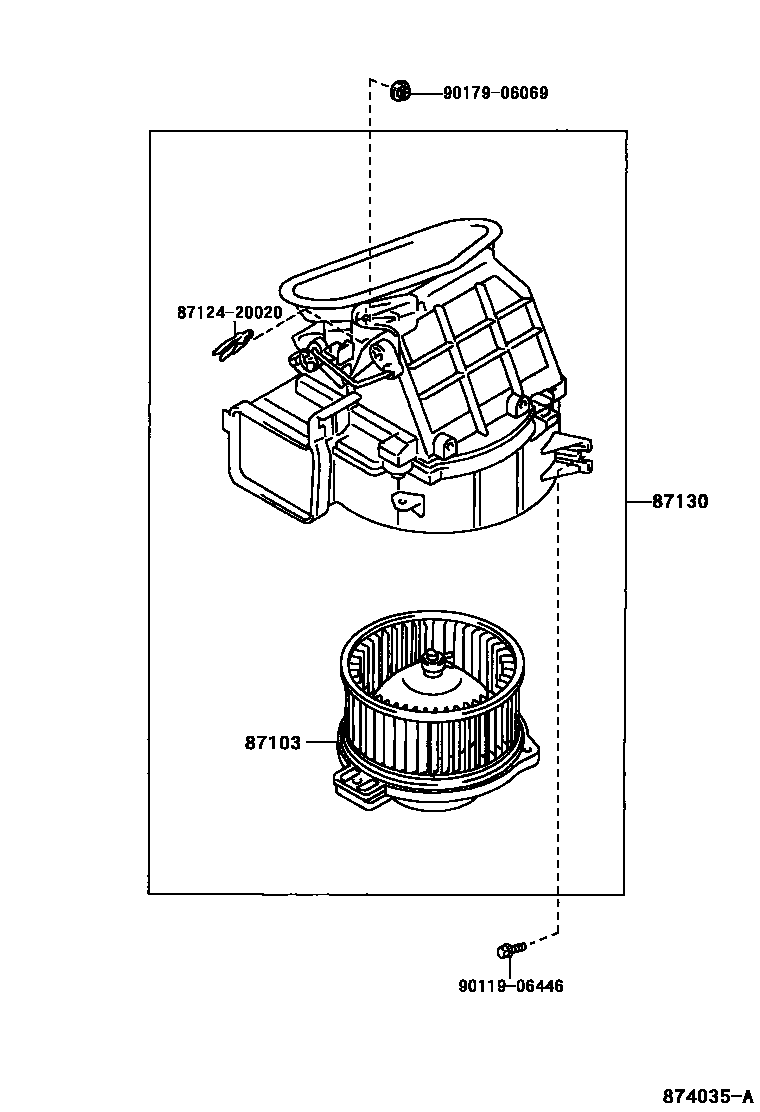

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1HEATER BLOWER 0002 1HEATER BLOWER 0003 1HEATER BLOWER--AUTO A/C 0004 1HEATER RADIATOR 0005 1HEATER RADIATOR--AUTO A/C

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-35020iKZN185,RZN185,VZN185199511-199612

main87103-35021iKZN185,RZN185,VZN185199612-199812

main87103-35022iKZN185,RZN18#,VZN18#199812

87130BLOWER ASSY, HEATER, FRONT

main87130-35070iKZN185,RZN185,VZN185199511-199807

main87130-35110iKZN185,RZN185,VZN185199807-200008

main87130-35120iKZN185,VZN185200008

W(AUTO AIR CONDITIONER)

main87130-35140iKZN185,RZN18#,VZN18#200008

8712420020CLAMP, HEATER

main87124-20020

9011906446

main90119-06446

9017906069

main90179-06069

5 parts on this diagram · 5 diagrams in section
