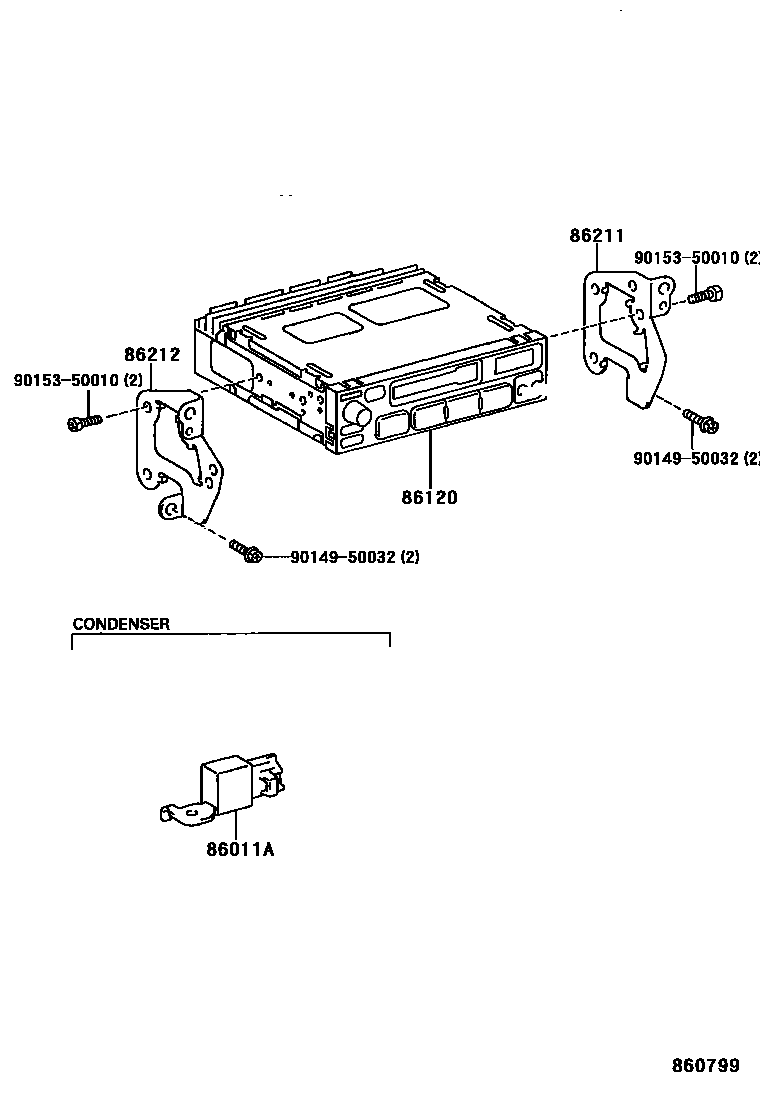

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER,BRACKET & CONDENSER 0002 1KNOB,RADIO RECEIVER

86011ACONDENSER, RADIO SETTING

main90980-04083iRZN18#,VZN18#199511

86120RECEIVER ASSY, RADIO

main86120-2B360iKZN185,RZN185,VZN185199511-199807

MATSUSHITA,ID=57400

main86120-2B610iKZN185,RZN185200008

FUJITSU TEN,ID=17411

main86120-2B620iKZN185,RZN18#,VZN18#199807

MATSUSHITA,ID=57410

86211BRACKET, RADIO, NO.1

main86211-89111iKZN185,RZN18#,VZN18#199511

86212BRACKET, RADIO, NO.2

main86212-89111iKZN185,RZN18#,VZN18#199511

9014950032

main90149-50032

9015350010

main90153-50010

6 parts on this diagram · 2 diagrams in section
