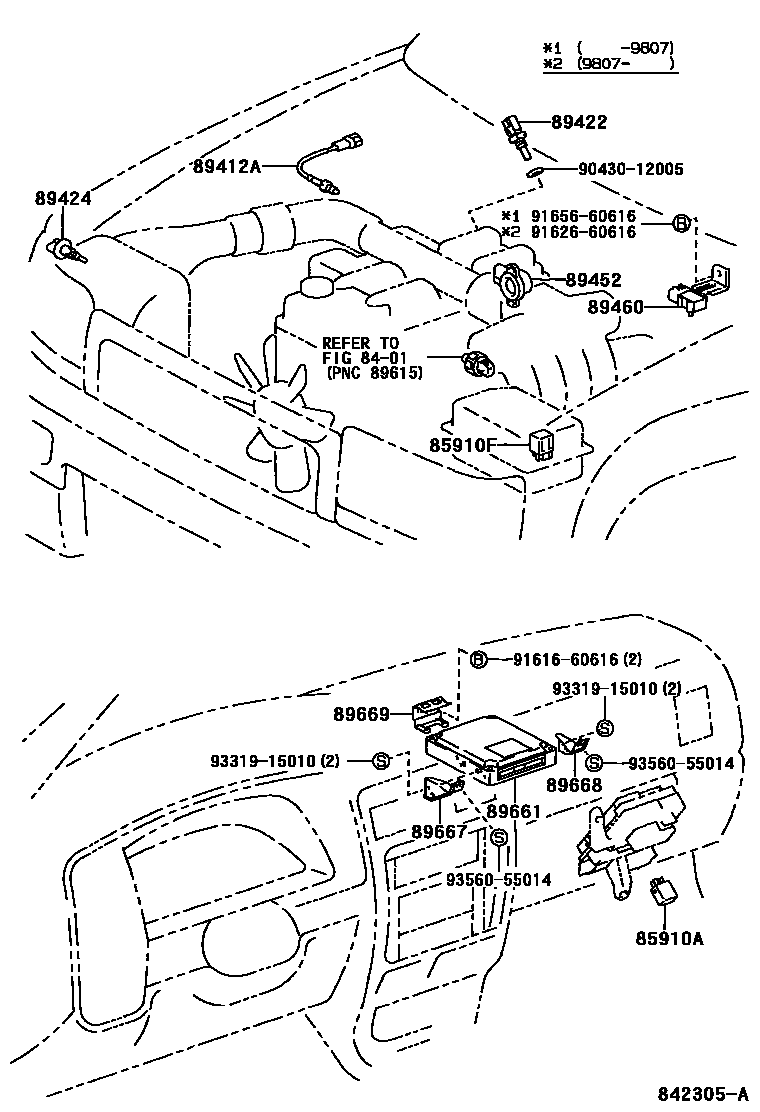

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iRZN18#,VZN18#199511

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iRZN18#,VZN18#199511

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-34010iRZN18#199511

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iRZN18#,VZN18#199511

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iRZN185199511

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iRZN185199511

main89452-35020iRZN180,VZN18#199511

89460SENSOR ASSY, VAPOR PRESSURE

main89460-0W070iRZN185,VZN185199807

PART NUMBER LABEL=89460-0W070

main89460-0W070iRZN180,VZN180200008

main89460-35010iRZN185,VZN185199511-199608

main89460-35030iRZN185,VZN185199608-199807

main89460-35030iRZN185,VZN185199807-199908

PART NUMBER LABEL=89460-35030

89661COMPUTER, ENGINE CONTROL

main89661-3D220iRZN185199511

main89661-3D270iVZN185199511-199708

main89661-3D390iVZN185199708-199807

sub89661-3D391

main89661-3D610iVZN185199807-199906

sub89661-3D611

main89661-3D611iVZN185199906-199908

sub89661-3D612

main89666-35180iVZN185199908-200001

sub89666-35181

main89666-35181iVZN185200001

main89666-35430iVZN180200008

main89666-35450iRZN180200008

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35070iRZN185,VZN185199511-199708

main89667-35080iRZN180,VZN18#199708

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35100iRZN185,VZN185199511-199708

main89668-35120iRZN180,VZN18#199708

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35050iRZN185,VZN185199511-199708

main89669-35060iRZN180,VZN18#199708

9043012005

main90430-12005

9161660616

main91616-60616

9162660616

main91626-60616

9165660616

main91656-60616

9331915010

main93319-15010

9356055014

main93560-55014

18 parts on this diagram · 2 diagrams in section
