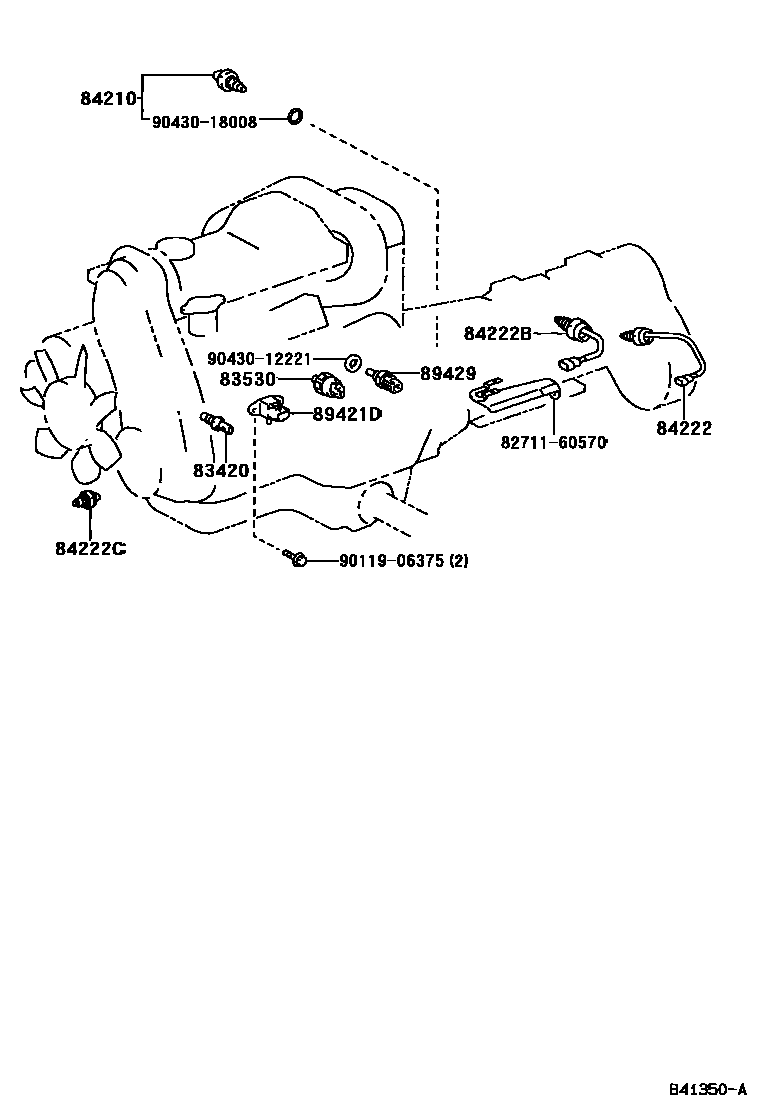

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZN18#199511

main83420-16040iKZN185199511

main83420-20040iRZN18#199511

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14070iKZN185199511-199604

NIPPONDENSO

sub83530-28010

main83530-28020iRZN18#,VZN18#199803

DENSO

main83530-30090iRZN185,VZN185199511-199803

sub83530-60020

main83530-30100iKZN185199511-199604

YAZAKI

sub83530-60010

main83530-60010iKZN185199604

main83530-60020iRZN18#,VZN18#199803

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iKZN185,RZN18#199511

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35110iKZN185,RZN185,VZN185199511

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35080iKZN185,VZN185199511-199807

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35070iKZN185,RZN185,VZN185199511-200008

89421DSENSOR, TURBO PRESSURE

main89421-60030iKZN185199511-200008

sub89421-60040

89429SENSOR, OIL TEMPERATURE

main89422-20010iKZN185199511-200008

8271160570WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60570

9011906375

main90119-06375

9043012221

main90430-12221

9043018008

main90430-18008

12 parts on this diagram · 13 diagrams in section
