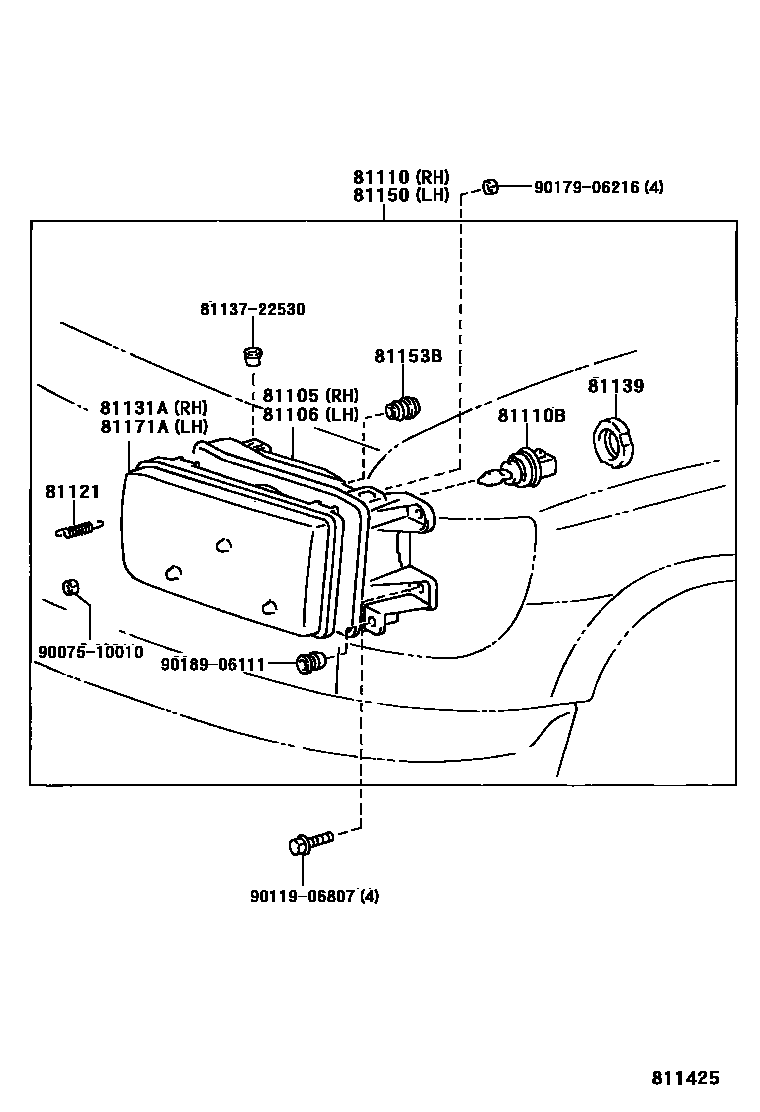

HEADLAMP

0001 1 0002 1 0003 1ARGENTINA SPEC

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-35230iKZN185,RZN185,VZN185199511-199609

main81105-35231iKZN185,RZN18#,VZN18#199609

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-35210iKZN185,RZN185,VZN185199511-199609

main81106-35211iKZN185,RZN18#,VZN18#199609

81110HEADLAMP ASSY, RH

main81110-35230iKZN185,RZN185,VZN185199511-199609

main81110-35231iKZN185,RZN185,VZN185199609-199807

main81110-35320iKZN185,RZN18#,VZN18#199807

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13055×2iKZN185,RZN185,VZN185200107

12V 60/55W,HALOGEN

main90981-13058×2iKZN185,RZN18#,VZN18#199511

12V 60/55W,HALOGEN

81121SPRING, HEADLAMP TENSION

main90075-25513×2iKZN185,RZN185,VZN185199511-199807

81131AUNIT, HEADLAMP, RH

main81130-35230iKZN185,RZN185,VZN185199511-199807

main81130-35320iKZN185,RZN18#,VZN18#199807

main81130-35410iKZN185,RZN185,VZN185200107

ARGENTINA SPEC

81139COVER, HEADLAMP SOCKET

main90075-65005×2iKZN185,RZN185,VZN185199511-199807

main90075-65012×2iKZN185,RZN18#,VZN18#199807

81150HEADLAMP ASSY, LH

main81150-35210iKZN185,RZN185,VZN185199511-199609

main81150-35211iKZN185,RZN185,VZN185199609-199807

main81150-35300iKZN185,RZN18#,VZN18#199807

81153BBEARING, HEADLAMP

main81128-22630×6iKZN185,RZN18#,VZN18#199511

81171AUNIT, HEADLAMP, LH

main81170-35210iKZN185,RZN185,VZN185199511-199807

main81170-35300iKZN185,RZN18#,VZN18#199807

main81170-35390iKZN185,RZN185,VZN185200107

ARGENTINA SPEC

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007510010

main90075-10010

9011906807

main90119-06807

9017906216

main90179-06216

9018906111

main90189-06111

15 parts on this diagram · 3 diagrams in section
