EPC Data

SEAT & SEAT TRACK

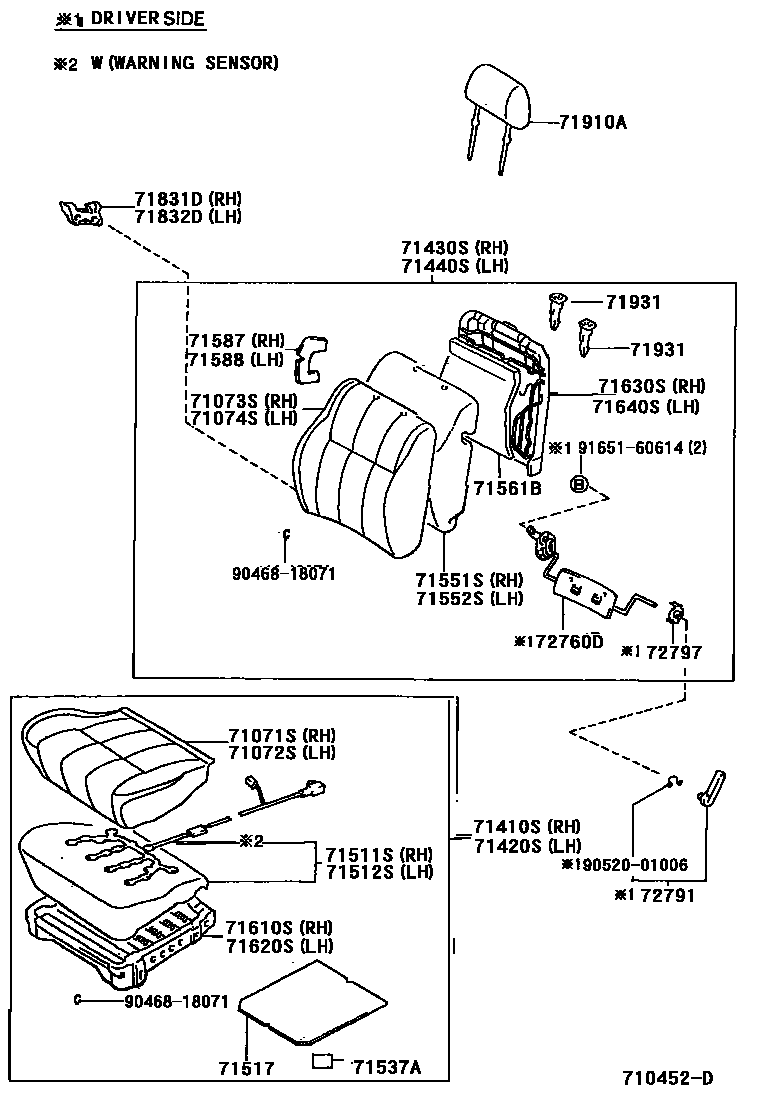

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-35540-B0i199511-199608
MOONMIST,TRIM1#
sub71071-3D440
main71071-35540-B0i199511-199608
3RD SEAT=FIXED TYPE,MOONMIST,TRIM1#
sub71071-3D440
main71071-35540-E0i199511-199608
MEDIUM OAK,TRIM4#
sub71071-3D440
main71071-35540-E0i199511-199608
3RD SEAT=FIXED TYPE,MEDIUM OAK,TRIM4#
sub71071-3D440
main71071-35550-B0i199511-199608
SPORT SEAT(YH**),MOON MIST,TRIM1#
sub71071-3D450
main71071-35550-E0i199511-199608
SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
sub71071-3D450
main71071-35670-E0i199511-199608
LEATHER SPORT SEAT(LH**/LK**),MEDIUM OAK,TRIM4#
sub71071-3D460
main71071-3D440-B0i199608-199708
3RD SEAT=FIXED TYPE,MOONMIST,TRIM1#
sub71071-3D740
main71071-3D440-B0i199608-199708
MOONMIST,TRIM1#
sub71071-3D740
main71071-3D440-E0i199608-199708
MEDIUM OAK,TRIM4#
sub71071-3D740
main71071-3D440-E0i199608-199708
3RD SEAT=FIXED TYPE,MEDIUM OAK,TRIM4#
sub71071-3D740
main71071-3D450-B0i199608-199708
SPORT SEAT(YH**),MOON MIST,TRIM1#
main71071-3D450-E0i199608-199708
SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71071-3D460-E0i199608-199708
LEATHER SPORT SEAT(LH**/LK**),MEDIUM OAK,TRIM4#
sub71071-3D750
main71071-3D550-B1i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
sub71071-3D551
main71071-3D550-E1i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
sub71071-3D551
main71071-3D720-B1i199708-199807
SPORT SEAT(YH**),MOON MIST,TRIM1#
main71071-3D720-E1i199708-199807
SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71071-3D740-B0i199708-199807
MOONMIST,TRIM1#
main71071-3D740-E0i199708-199807
MEDIUM OAK,TRIM4#
main71071-3D750-E0i199708-200008
LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MEDIUM OAK,TRIM4#
main71071-3D800-B1i199807-200008
MOONMIST,TRIM1#
main71071-3D800-E1i199807-200008
MEDIUM OAK,TRIM4#
main71071-3D810-B0i199807-200008
MOONMIST,TRIM1#
main71071-3D810-E0i199807-200008
MEDIUM OAK,TRIM4#
main71071-3D820-B1i199807-200008
SPORT SEAT(FG**),MOONMIST,TRIM1#
main71071-3D820-E0i199807-200008
SPORT SEAT(FG**),MEDIUM OAK,TRIM4#
main71071-3G100-B1i200008
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
sub71071-3G101
main71071-3G100-E1i200008
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
sub71071-3G101
main71071-3G110-B0i200008-200107
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#,PLANT NO. A51-A54
sub71071-3G111
main71071-3G110-E0i200008-200107
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#,PLANT NO. A51-A54
sub71071-3G111
main71071-3G111-B1i200107
MEDIUM CHARCOAL,TRIM1#
sub71071-3G112
main71071-3G111-E1i200107
MEDIUM OAK,TRIM4#
sub71071-3G112
main71071-3G120-E0i200008
SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
main71071-3G130-B0i200008-200107
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#,PLANT NO. P11
sub71071-3G131
main71071-3G130-E0i200008-200107
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#,PLANT NO. P11
sub71071-3G131
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-35540-B0i199511-199608
MOONMIST,TRIM1#
sub71071-3D440
main71071-35540-B0i199511-199608
3RD SEAT=FIXED TYPE,MOONMIST,TRIM1#
sub71071-3D440
main71071-35540-E0i199511-199608
MEDIUM OAK,TRIM4#
sub71071-3D440
main71071-35540-E0i199511-199608
3RD SEAT=FIXED TYPE,MEDIUM OAK,TRIM4#
sub71071-3D440
main71071-35550-B0i199511-199608
SPORT SEAT(YH**),MOON MIST,TRIM1#
sub71071-3D450
main71071-35550-E0i199511-199608
SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
sub71071-3D450
main71071-35670-E0i199511-199608
LEATHER SPORT SEAT(LH**/LK**),MEDIUM OAK,TRIM4#
sub71071-3D460
main71071-3D440-B0i199608-199708
MOONMIST,TRIM1#
sub71071-3D740
main71071-3D440-B0i199608-199708
3RD SEAT=FIXED TYPE,MOONMIST,TRIM1#
sub71071-3D740
main71071-3D440-E0i199608-199708
MEDIUM OAK,TRIM4#
sub71071-3D740
main71071-3D440-E0i199608-199708
3RD SEAT=FIXED TYPE,MEDIUM OAK,TRIM4#
sub71071-3D740
main71071-3D450-B0i199608-199708
SPORT SEAT(YH**),MOON MIST,TRIM1#
main71071-3D450-E0i199608-199708
SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71071-3D460-E0i199608-199708
LEATHER SPORT SEAT(LH**/LK**),MEDIUM OAK,TRIM4#
sub71071-3D750
main71071-3D550-B1i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
sub71071-3D551
main71071-3D550-E1i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
sub71071-3D551
main71071-3D720-B1i199708-199807
SPORT SEAT(YH**),MOON MIST,TRIM1#
main71071-3D720-E1i199708-199807
SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71071-3D740-B0i199708-199807
MOONMIST,TRIM1#
main71071-3D740-E0i199708-199807
MEDIUM OAK,TRIM4#
main71071-3D750-E0i199708-200008
LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MEDIUM OAK,TRIM4#
main71071-3D800-B1i199807-200008
MOONMIST,TRIM1#
main71071-3D800-E1i199807-200008
MEDIUM OAK,TRIM4#
main71071-3D810-B0i199807-200008
MOONMIST,TRIM1#
main71071-3D810-E0i199807-200008
MEDIUM OAK,TRIM4#
main71071-3D820-B1i199807-200008
SPORT SEAT(FG**),MOONMIST,TRIM1#
main71071-3D820-E0i199807-200008
SPORT SEAT(FG**),MEDIUM OAK,TRIM4#
main71071-3G100-B1i200008
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
sub71071-3G101
main71071-3G100-E1i200008
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
sub71071-3G101
main71071-3G110-B0i200008-200107
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#,PLANT NO. A51-A54
sub71071-3G111
main71071-3G110-E0i200008-200107
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#,PLANT NO. A51-A54
sub71071-3G111
main71071-3G111-B1i200107
MEDIUM CHARCOAL,TRIM1#
sub71071-3G112
main71071-3G111-E1i200107
MEDIUM OAK,TRIM4#
sub71071-3G112
main71071-3G120-E0i200008
SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
main71071-3G130-B0i200008-200107
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#,PLANT NO. P11
sub71071-3G131
main71071-3G130-E0i200008-200107
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#,PLANT NO. P11
sub71071-3G131
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-3D420-B0i199511-199708
MOONMIST,TRIM1#
main71073-3D420-B0i199511-199708
3RD SEAT=FIXED TYPE,MOONMIST,TRIM1#
main71073-3D420-E0i199511-199708
MEDIUM OAK,TRIM4#
main71073-3D420-E0i199511-199708
3RD SEAT=FIXED TYPE,MEDIUM OAK,TRIM4#
main71073-3D440-B0i199511-199708
SPORT SEAT(YH**),MOON MIST,TRIM1#
main71073-3D440-E0i199511-199708
SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71073-3D450-E0i199511-199708
LEATHER SPORT SEAT(LH**/LK**),MEDIUM OAK,TRIM4#
main71073-3D740-B1i199708-199807
SPORT SEAT(YH**),MOON MIST,TRIM1#
main71073-3D740-E1i199708-199807
SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71073-3D750-B0i199708-199807
MOONMIST,TRIM1#
main71073-3D750-E0i199708-199807
MEDIUM OAK,TRIM4#
main71073-3D770-E0i199708-200008
LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MEDIUM OAK,TRIM4#
main71073-3D810-B1i199807-200008
MOONMIST,TRIM1#
main71073-3D810-B1i199807-200008
W(THIRD SEAT),MOONMIST,TRIM1#
main71073-3D810-E1i199807-200008
MEDIUM OAK,TRIM4#
main71073-3D810-E1i199807-200008
W(THIRD SEAT),MEDIUM OAK,TRIM4#
main71073-3D820-B0i199807-200008
MOONMIST,TRIM1#
main71073-3D820-E0i199807-200008
MEDIUM OAK,TRIM4#
main71073-3D840-B0i199807-200008
SPORT SEAT(FG**),MOONMIST,TRIM1#
main71073-3D840-E0i199807-200008
SPORT SEAT(FG**),MEDIUM OAK,TRIM4#
main71073-3G140-B0i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71073-3G140-E0i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71073-3G150-B0i200008
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71073-3G150-E0i200008
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
main71073-3G170-B0i200008-200107
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
sub71073-3G171
main71073-3G170-E0i200008-200107
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
sub71073-3G171
main71073-3G171-B1i200107
MEDIUM CHARCOAL,TRIM1#
main71073-3G171-E1i200107
MEDIUM OAK,TRIM4#
main71073-3G180-E0i200008
SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
main71073-3G370-B0i200010
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM17
sub71073-3G170
main71073-3G370-E0i200010
SEAT = TYPE B-*104,MEDIUM OAK,TRIM45
sub71073-3G170
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-3D420-B0i199511-199807
3RD SEAT=FIXED TYPE,MOONMIST,TRIM1#
main71073-3D420-B0i199511-199807
MOONMIST,TRIM1#
main71073-3D420-E0i199511-199807
3RD SEAT=FIXED TYPE,MEDIUM OAK,TRIM4#
main71073-3D420-E0i199511-199807
MEDIUM OAK,TRIM4#
main71073-3D800-B1i199807-200008
MOONMIST,TRIM1#
main71073-3D800-E1i199807-200008
MEDIUM OAK,TRIM4#
main71073-3G130-B0i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71073-3G130-E0i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71074-35340-B0i199511-199708
SPORT SEAT(YH**),MOON MIST,TRIM1#
sub71073-3D440
main71074-35340-E0i199511-199708
SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
sub71073-3D440
main71074-35350-E0i199511-199708
LEATHER SPORT SEAT(LH**/LK**),MEDIUM OAK,TRIM4#
sub71074-35400
main71074-35390-B1i199708-199807
SPORT SEAT(YH**),MOON MIST,TRIM1#
main71074-35390-E1i199708-199807
SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71074-35400-E0i199708-200008
LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MEDIUM OAK,TRIM4#
main71074-35430-B0i199807-200008
MOONMIST,TRIM1#
main71074-35430-E0i199807-200008
MEDIUM OAK,TRIM4#
main71074-35450-B0i199807-200008
SPORT SEAT(FG**),MOONMIST,TRIM1#
main71074-35450-E0i199807-200008
SPORT SEAT(FG**),MEDIUM OAK,TRIM4#
main71074-35510-B0i200008
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71074-35510-E0i200008
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
main71074-35520-B0i200008-200107
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
sub71074-35521
main71074-35520-E0i200008-200107
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
sub71074-35521
main71074-35521-B1i200107
MEDIUM CHARCOAL,TRIM1#
main71074-35521-E1i200107
MEDIUM OAK,TRIM4#
main71074-35540-E0i200008
SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
main71074-35580-B0i200010
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM17
sub71074-35520
main71074-35580-E0i200010
SEAT = TYPE B-*104,MEDIUM OAK,TRIM45
sub71074-35520
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-3D200-B0i199511-199807
***,3RD SEAT=FIXED TYPE,MOONMIST,TRIM1#
main71410-3D200-B0i199511-199807
***,MOONMIST,TRIM1#
main71410-3D200-E0i199511-199807
***,MEDIUM OAK,TRIM4#
main71410-3D200-E0i199511-199807
***,3RD SEAT=FIXED TYPE,MEDIUM OAK,TRIM4#
main71410-3D210-B0i199511-199708
***,SPORT SEAT(YH**),MOON MIST,TRIM1#
main71410-3D210-E0i199511-199708
***,SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71410-3D220-E0i199511-199807
***,LEATHER SPORT SEAT(LH**/LK**),MEDIUM OAK,TRIM4#
main71410-3D590-B1i199708-199807
***,SPORT SEAT(YH**),MOON MIST,TRIM1#
main71410-3D590-E1i199708-199807
***,SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71410-3D710-B1i199807-200008
***,SPORT SEAT(FG**) & W(THIRD SEAT),MOONMIST,TRIM1#
main71410-3D710-E0i199807-200008
***,SPORT SEAT(FG**) & W(THIRD SEAT),MEDIUM OAK,TRIM4#
main71420-35510-B1i199807-200008
***,MOONMIST,TRIM1#
main71420-35510-E1i199807-200008
***,(FS**),MEDIUM OAK,TRIM4#
main71420-35520-B0i199807-200008
***,(FH**),MOONMIST,TRIM1#
main71420-35520-E0i199807-200008
***,(FH**),MEDIUM OAK,TRIM4#
main71420-35530-B1i199807-200008
***,SPORT SEAT(FG**),MOONMIST,TRIM1#
main71420-35530-E0i199807-200008
***,SPORT SEAT(FG**),MEDIUM OAK,TRIM4#
main71420-35540-E0i199807-200008
***,LEATHER SPORT SEAT(LC**/LD**),MEDIUM OAK,TRIM4#
main71420-35600-B1i200008
***,SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71420-35600-E1i200008
***,SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71420-35610-B1i200008
***,SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71420-35610-E1i200008
***,SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
main71420-35620-B0i200008-200107
***,SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
sub71420-35621
main71420-35620-E0i200008-200107
***,SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
sub71420-35621
main71420-35621-B1i200107
***,MEDIUM CHARCOAL,TRIM1#
main71420-35621-E1i200107
***,MEDIUM OAK,TRIM4#
main71420-35630-E0i200008
***,SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-3D200-B0i199511-199807
***,3RD SEAT=FIXED TYPE,MOONMIST,TRIM1#
main71410-3D200-B0i199511-199807
***,MOONMIST,TRIM1#
main71410-3D200-E0i199511-199807
***,MEDIUM OAK,TRIM4#
main71410-3D200-E0i199511-199807
***,3RD SEAT=FIXED TYPE,MEDIUM OAK,TRIM4#
main71410-3D210-B0i199511-199708
***,SPORT SEAT(YH**),MOON MIST,TRIM1#
main71410-3D210-E0i199511-199708
***,SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71410-3D220-E0i199511-200008
***,LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MEDIUM OAK,TRIM4#
main71410-3D440-B1i200008
***,SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71410-3D440-E1i200008
***,SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71410-3D590-B1i199708-199807
***,SPORT SEAT(YH**),MOON MIST,TRIM1#
main71410-3D590-E1i199708-199807
***,SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71410-3D680-B1i199807-200008
***,(FS**),MOONMIST,TRIM1#
main71410-3D680-E1i199807-200008
***,(FS**),MEDIUM OAK,TRIM4#
main71410-3D700-B0i199807-200008
***,(FH**),MOONMIST,TRIM1#
main71410-3D700-E0i199807-200008
***,(FH**),MEDIUM OAK,TRIM4#
main71410-3D710-B1i199807-200008
***,SPORT SEAT(FG**),MOONMIST,TRIM1#
main71410-3D710-E0i199807-200008
***,SPORT SEAT(FG**),MEDIUM OAK,TRIM4#
main71410-3D880-B1i200008
***,SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71410-3D880-E1i200008
***,SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
main71410-3D890-B0i200008-200107
***,SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
sub71410-3D891
main71410-3D890-E0i200008-200107
***,SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
sub71410-3D891
main71410-3D891-B1i200107
***,MEDIUM CHARCOAL,TRIM1#
main71410-3D891-E1i200107
***,MEDIUM OAK,TRIM4#
main71410-3G010-E0i200008
***,SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
main71420-35530-B1i199807-200008
***,SPORT SEAT(FG**) & W(THIRD SEAT),MOONMIST,TRIM1#
main71420-35530-E0i199807-200008
***,SPORT SEAT(FG**) & W(THIRD SEAT),MEDIUM OAK,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-35030-B1i199708-199807
***,SPORT SEAT(YH**),MOON MIST,TRIM1#
main71040-35030-E1i199708-199807
***,SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71040-35060-B0i199708-199807
***,MOONMIST,TRIM1#
main71040-35060-E0i199708-199807
***,MEDIUM OAK,TRIM4#
main71040-35070-E0i199708-200008
***,LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MEDIUM OAK,TRIM4#
main71040-35100-B1i199807-200008
***,(FS**),MOONMIST,TRIM1#
main71040-35100-E1i199807-200008
***,(FS**),MEDIUM OAK,TRIM4#
main71040-35120-B0i199807-200008
***,MOONMIST,TRIM1#
main71040-35120-E0i199807-200008
***,MEDIUM OAK,TRIM4#
main71040-35140-B0i199807-200008
***,SPORT SEAT(FG**),MOONMIST,TRIM1#
main71040-35140-E0i199807-200008
***,SPORT SEAT(FG**),MEDIUM OAK,TRIM4#
main71430-3D720-B0i199511-199708
***,MOONMIST,TRIM1#
main71430-3D720-E0i199511-199708
***,MEDIUM OAK,TRIM4#
main71430-3D730-B0i199511-199708
***,SPORT SEAT(YH**),MOON MIST,TRIM1#
main71430-3D730-E0i199511-199708
***,SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71430-3D740-E0i199511-199708
***,LEATHER SPORT SEAT(LH**/LK**),MEDIUM OAK,TRIM4#
main71430-3D840-B0i200008
***,SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71430-3D840-E0i200008
***,SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71430-3D860-B0i200008
***,SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71430-3D860-E0i200008
***,SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
main71430-3G350-B0i200008-200107
***,SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
sub71430-3G351
main71430-3G350-E0i200008-200107
***,SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
sub71430-3G351
main71430-3G351-B1i200107
***,MEDIUM CHARCOAL,TRIM1#
main71430-3G351-E1i200107
***,MEDIUM OAK,TRIM4#
main71430-3G380-E0i200008
***,SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71040-35110-B2i199807-200008
***,(FS**),MOONMIST,TRIM1#
main71040-35110-E1i199807-200008
***,(FS**),MEDIUM OAK,TRIM4#
main71040-35130-B0i199807-200008
***,(FH**),MOONMIST,TRIM1#
main71040-35130-E0i199807-200008
***,(FH**),MEDIUM OAK,TRIM4#
main71040-35140-B0i199807-200008
***,SPORT SEAT(FG**),MOONMIST,TRIM1#
main71040-35140-E0i199807-200008
***,SPORT SEAT(FG**),MEDIUM OAK,TRIM4#
main71430-3D720-B0i199511-199807
***,3RD SEAT=FIXED TYPE,MOONMIST,TRIM1#
main71430-3D720-E0i199511-199807
***,3RD SEAT=FIXED TYPE,MEDIUM OAK,TRIM4#
main71430-3G360-B0i200008
***,SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
sub71430-3G360
main71430-3G360-E1i200008
***,SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
sub71430-3G360
main71430-3G370-B0i200008
***,SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71430-3G370-E0i200008
***,SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
main71440-35650-B0i199511-199708
***,SPORT SEAT(YH**),MOON MIST,TRIM1#
main71440-35650-E0i199511-199708
***,SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71440-35670-E0i199511-200008
***,LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MEDIUM OAK,TRIM4#
main71440-35740-B1i199708-199807
***,SPORT SEAT(YH**),MOON MIST,TRIM1#
main71440-35740-E1i199708-199807
***,SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71440-35770-B0i199807-200008
***,SPORT SEAT(FG**) & W(THIRD SEAT),MOONMIST,TRIM1#
main71440-35770-E0i199807-200008
***,SPORT SEAT(FG**) & W(THIRD SEAT),MEDIUM OAK,TRIM4#
main71440-35830-B0i200008-200107
***,SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
sub71440-35831
main71440-35830-E0i200008-200107
***,SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
sub71440-35831
main71440-35831-B1i200107
***,SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71440-35831-E1i200107
***,SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
main71440-35840-E0i200008
***,SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-35020i200008
LEATHER
main71501-35030i200008
W(WARNING SENSOR)
main71501-35040i200008
W(LUMBAR SUPPORT)
main71501-35050i199807-200008
main71501-35060i199807-200008
SPORT SEAT
main71511-35040i199511-199807
main71511-35050i199511-199807
LEATHER SPORT SEAT(LK**/LC**) OR SPORT SEAT(YH**/FG**)
main71511-35050i199511-199807
LEATHER SPORT SEAT(LH**/LD**)
main71511-35050i200008
SPORT SEAT
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71501-35010i200008
LEATHER
main71501-35050i199807-200008
main71501-35060i199807-200008
SPORT SEAT
main71511-35040i199511-199807
main71511-35050i199511-199807
LEATHER SPORT SEAT(LK**/LC**) OR SPORT SEAT(YH**/FG**)
main71511-35050i199511-199807
LEATHER SPORT SEAT(LH**/LD**)
main71511-35050i200008
SPORT SEAT
71517CLOTH, FRONT SEAT CUSHION UNDER
main71517-34060i199807-200008
550 X 420
main71517-35060i199511-199909
200 X 420
main71517-35060i199807-200008
71537APROTECTOR, FRONT SEAT CUSHION
main71537-35020i199807-200008
100X70
main71537-35030i199807
120X70
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71505-35010i200008
W(POWER SEAT)
main71551-35040i199511
main71551-35050i199511-200008
LEATHER SPORT SEAT(LK**/LC**) OR SPORT SEAT(YH**/FG**)
main71551-35050i199511-200008
LEATHER SPORT SEAT(LH**/LD**)
main71551-35050i200009
W(LUMBAR SUPPORT)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71505-35010i200008
W(POWER SEAT)
main71551-35040i199511
main71551-35050i199511
LEATHER SPORT SEAT(LK**/LC**) OR SPORT SEAT(YH**/FG**)
main71551-35050i200008
W(LUMBAR SUPPORT)
main71551-35050i199511-200008
LEATHER SPORT SEAT(LH**/LD**)
71561BPAD, FRONT SEATBACK, UPPER
main71561-35100i199807-200009
PLANT NO. A51-A54
main71561-35110i199807-200009
PLANT NO. P11
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-60080i199612
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
main71588-60030i199612
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-35060i199511-199708
main71610-35110i199708
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-35060i199511-199708
main71610-35110i199708
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-35110i199511
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-35100i199511-200008
LEATHER SPORT SEAT(LH**/LD**)
main71630-35100i199511
LEATHER SPORT SEAT(LK**/LC**) OR SPORT SEAT(YH**/FG**)
main71630-35100i200008
SPORT SEAT
main71630-35110i199511
71831DCOVER, FRONT SEAT HINGE, RH
main71831-35050i199511
71832DCOVER, FRONT SEAT HINGE, LH
main71832-35050i199511
71910AHEADREST ASSY, FRONT SEAT
main71910-35250-B0i199511-199807
MOONMIST,TRIM1#
main71910-35250-B0i199511-199807
3RD SEAT=FIXED TYPE,MOONMIST,TRIM1#
main71910-35250-E0i199511-199807
3RD SEAT=FIXED TYPE,MEDIUM OAK,TRIM4#
main71910-35250-E0i199511-199807
MEDIUM OAK,TRIM4#
main71910-35260-B0i199511-199807
SPORT SEAT(YH**),MOON MIST,TRIM1#
main71910-35260-E0i199511-199807
SPORT SEAT(YH**),MEDIUM OAK,TRIM4#
main71910-35270-E0i199511-199708
LEATHER SPORT SEAT(LH**/LK**),MEDIUM OAK,TRIM4#
sub71910-35450
main71910-35450-E0i200008
SEAT = TYPE A-*104,MEDIUM OAK,TRIM4#
main71910-35450-E0i199708
LEATHER SPORT SEAT(LC**/LD**/LH**/LK**),MEDIUM OAK,TRIM4#
main71910-35470-B1i199807-200008
(FS**),MOONMIST,TRIM1#
main71910-35470-E1i199807-200008
(FS**),MEDIUM OAK,TRIM4#
main71910-35480-B3i199807-200008
(FH**),MOONMIST,TRIM1#
main71910-35480-E1i199807-200008
(FH**),MEDIUM OAK,TRIM4#
main71910-35490-B3i199807-200008
SPORT SEAT(FG**),MOONMIST,TRIM1#
main71910-35490-E1i199807-200008
SPORT SEAT(FG**),MEDIUM OAK,TRIM4#
main71910-35540-B0i200008
SEAT = TYPE D-*104,MEDIUM CHARCOAL,TRIM1#
main71910-35540-E0i200008
SEAT = TYPE D-*104,MEDIUM OAK,TRIM4#
main71910-35550-B0i200008
SEAT = TYPE C-*104,MEDIUM CHARCOAL,TRIM1#
main71910-35550-E0i200008
SEAT = TYPE C-*104,MEDIUM OAK,TRIM4#
main71910-35560-B0i200008
SEAT = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#
main71910-35560-E0i200008
SEAT = TYPE B-*104,MEDIUM OAK,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-13030-B0i200008
W(LOCK),MD.CHARCOAL,TRIM1#
sub71930-13030
main71930-13030-B2i199708-200008
W(LOCK),BLUE GRAY,TRIM1#
sub71930-13030
main71930-13030-E0i199708
W(LOCK),MD.OAK,TRIM4#
sub71930-13030
main71930-32020-B2i199511-199708
W(LOCK),BLUE GRAY,TRIM1#
sub71930-32020
main71930-32020-E6i199511-199708
W(LOCK),MD.OAK,TRIM4#
sub71930-32020
main71931-12040-E8i199612
W/O(LOCK),OAK,TRIM4#
sub71931-12040
sub71931-10020
main71931-12040-P6i199612-200008
W/O(LOCK),BLUE GRAY,TRIM1#
sub71931-12040
sub71931-10020
main71931-12040-P9i200008
W/O(LOCK),MD.CHARCOAL,TRIM1#
sub71931-12040
sub71931-10020
main71931-32020-B2i199511-199612
W/O(LOCK),BLUE GRAY,TRIM1#
sub71931-32020
main71931-32020-E6i199511-199612
W/O(LOCK),MD.OAK,TRIM4#
sub71931-32020
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-35020i199511-200008
LEATHER SPORT SEAT(LH**/LD**)
main72760-35020i199511
main72797-50010i199511-199807
LEATHER SPORT SEAT(LK**) OR SPORT SEAT(YH**)
72791LEVER, LUMBAR SUPPORT
main72791-12010-B3i199511-200008
LEATHER SPORT SEAT(LK**/LC**) OR SPORT SEAT(YH**/FG**),MD.MOON MIST,TRIM1#
sub72791-12010
main72791-12010-B9i200008
LEATHER SPORT SEAT(LK**/LC**) OR SPORT SEAT(YH**/FG**),MD.CHARCOAL,TRIM1#
sub72791-12010
main72791-12010-B9i200008
MD.CHARCOAL,TRIM1#
sub72791-12010
main72791-12010-E2i199511
LEATHER SPORT SEAT(LK**/LC**) OR SPORT SEAT(YH**/FG**),MD.OAK,TRIM4#
sub72791-12010
main72791-12010-E2i199511-200008
LEATHER SPORT SEAT(LH**/LD**),MD.OAK,TRIM4#
sub72791-12010
main72791-12010-E2i200008
MD.OAK,TRIM4#
sub72791-12010
72797SPACER, LUMBAR SUPPORT
main72760-35020i199511-199807
LEATHER SPORT SEAT(LH**)
main72797-50010i199511
LEATHER SPORT SEAT(LK**/LC**) OR SPORT SEAT(YH**/FG**)
9046818071
main90468-18071
9052001006
main90520-01006
9165160614
main91651-60614

31 parts on this diagram · 4 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
