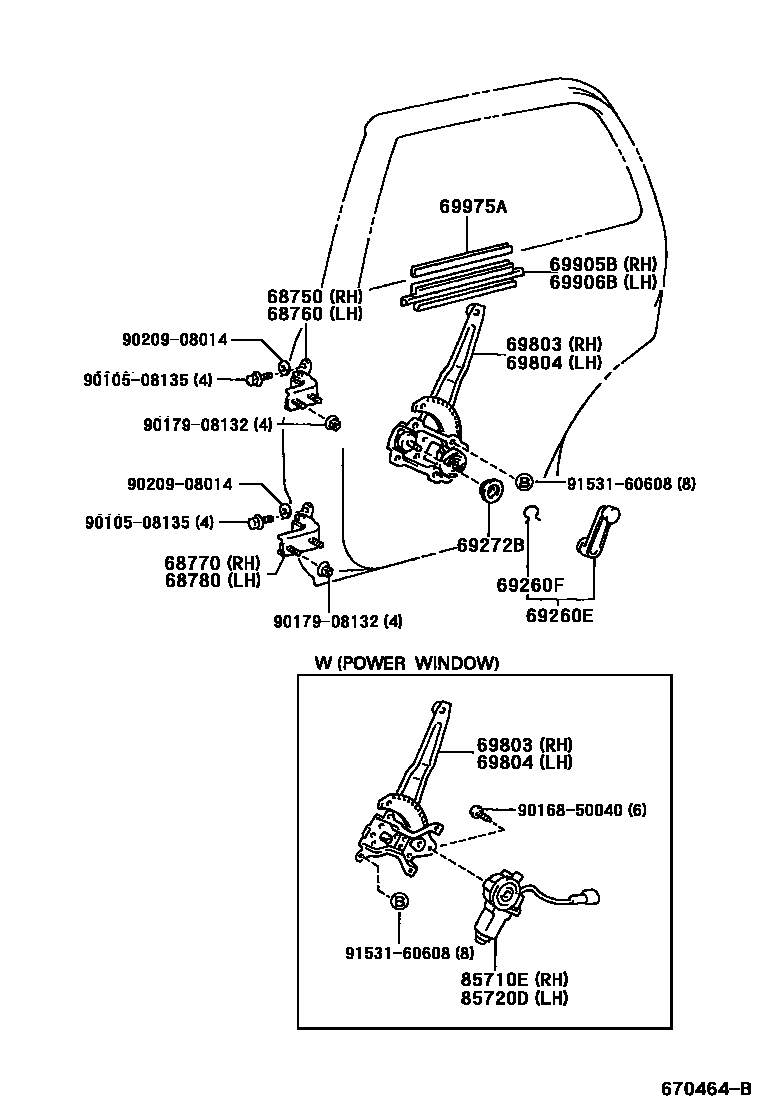

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32060iKZN185,RZN18#,VZN18#199511

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32060iKZN185,RZN18#,VZN18#199511

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-35030iKZN185,RZN18#,VZN18#199511

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-35030iKZN185,RZN18#,VZN18#199511

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-89104-B1×2iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

main69260-89104-B4×2iKZN185,RZN18#,VZN185200008

DK.CHARCOAL,TRIM1#

main69260-89104-E3×2iKZN185,RZN185,VZN185199511-199807

OAK,TRIM4#

main69260-89104-E4×2iKZN185,RZN18#,VZN185199807

SANDAL WOOD,TRIM4#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iKZN185,RZN18#,VZN185199511

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iKZN185,RZN185,VZN185199511-199812

main69285-22010-08×2iKZN185,RZN18#,VZN185199812-200211

NATURAL WHITE,TRIM1#,4#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-35020iKZN185,RZN18#,VZN18#199807

W(POWER WINDOW)

main69803-35030iKZN185,RZN18#,VZN185199511

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-35020iKZN185,VZN185199511-199807

W(POWER WINDOW)

main69804-35030iKZN185,RZN18#,VZN185199511

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-35010iKZN185,RZN18#,VZN18#199511

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-35010iKZN185,RZN18#,VZN18#199511

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010×2iKZN185,RZN185,VZN185199601-199907

main69975-16020×2iKZN185,RZN185,VZN185199511-199601

main69975-35010×2iKZN185,RZN185,VZN185199907-200008

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35110iKZN185,RZN18#,VZN18#199511

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35080iKZN185,RZN185,VZN185199511-199809

9010508135

main90105-08135

9016850040

main90168-50040

9017908132

main90179-08132

9020908014

main90209-08014

9153160608

main91531-60608

19 parts on this diagram · 1 diagram in section
