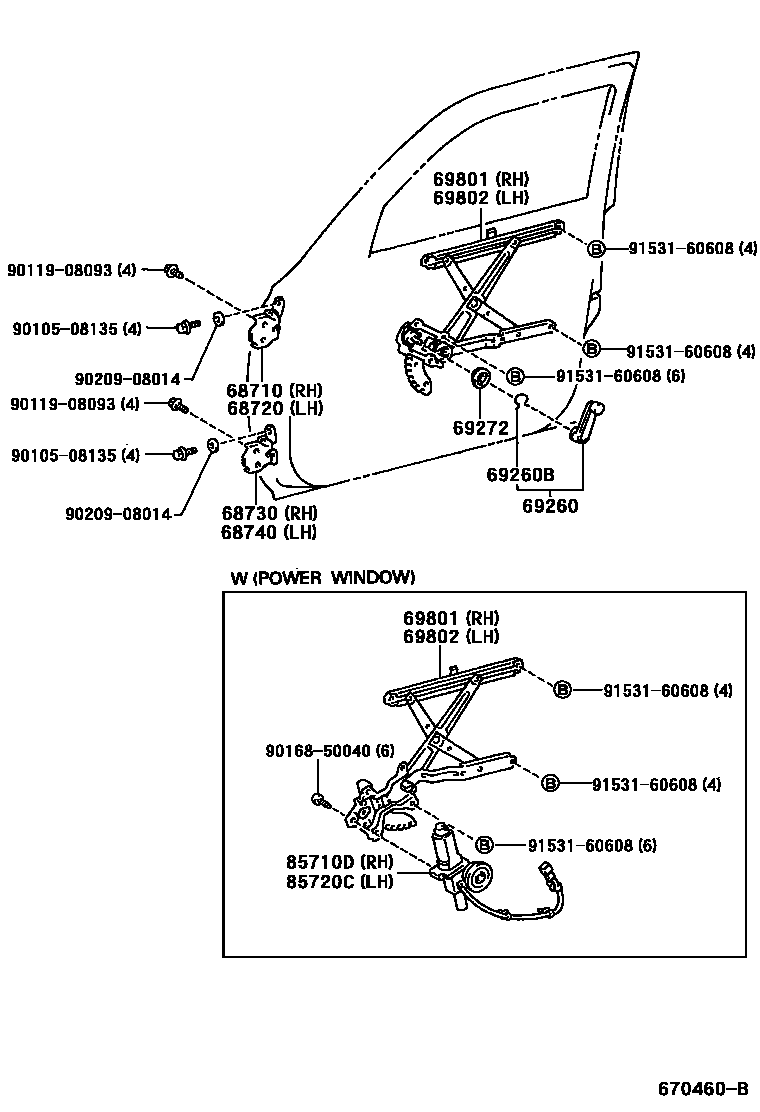

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-04010iKZN185,RZN18#,VZN18#199511

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-04010iKZN185,RZN18#,VZN18#199511

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-04010iKZN185,RZN18#,VZN18#199511

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-04010iKZN185,RZN18#,VZN18#199511

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B1iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub69260-89104

main69260-89104-B4iKZN185,RZN18#,VZN185200008

DK.CHARCOAL,TRIM1#

sub69260-89104

main69260-89104-E3iKZN185,RZN185,VZN185199511-199807

OAK,TRIM4#

sub69260-89104

main69260-89104-E4iKZN185,RZN18#,VZN185199807

SANDAL WOOD,TRIM4#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iKZN185,RZN18#,VZN185199511

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-20020iKZN185,RZN185,VZN185199511-199812

sub69285-22010

main69285-22010-08iKZN185,RZN18#,VZN185199812-200211

NATURAL WHITE,TRIM1#,4#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-35090iKZN185,VZN185199511-199608

W(POWER WINDOW)

sub69801-35091

main69801-35091iKZN185,RZN18#,VZN18#199608

W(POWER WINDOW)

main69801-35120iKZN185,RZN18#,VZN185199511

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-35100iKZN185,VZN185199511-199608

W(POWER WINDOW)

sub69802-35101

main69802-35101iKZN185,RZN18#,VZN18#199608

W(POWER WINDOW)

main69802-35120iKZN185,RZN18#,VZN185199511

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35100iKZN185,VZN185199511-199807

main85710-35150iKZN185,RZN18#,VZN18#199807

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-35050iKZN185,VZN185199511-199807

main85720-35110iKZN185,RZN18#,VZN18#199807

9010508135

main90105-08135

9011908093

main90119-08093

9016850040

main90168-50040

9020908014

main90209-08014

9153160608

main91531-60608

16 parts on this diagram · 1 diagram in section
