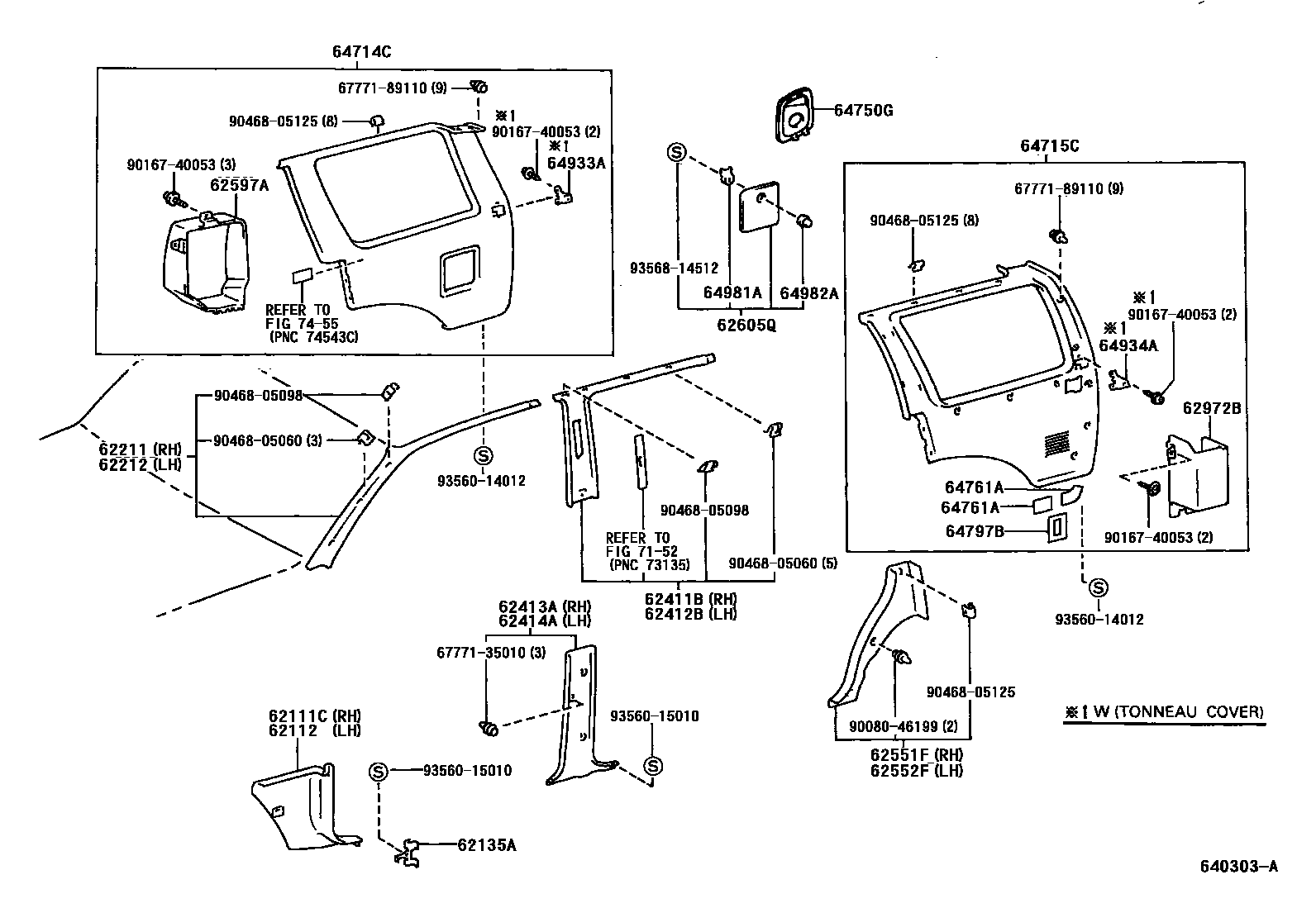

INSIDE TRIM BOARD

0001 1 0002 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-35010-B0iKZN185,RZN185,VZN185199511-199805

MD.MOON MIST,TRIM1#

sub62111-35030

main62111-35010-E0iKZN185,RZN185,VZN185199511-199805

OAK,TRIM4#

sub62111-35030

main62111-35030-B0iKZN185,RZN185,VZN185199805-200008

MD.MOON MIST,TRIM1#

sub62111-35030

main62111-35030-B1iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

sub62111-35030

main62111-35030-E0iKZN185,RZN18#,VZN18#199805

OAK,TRIM4#

sub62111-35030

62112BOARD, COWL SIDE TRIM, LH

main62112-35020-B0iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub62112-35010

main62112-35020-B1iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

sub62112-35010

main62112-35020-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

sub62112-35010

62135ARETAINER, COWL SIDE COVER

main62135-35010iKZN185,RZN18#,VZN18#199511

62211GARNISH, FRONT PILLAR, RH

main62211-35040-B0iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub62211-35040

main62211-35040-B2iKZN185,RZN18#,VZN18#200008

MD.CHARCOAL,TRIM1#

sub62211-35040

main62211-35040-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

sub62211-35040

62212GARNISH, FRONT PILLAR, LH

main62212-35040-B0iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub62212-35040

main62212-35040-B1iKZN185,RZN18#,VZN18#200008

MD.CHARCOAL,TRIM1#

sub62212-35040

main62212-35040-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

sub62212-35040

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-35010-B0iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub62411-35010

main62411-35010-B1iKZN185,RZN18#,VZN18#200008

MD.CHARCOAL,TRIM1#

sub62411-35010

main62411-35010-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

sub62411-35010

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-35010-B0iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub62412-35010

main62412-35010-B1iKZN185,RZN18#,VZN18#200008

MD.CHARCOAL,TRIM1#

sub62412-35010

main62412-35010-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

sub62412-35010

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-35010-B0iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub62413-35010

main62413-35010-B1iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

sub62413-35010

main62413-35010-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

sub62413-35010

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-35010-B0iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub62414-35010

main62414-35010-B1iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

sub62414-35010

main62414-35010-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

sub62414-35010

62551FGARNISH, REAR SEAT SIDE, RH

main62551-35010-B0iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub62551-35010

main62551-35010-B1iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

sub62551-35010

main62551-35010-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

sub62551-35010

62552FGARNISH, REAR SEAT SIDE, LH

main62552-35010-B0iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub62552-35010

main62552-35010-B1iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

sub62552-35010

main62552-35010-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

sub62552-35010

62597ABOX, SIDE TRIM

main62597-35010iKZN185,RZN185,VZN185199511-199807

62605QLID SUB-ASSY, QUARTER TRIM, RH

main62605-35010-B0iKZN185,RZN185,VZN185199511-199807

MD.MOON MIST,TRIM1#

sub62605-35010

main62605-35010-E0iKZN185,RZN185,VZN185199511-199807

OAK,TRIM4#

sub62605-35010

main62605-35020-B0iKZN185,RZN185,VZN185199807-200008

MOON MIST,TRIM1#

sub62605-35020

main62605-35020-B1iKZN185,RZN18#,VZN18#200008

MD.CHARCOAL,TRIM1#

sub62605-35020

main62605-35020-E0iKZN185,RZN18#,VZN18#199807

MD.OAK,TRIM4#

sub62605-35020

62972BDUCT, ROOF SIDE AIR, NO.1 LH

main62971-35010iKZN185,RZN18#,VZN18#199511

main62971-35020iKZN185,RZN18#,VZN18#199511

W(3RD SEAT)

64714CCOVER, DECK SIDE TRIM, RH

main64714-35120-B0iKZN185,RZN185,VZN185199511-199708

MD.MOON MIST,TRIM1#

main64714-35120-E0iKZN185,RZN185,VZN185199511-199708

OAK,TRIM4#

main64714-35130-B0iKZN185,RZN185,VZN185199511-199708

W(THIRD SEAT),MD.MOON MIST,TRIM1#

main64714-35130-E0iKZN185,RZN185,VZN185199511-199708

W(THIRD SEAT),OAK,TRIM4#

main64714-35140-B0iKZN185,RZN185,VZN185199511-199708

W(TONNEAU COVER),MD.MOON MIST,TRIM1#

main64714-35140-E0iKZN185,RZN185,VZN185199511-199708

W(TONNEAU COVER),OAK,TRIM4#

main64714-35150-B0iKZN185,RZN185,VZN185199708-199807

MD.MOON MIST,TRIM1#

main64714-35150-E0iKZN185,RZN185,VZN185199708-199807

OAK,TRIM4#

main64714-35160-B0iKZN185,RZN185,VZN185199708-199807

W(THIRD SEAT),MD.MOON MIST,TRIM1#

main64714-35160-E0iKZN185,RZN185,VZN185199708-199807

W(THIRD SEAT),OAK,TRIM4#

main64714-35170-B0iKZN185,RZN185,VZN185199708-199807

W(TONNEAU COVER),MD.MOON MIST,TRIM1#

main64714-35170-E0iKZN185,RZN185,VZN185199708-199807

W(TONNEAU COVER),OAK,TRIM4#

main64730-35010-B0iKZN185,RZN185,VZN185199807-200008

MOON MIST,TRIM1#

main64730-35010-B1iKZN185,RZN18#,VZN18#200008

MD.CHARCOAL,TRIM1#

main64730-35010-E0iKZN185,RZN18#,VZN18#199807

MD.OAK,TRIM4#

main64730-35020-B0iKZN185,RZN185,VZN185199807-200008

W(THIRD SEAT),MOON MIST,TRIM1#

main64730-35020-B1iKZN185,RZN18#,VZN18#200008

W(THIRD SEAT),MD.CHARCOAL,TRIM1#

main64730-35020-E0iKZN185,RZN18#,VZN18#199807

W(THIRD SEAT),MD.OAK,TRIM4#

main64730-35030-B0iKZN185,RZN185,VZN185199807-200008

W(TONNEAU COVER),MOON MIST,TRIM1#

main64730-35030-B1iKZN185,RZN18#,VZN18#200008

W(TONNEAU COVER),MD.CHARCOAL,TRIM1#

main64730-35030-E0iKZN185,RZN18#,VZN18#199807

W(TONNEAU COVER),MD.OAK,TRIM4#

64715CCOVER, DECK SIDE TRIM, LH

main64715-35080-B0iKZN185,RZN185,VZN185199511-199807

MD.MOON MIST,TRIM1#

main64715-35080-E0iKZN185,RZN185,VZN185199511-199807

OAK,TRIM4#

main64715-35090-B0iKZN185,RZN185,VZN185199511-199807

W(3RD SEAT),MD.MOON MIST,TRIM1#

main64715-35090-E0iKZN185,RZN185,VZN185199511-199807

W(3RD SEAT),OAK,TRIM4#

main64715-35100-B0iKZN185,RZN185,VZN185199511-199807

W(TONNEAU COVER),MD.MOON MIST,TRIM1#

main64715-35100-E0iKZN185,RZN185,VZN185199511-199807

W(TONNEAU COVER),OAK,TRIM4#

main64740-35010-B0iKZN185,RZN185,VZN185199807-200008

MOON MIST,TRIM1#

main64740-35010-B1iKZN185,RZN18#,VZN18#200008

MD.CHARCOAL,TRIM1#

main64740-35010-E0iKZN185,RZN18#,VZN18#199807

MD.OAK,TRIM4#

main64740-35020-B0iKZN185,RZN185,VZN185199807-200008

W(THIRD SEAT),MOON MIST,TRIM1#

main64740-35020-B1iKZN185,RZN18#,VZN18#200008

W(THIRD SEAT),MD.CHARCOAL,TRIM1#

main64740-35020-E0iKZN185,RZN18#,VZN18#199807

W(THIRD SEAT),MD.OAK,TRIM4#

main64740-35030-B0iKZN185,RZN185,VZN185199807-200008

W(TONNEAU COVER),MOON MIST,TRIM1#

main64740-35030-B1iKZN185,RZN18#,VZN18#200008

W(TONNEAU COVER),MD.CHARCOAL,TRIM1#

main64740-35030-E0iKZN185,RZN18#,VZN18#199807

W(TONNEAU COVER),MD.OAK,TRIM4#

64750GGARNISH ASSY, DECK SIDE, REAR RH

main64750-35020-B0iKZN185,RZN185,VZN185199708-199807

MD.MOON MIST,TRIM1#

sub64750-35020

main64750-35020-B1iKZN185,RZN185,VZN185199807-200008

MOON MIST,TRIM1#

sub64750-35020

main64750-35020-B2iKZN185,RZN18#,VZN18#200008

MD.CHARCOAL,TRIM1#

sub64750-35020

main64750-35020-E0iKZN185,RZN185,VZN185199708-199807

OAK,TRIM4#

sub64750-35020

main64750-35020-E1iKZN185,RZN18#,VZN18#199807

MD.OAK,TRIM4#

sub64750-35020

64761ASILENCER, DECK SIDE TRIM, NO.1

main64761-35010iKZN185,RZN18#,VZN18#199511

64797BSILENCER, DECK SIDE TRIM, NO.2

main64797-35010iKZN185,RZN18#,VZN18#199511

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-35010iKZN185,RZN18#,VZN18#199511

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-35010iKZN185,RZN18#,VZN18#199511

64981ASTOPPER, QUARTER TRIM LID

main64981-16021iKZN185,RZN185,VZN185199511-199807

64982AKNOB, QUARTER TRIM LID

main64982-16020-B2iKZN185,RZN185,VZN185199511-199807

MD.MOON MIST,TRIM1#

sub64982-16020

main64982-16020-E4iKZN185,RZN185,VZN185199511-199807

OAK,TRIM4#

sub64982-16020

7152

7455

6777135010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-35010

6777189110WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-89110

9008046199

main90080-46199

9016740053

main90167-40053

9046805060

main90468-05060

9046805098

main90468-05098

9046805125

main90468-05125

9356014012

main93560-14012

9356015010

main93560-15010

9356814512

main93568-14512

35 parts on this diagram · 2 diagrams in section
