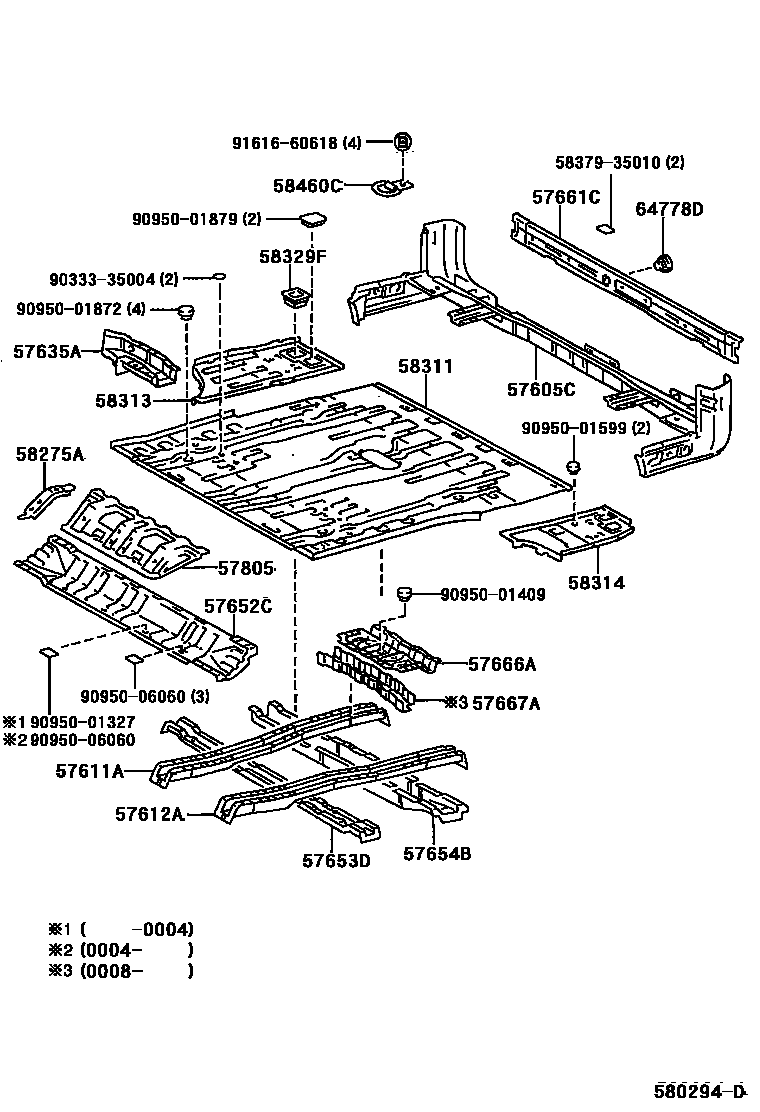

REAR FLOOR PANEL & REAR FLOOR MEMBER

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-35030iKZN185,RZN185,VZN185199511-199906

main57605-35040iKZN185,VZN185199511-199906

W(MOON ROOF)

main57605-35050iKZN185,RZN185,VZN185199511-199906

W(THIRD SEAT)

main57605-35060iKZN185,VZN185199511-199906

W(THIRD SEAT & MOON ROOF)

main57605-35220iKZN185,RZN18#,VZN18#199906

main57605-35230iKZN185,VZN18#199906

W(MOON ROOF)

main57605-35240iKZN185,RZN18#,VZN18#199906

W(THIRD SEAT)

main57605-35250iKZN185,VZN18#199906

W(THIRD SEAT & MOON ROOF)

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-35010iKZN185,RZN18#,VZN18#199511

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-35010iKZN185,RZN185,VZN185199511-200004

sub57612-35011

main57612-35011iKZN185,RZN18#,VZN18#200004

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57608-35010iKZN185,RZN18#,VZN18#199901

W(3RD SEAT)

main57635-35010iKZN185,RZN18#,VZN18#199511

main57635-35020iKZN185,RZN185,VZN185199511-199901

W(3RD SEAT)

sub57608-35010

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-35010iKZN185,RZN185,VZN185199511-200004

sub57652-35011

sub90950-06060

main57652-35011iKZN185,RZN18#,VZN18#200004

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-35030iKZN185,RZN185,VZN185199511-200004

sub57653-35031

main57653-35031iKZN185,RZN185,VZN185200004-200008

main57653-35100iKZN185,RZN18#,VZN18#200008

main57653-35110iKZN185,RZN18#,VZN18#200008

W(3RD SEAT)

57654BMEMBER, REAR FLOOR CROSS, NO.3

main57654-35010iKZN185,RZN185,VZN185199511-200008

main57654-35020iKZN185,RZN185,VZN185199511-200008

W(3RD SEAT)

main57654-35030iKZN185,RZN18#,VZN18#200008

main57654-35040iKZN185,RZN18#,VZN18#200008

W(3RD SEAT)

57661CMEMBER, REAR FLOOR REAR CROSS, OUTER

main57661-35010iKZN185,RZN18#,VZN18#199511

57666AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.3

main57666-35010iKZN185,RZN18#,VZN18#199511

57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4

main57667-35010iKZN185,RZN18#,VZN18#200008

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-35010iKZN185,RZN185,VZN185199511-199803

sub57805-35011

main57805-35011iKZN185,RZN18#,VZN18#199803

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-35010iKZN185,RZN18#,VZN18#199511

58311PAN, REAR FLOOR

main58311-35040iKZN185,RZN18#,VZN18#199511

main58311-35070iKZN185,RZN18#,VZN18#199511

W(3RD SEAT)

58313PANEL, REAR FLOOR SIDE, RH

main58313-35010iKZN185,RZN18#,VZN18#199511

main58313-35020iKZN185,RZN18#,VZN18#199511

W(3RD SEAT)

58314PANEL, REAR FLOOR SIDE, LH

main58314-35010iKZN185,RZN18#,VZN18#199511

main58314-35020iKZN185,RZN18#,VZN18#199511

W(3RD SEAT)

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-35010iKZN185,RZN18#,VZN18#199511

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-35010iKZN185,RZN185,VZN185199511-199512

sub58460-35011

main58460-35011iKZN185,RZN185,VZN185199512-199902

sub58460-35012

main58460-35012iKZN185,RZN18#,VZN18#199902

64778DPROTECTOR, SPARE WHEEL

main64778-35010iKZN185,RZN18#,VZN18#199511

5837935010BRACKET, LUGGAGE DOOR LOCK STRIKER, SUB

main58379-35010

9033335004

main90333-35004

9095001327

main90950-01327

9095001409

main90950-01409

9095001599

main90950-01599

9095001872

main90950-01872

9095001879

main90950-01879

9095006060

main90950-06060

9161660618

main91616-60618

27 parts on this diagram · 1 diagram in section
