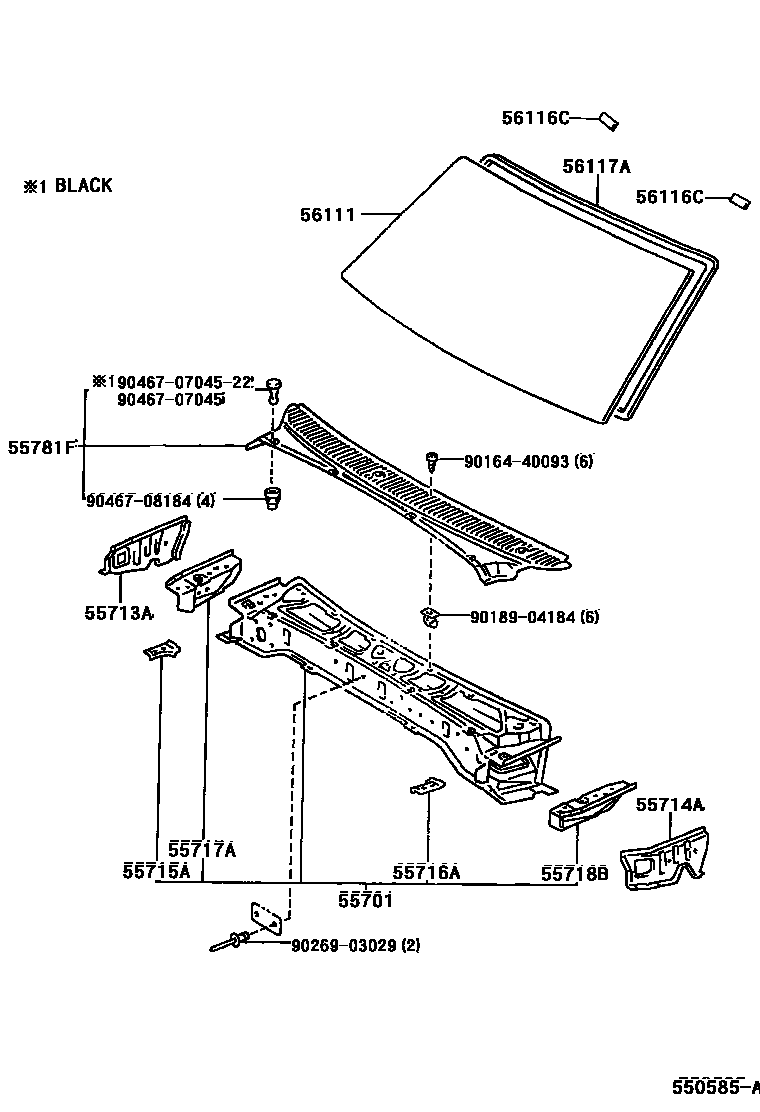

COWL PANEL & WINDSHIELD GLASS

55701PANEL SUB-ASSY, COWL

main55700-35180iKZN185199511-200008

main55700-35200iRZN185199511-199608

main55700-35210iVZN185199511-199608

main55700-35240iRZN18#199608

main55700-35250iVZN18#199608

main55700-35540iKZN185200008

55713APANEL, COWL TOP SIDE, RH

main55713-35011iKZN185,RZN18#,VZN18#199511

55714APANEL, COWL TOP SIDE, LH

main55714-35011iKZN185,RZN18#,VZN18#199511

55715ABRACE, COWL TOP TO APRON, RH

main55715-35010iKZN185,RZN18#,VZN18#199511

55716ABRACE, COWL TOP TO APRON, LH

main55716-35010iKZN185,RZN18#,VZN18#199511

55717APANEL, COWL TOP SIDE, INNER RH

main55717-35900iKZN185,RZN18#,VZN18#199511

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-35900iKZN185,RZN18#,VZN18#199511

55781FLOUVER, COWL TOP VENTILATOR

main55708-35020iKZN185,RZN18#,VZN18#199511

56111GLASS, WINDSHIELD

main56111-0W220iKZN185,RZN185,VZN185199511-199807

*TL,T=4.76,GREEN,W(TOP SHADE)

main56111-35100iKZN185,VZN185199511-199807

*TL,T=4.76,BRONZE

main56111-35150iKZN185,RZN18#,VZN18#199807

*TL,T=4.76,GREEN

main56111-35160iKZN185,RZN18#,VZN18#200008

*TL,T=4.76,GREEN,W(TOP SHADE)

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56115-30100×2iKZN185199901-200008

main56116-35040×2iKZN185,RZN185,VZN185199511-199804

main56116-35050×2iKZN185,RZN18#,VZN18#199901

PLANT NO. P11

56117ADAM, WINDOW GLASS ADHESIVE

main56117-35020iKZN185,RZN185,VZN185199511-199907

L=604

main56117-35080iKZN185,RZN18#,VZN18#199907-200211

L=604

9016440093

main90164-40093

9018904184

main90189-04184

9026903029

main90269-03029

9046707045

main90467-07045

904670704522

main90467-0704522

9046708184

main90467-08184

17 parts on this diagram · 1 diagram in section
