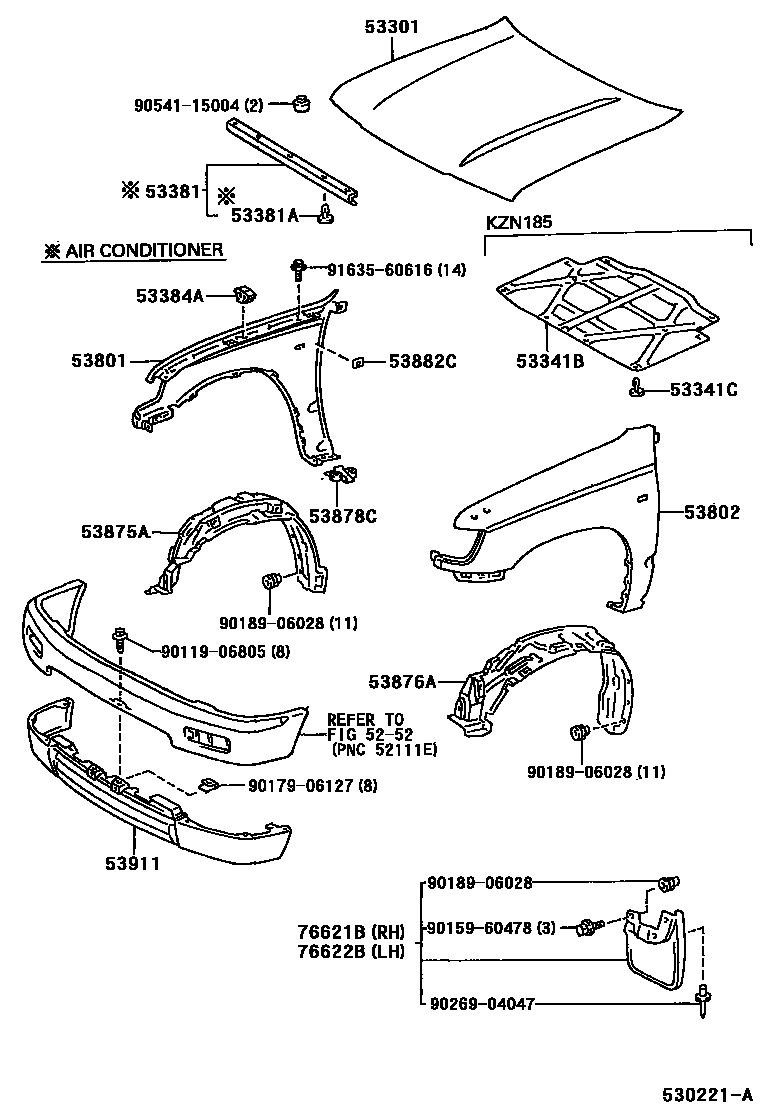

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

5252

53301HOOD SUB-ASSY

main53301-35040iKZN185,RZN18#,VZN18#199511-200211

main53301-35050iKZN185,RZN185,VZN18#200105-200106

SUV 50TH ANNIVERSARY PACKAGE 2001(CENTRAL AMERICA)

53341BINSULATOR, HOOD

main53341-35020iKZN185199511-199807

main53341-35021iKZN185199807-200003

main53341-35022iKZN185200003-200008

main53341-35032iKZN185,RZN185,VZN18#200105-200106

SUV 50TH ANNIVERSARY PACKAGE 2001(CENTRAL AMERICA)

53341CCLIP(FOR HOOD INSULATOR)

main90467-09006×10iKZN185199511-200008

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-35020iKZN185,RZN18#,VZN18#199511

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×5iKZN185,RZN18#,VZN18#199511

53384ABUMPER, FENDER TO HOOD

main53384-35010×2iKZN185,RZN18#,VZN18#199511

53801FENDER SUB-ASSY, FRONT RH

main53811-35080iKZN185,VZN185199910-199911

SPORTY VERSION(CENTRAL AMERICA)

sub53801-35550

main53811-35090iKZN185,RZN18#,VZN18#199511-200211

W(ANTENNA)

sub53801-35540

main53811-35120iKZN185,RZN18#,VZN18#199511-200211

53802FENDER SUB-ASSY, FRONT LH

main53812-35090iKZN185,VZN185199910-199911

SPORTY VERSION(CENTRAL AMERICA)

sub53802-35640

main53812-35100iKZN185,RZN18#,VZN18#199511-200211

sub53802-35630

53875ALINER, FRONT FENDER, RH

main53875-35020iKZN185,RZN185,VZN185199511-199807

main53875-35050iKZN185,RZN18#,VZN18#199807

53876ALINER, FRONT FENDER, LH

main53876-35010iKZN185,RZN185,VZN185199511-199807

main53876-35040iKZN185,RZN18#,VZN18#199807

53878CSPACER, FRONT FENDER

main53878-35020×2iKZN185,RZN18#,VZN18#199511

53882CSEAL, FRONT FENDER MAIN

main53882-16030×2iKZN185,RZN18#,VZN18#199910

53911PANEL, FRONT VALANCE

main53911-35120iKZN185,RZN185,VZN185199511-199807

NO PAINT REQ.

sub53911-35909

main53911-35300iKZN185,RZN18#,VZN18#199807-200211

NO PAINT REQ.

sub53911-35911

main53911-35350iKZN185,VZN185199910-199911

NO PAINT REQ.,SPORTY VERSION(CENTRAL AMERICA)

sub53911-35912

76621BMUDGUARD, FRONT BODY, RH

main76621-39395iKZN185,RZN18#,VZN18#199511

76622BMUDGUARD, FRONT BODY, LH

main76622-39395iKZN185,RZN18#,VZN18#199511

9011906805

main90119-06805

9015960478

main90159-60478

9017906127

main90179-06127

9018906028

main90189-06028

9026904047

main90269-04047

9054115004

main90541-15004

9163560616

main91635-60616

23 parts on this diagram · 3 diagrams in section
