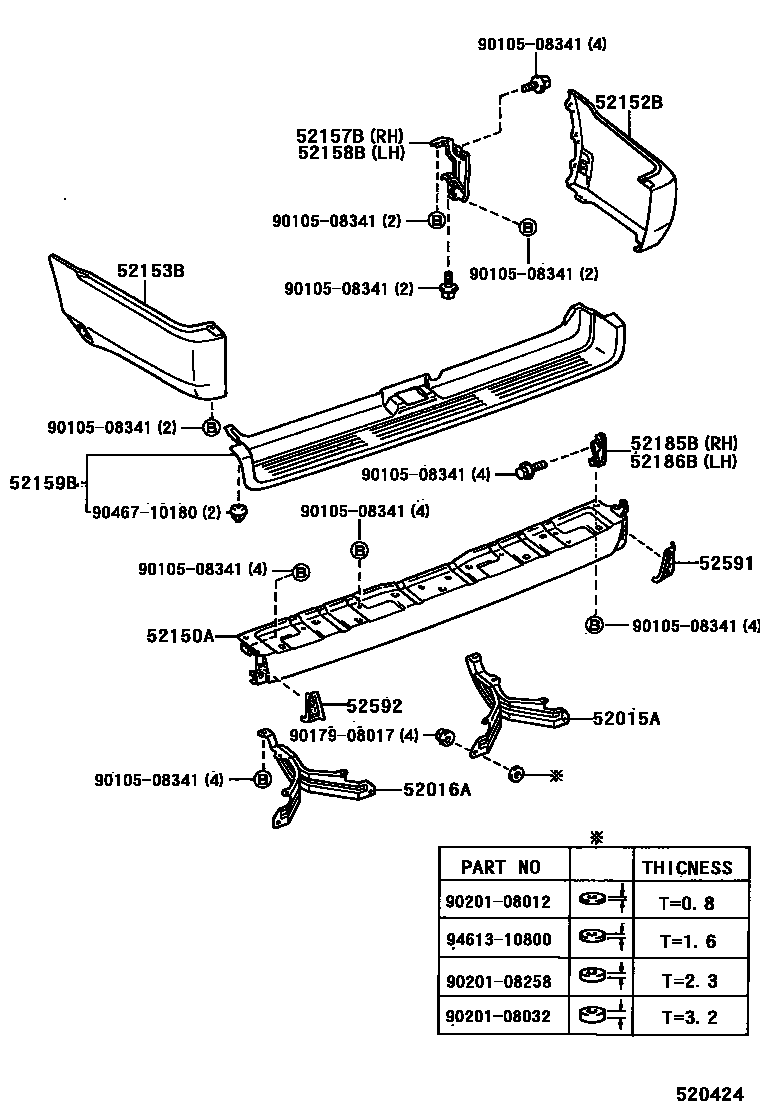

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52150ABUMPER ASSY, REAR
sub52105-35920
CHROME PLATED
SILVER ME.,KG0 ,K72 ,K73 ,1C0
GRAY ME.,KF8 ,KF9 ,KG1 ,KG2 ,KG5 ,KG6 ,KG7 ,KG9 ,1D2
CHAMPAGNE M.M.,KG4
CHROME PLATED
SPORTY VERSION(CENTRAL AMERICA)
52152BEXTENSION, REAR BUMPER, RH
sub52106-35051
sub52106-35150
W(CHROME PLATED BUMPER)
W(OVER FENDER & CHROME PLATED BUMPER)
GRAY ME.,KF8 ,KF9 ,KG1 ,KG2 ,KG5 ,KG6 ,KG7 ,KG9 ,1D2
sub52106-35901
SPORTY VERSION(CENTRAL AMERICA)
W(OVER FENDER)
52153BEXTENSION, REAR BUMPER, LH
sub52107-35041
sub52107-35140
W(CHROME PLATED BUMPER)
W(OVER FENDER & CHROME PLATED BUMPER)
GRAY ME.,KF8 ,KF9 ,KG1 ,KG2 ,KG5 ,KG6 ,KG7 ,KG9 ,1D2
sub52107-35901
SPORTY VERSION(CENTRAL AMERICA)
W(OVER FENDER)
52157BSTAY, REAR BUMPER SIDE, NO.2 RH
52158BSTAY, REAR BUMPER SIDE, NO.2 LH
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
9010508341
main90105-08341
9017908017
main90179-08017
9020108012
main90201-08012
9020108032
main90201-08032
9020108258
main90201-08258
9046710180
main90467-10180
9461310800
main94613-10800
19 parts on this diagram · 1 diagram in section
