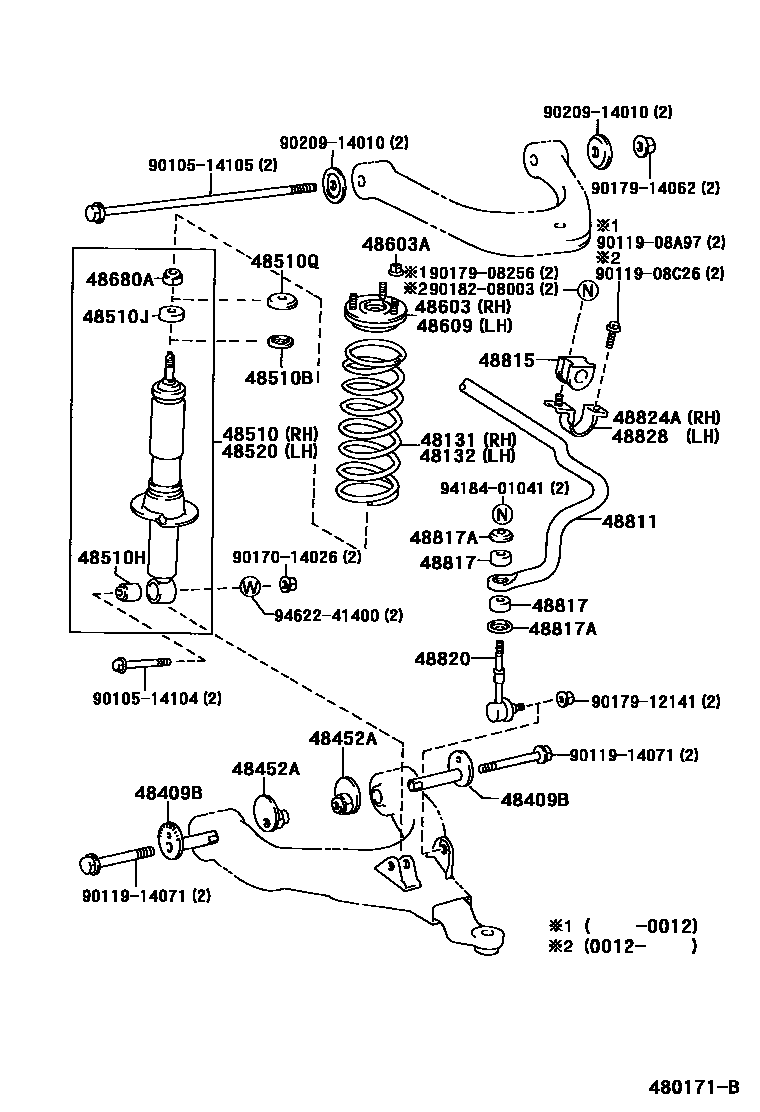

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-35160iKZN185,RZN185,VZN185199511-199708

main48131-35230iRZN180200008

L=336.5

main48131-35240iVZN180200008

L=343.0

main48131-35250iRZN185,VZN185199708-199807

main48131-35270iKZN185199708-199807

main48131-35330iRZN185199807

L=361.5

main48131-35400iKZN185,VZN185199807

L=368.0

48132SPRING, FRONT COIL, LH

main48131-35150iKZN185,RZN185,VZN185199511-199708

sub48131-35330

main48131-35240iRZN180200008

L=343.0

main48131-35260iRZN185,VZN185199708-199807

main48131-35280iKZN185199708-199807

main48131-35320iVZN180200008

L=351.5

main48131-35340iRZN185199807

L=368.0

main48131-35350iKZN185,VZN185199807

L=374.0

48409BCAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST

main48409-35050iKZN185,RZN18#,VZN18#199511

48452APLATE, FRONT SUSPENSION TOE ADJUST, NO.2

main48452-35020iKZN185,RZN18#,VZN18#199511

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39405iKZN185,RZN185,VZN185199511-199607

sub48510-39406

main48510-39406iKZN185,RZN185,VZN185199607-199708

main48510-39715iKZN185,RZN185,VZN185199708-199807

sub48510-39406

main48510-39775iKZN185,RZN18#,VZN18#199807

MARK 48510-35160

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02159iKZN185,RZN18#,VZN18#199511

48510HBUSH(FOR FRONT SHOCK ABSORBER)

main90389-14048iKZN185,RZN18#,VZN18#199511

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01056iKZN185,RZN18#,VZN18#199511

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02161iKZN185,RZN18#,VZN18#199511

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-39405iKZN185,RZN185,VZN185199511-199607

sub48510-39406

main48510-39406iKZN185,RZN185,VZN185199607-199708

main48510-39715iKZN185,RZN185,VZN185199708-199807

sub48510-39406

main48510-39775iKZN185,RZN18#,VZN18#199807

MARK 48510-35160

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-35030iKZN185,RZN18#,VZN18#199511

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10212iKZN185,RZN18#,VZN18#199511

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-35030iKZN185,RZN18#,VZN18#199511

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94184-01241iKZN185,RZN18#,VZN18#199511

48811BAR, STABILIZER, FRONT

main48811-35400iKZN185,RZN18#,VZN18#199511

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-35100iKZN185,RZN18#,VZN18#199511

48817CUSHION, FRONT STABILIZER

main90948-01003iKZN185,RZN18#,VZN18#199511

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02131iKZN185,RZN18#,VZN18#199511

48820LINK ASSY, FRONT STABILIZER

main48820-35030iKZN185,RZN18#,VZN18#199511

sub48820-AD010

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-35120iKZN185,RZN18#,VZN18#199511-200012

sub48824-35150

sub90119-08C26

sub90182-08003

main48824-35150iKZN185,RZN18#,VZN18#200012

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48829-35090iKZN185,RZN18#,VZN18#199511-200012

sub48829-35120

sub90119-08C26

sub90182-08003

main48829-35120iKZN185,RZN18#,VZN18#200012

9010514104

main90105-14104

9010514105

main90105-14105

9011908A97

main90119-08A97

9011908C26

main90119-08C26

9011914071

main90119-14071

9017014026

main90170-14026

9017908256

main90179-08256

9017912141

main90179-12141

9017914062

main90179-14062

9018208003

main90182-08003

9020914010

main90209-14010

9418401041

main94184-01041

9462241400

main94622-41400

34 parts on this diagram · 1 diagram in section
