FRONT AXLE ARM & STEERING KNUCKLE

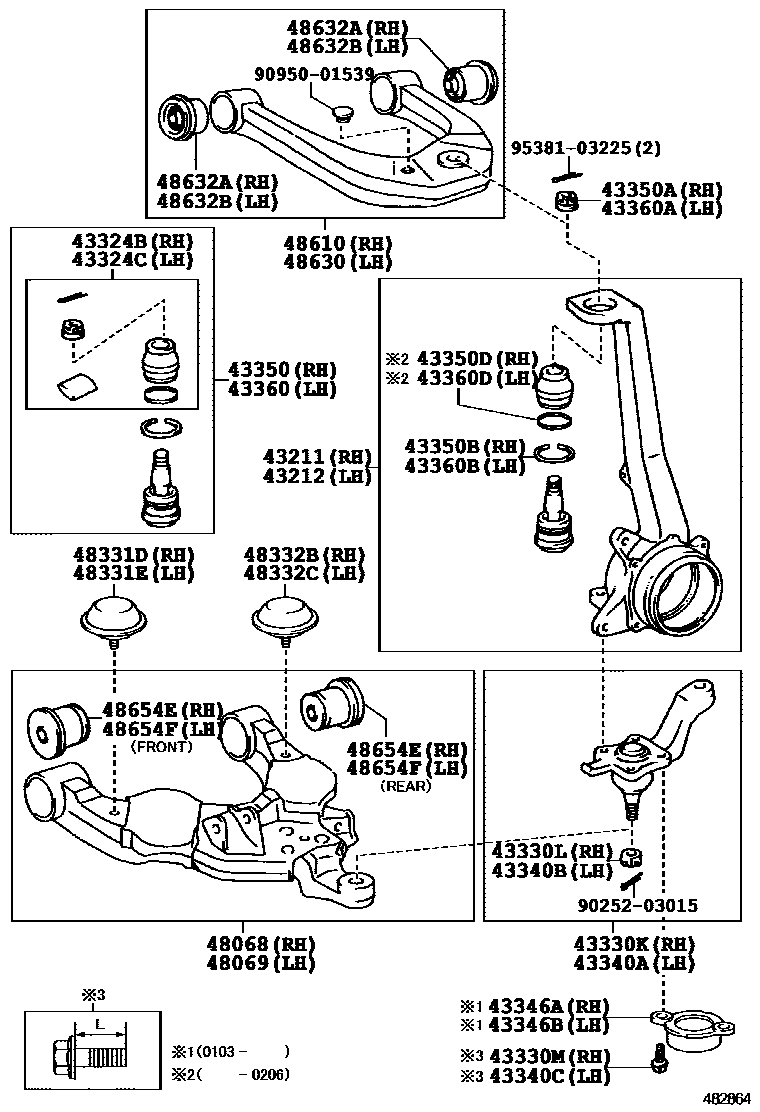

Parts diagram
43211KNUCKLE, STEERING, RH
main43201-35070i199511-200105
sub43201-35071
main43201-35071i200105-200211
main43201-35080i199807-200105
W(ABS)
sub43201-35081
main43201-35081i200105-200211
W(ABS)
43212KNUCKLE, STEERING, LH
main43202-35060i199511-200105
sub43202-35061
main43202-35061i200105-200211
main43202-35070i199807-200105
W(ABS)
sub43202-35071
main43202-35071i200105-200211
W(ABS)
43324BCOVER, FRONT UPPER BALL JOINT DUST, RH
main43324-39015i199511-200211
43324CCOVER, FRONT UPPER BALL JOINT DUST, LH
main43324-39015i199511-200211
43330KJOINT ASSY, LOWER BALL, FRONT RH
main43330-39415i199511-200103
sub43330-39585
main43330-39585i200103-200211
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
main90171-16050i199511-200211
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
main90105-10406i199511-200009
main90105-10505i200009-200105
GOLD,L=32
main90119-10933i200103-200211
GREEN,L=38
43340AJOINT ASSY, LOWER BALL, FRONT LH
main43340-39325i199511-200103
sub43340-39465
main43340-39465i200103-200211
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
main90171-16050i199511-200211
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
main90105-10406i199511-200009
main90105-10505i200009-200105
GOLD,L=32
main90119-10933i200103-200211
GREEN,L=38
43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH
main43346-60011i200103-200211
43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH
main43346-60011i200103-200211
43350JOINT ASSY, FRONT UPPER BALL, RH
main43310-39016i199511-200211
43350ANUT (FOR FRONT UPPER BALL JOINT RH)
main90171-14010i199511-200211
43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)
main90520-39180i199511-200211
43350DWIRE (FOR FRONT UPPER BALL JOINT RH)
main90522-43001i200206-200211
sub90580-10001
main90580-10001i199511-200206
43360JOINT ASSY, FRONT UPPER BALL, LH
main43310-39016i199511-200211
43360ANUT (FOR FRONT UPPER BALL JOINT LH)
main90171-14010i199511-200211
43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)
main90520-39180i199511-200211
43360DWIRE (FOR FRONT UPPER BALL JOINT LH)
main90522-43001i200206-200211
sub90580-10001
main90580-10001i199511-200206
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
main48068-35080i199511-199803
sub48068-35081
main48068-35081i199803
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
main48069-35080i199511-199803
sub48069-35081
main48069-35081i199803
48331DBUMPER, FRONT SPRING, NO.1 RH
main48304-35150i199511-200102
main48304-35190i200102
48331EBUMPER, FRONT SPRING, NO.1 LH
main48304-35150i199511-200102
main48304-35190i200102
48332BBUMPER, FRONT SPRING, NO.2 RH
main48305-35040i199511-200102
main48305-35050i200102
48332CBUMPER, FRONT SPRING, NO.2 LH
main48305-35040i199511-200102
main48305-35050i200102
48610ARM ASSY, FRONT SUSPENSION UPPER, RH
main48610-35040i199511
48630ARM ASSY, FRONT SUSPENSION, UPPER LH
main48630-35020i199511
48632ABUSH, FRONT SUSPENSION UPPER ARM, RH
main48632-35080i199511
48632BBUSH, FRONT SUSPENSION UPPER ARM, LH
main48632-35080i199511
48654EBUSH, FRONT LOWER ARM, NO.1 RH
main48061-35040i199511
FRONT
main48061-35050i199511
REAR
48654FBUSH, FRONT LOWER ARM, NO.1 LH
main48061-35040i199511
FRONT
main48061-35050i199511
REAR
9025203015
main90252-03015
9095001539
main90950-01539
9538103225
main95381-03225

35 parts on this diagram · 1 diagram in section
