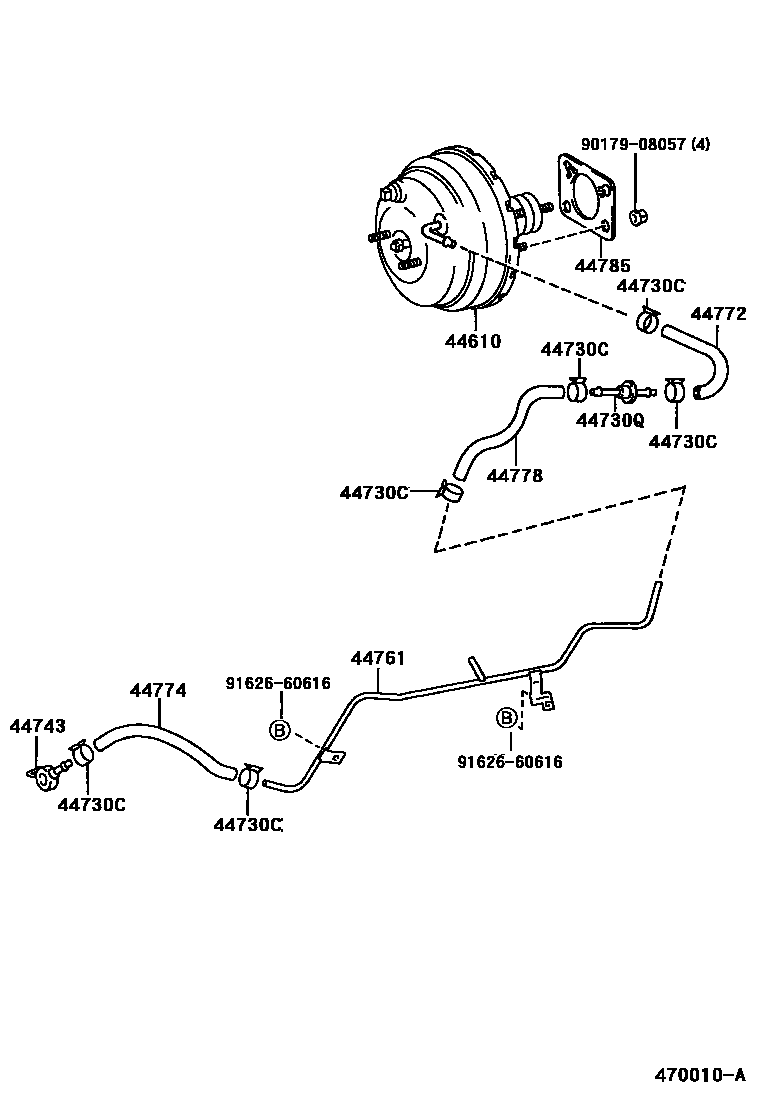

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-3D690iKZN185199511-199807

main44610-3D700iRZN18#,VZN18#199511

main44610-3D850iKZN185199807

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60060iRZN18#,VZN18#199607

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×6iKZN185199511

sub96134-51500

main90467-16003iRZN185,VZN185199511-199604

NO.2

sub96134-51500

44730QVALVE ASSY, VACUUM CHECK, NO.2

main44730-10010iKZN185199511

44743UNION(FOR VACUUM PUMP)

main90404-51237iVZN18#199511

main90404-51319iRZN18#199511

main90405-09175iKZN185199511

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-35120iKZN185199511-200008

W(*ADD)

main44761-35140iKZN185199511

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-35330iKZN185199511-200008

main44772-60130iKZN185200008

44774HOSE, UNION TO CONNECTOR TUBE

main44774-60230iKZN185200008

main95447-09220iKZN185199511-200008

sub95447-09300

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-35040iKZN185199511-200008

main44778-60170iKZN185200008

44785GASKET, BRAKE BOOSTER

main44785-35030iKZN185,RZN18#,VZN18#199511

9017908057

main90179-08057

9162660616

main91626-60616

12 parts on this diagram · 3 diagrams in section
