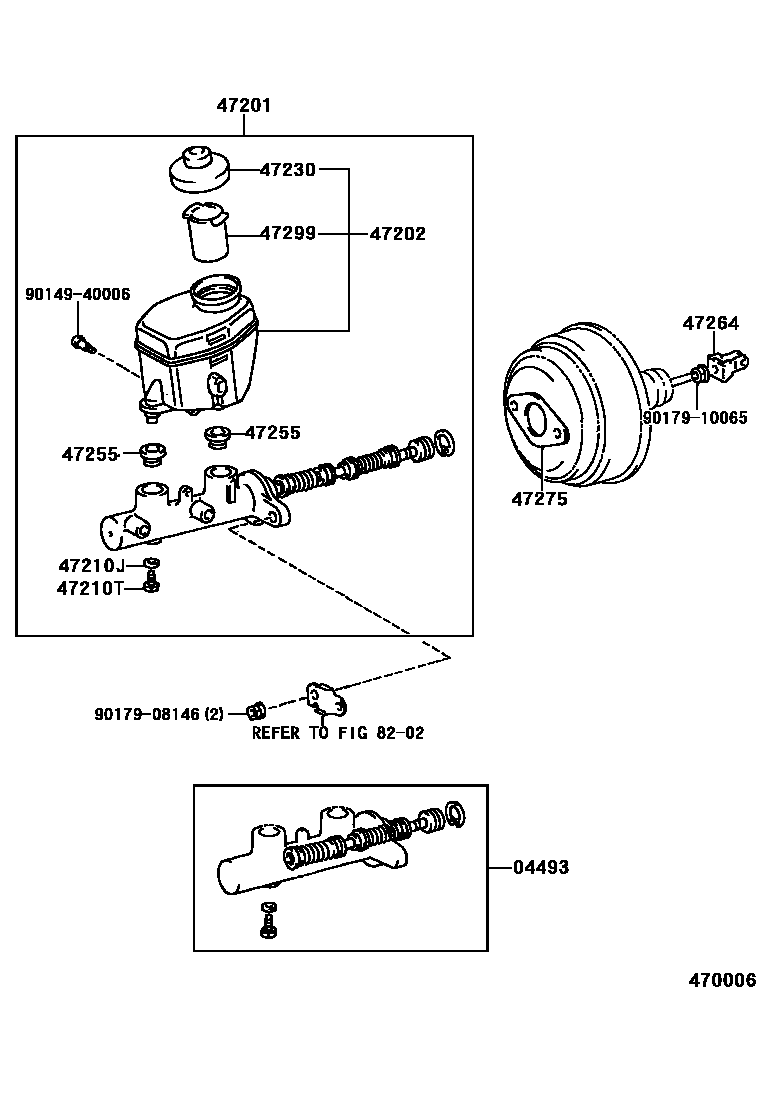

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-14160iKZN185,VZN18#200008

W(ABS)

main04493-30232iKZN185,VZN185199807-200008

W(ABS)

main04493-60280iKZN185,RZN18#,VZN18#199511

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-3D350iKZN185,RZN18#,VZN18#199511

main47201-3D380iKZN185,VZN18#199807

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-35040iKZN185,RZN18#,VZN18#199511

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iKZN185,VZN18#199807

W(ABS)

main90430-06104iKZN185,RZN18#,VZN18#199511

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iKZN185,RZN18#,VZN18#199511

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iKZN185,RZN18#,VZN18#199511

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iKZN185,RZN18#,VZN18#199511

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-28010iKZN185,RZN18#,VZN18#199807

main47264-50010iKZN185,RZN185,VZN185199511-199807

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iKZN185,RZN18#,VZN18#199511

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iKZN185,RZN18#,VZN18#199511

8202

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

14 parts on this diagram · 1 diagram in section
