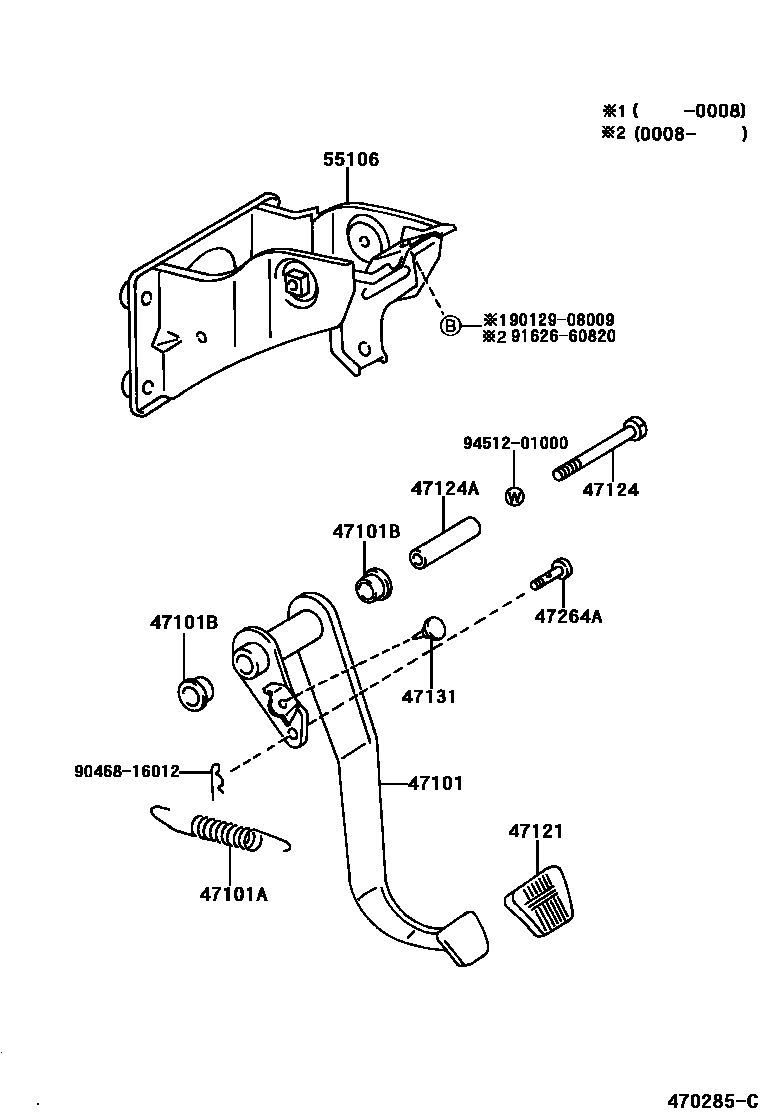

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-35310iKZN185,RZN185199511-200008

main47101-35311iKZN185,RZN18#200008

main47101-35320iVZN18#199511

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-17002iKZN185,RZN185,VZN185199511-199712

main90905-07021iKZN185,RZN18#,VZN18#199712

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iKZN185,RZN18#,VZN18#199804

main90386-13020iKZN185,RZN185,VZN185199511-199804

47121PAD, BRAKE PEDAL

main31321-14020iKZN185,RZN185199511-200008

main31321-52010iKZN185,RZN18#200008

main47121-12011iVZN18#199511

sub47121-12020

47124SHAFT, BRAKE PEDAL

main90101-10194iKZN185,RZN18#,VZN18#199511

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35030iKZN185,RZN18#,VZN18#199511

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iKZN185,RZN18#,VZN18#199511

47264APIN(FOR PUSH ROD)

main47148-35010iKZN185,RZN18#,VZN18#199511

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-35090iKZN185,RZN18#,VZN18#199511

9012908009

main90129-08009

9046816012

main90468-16012

9162660820

main91626-60820

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
