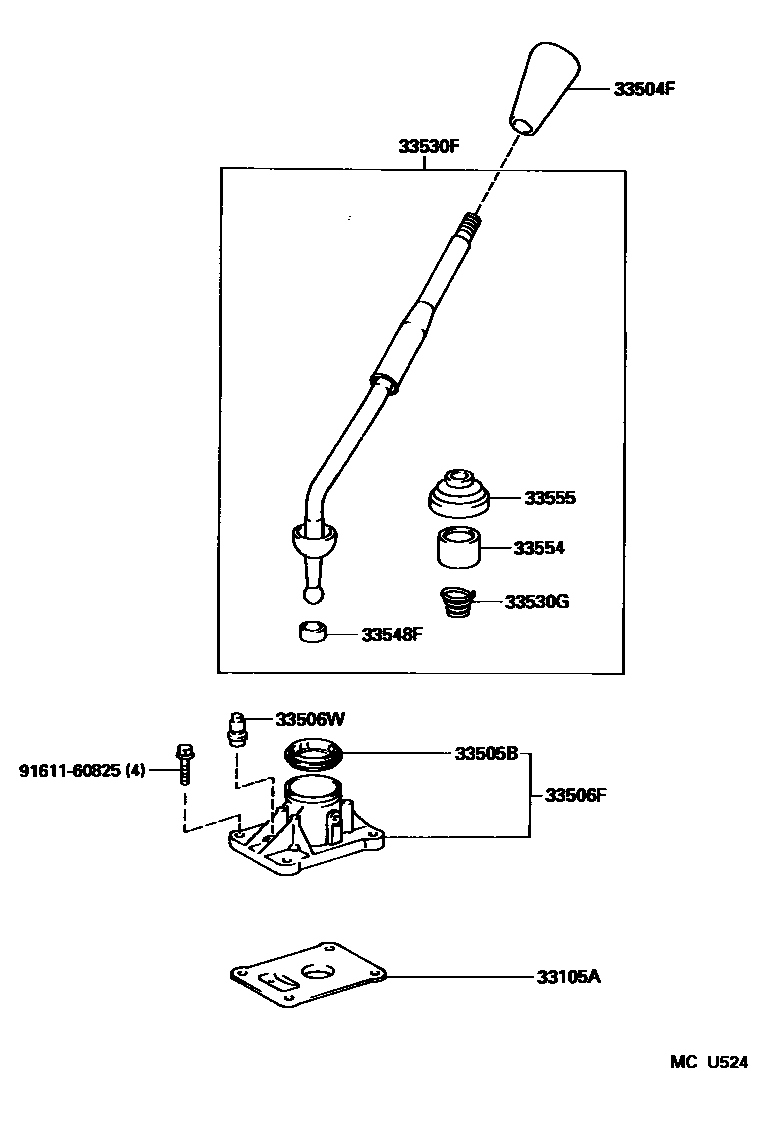

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)

main33105-35030iRZN185199511-200209

main33144-35030iKZN185199511-200211

main33144-60050iRZN185200209-200211

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20100-C0iKZN185,RZN18#199511

URETHANE,BLACK,TRIM1#,4#

sub33504-24010

main33504-20120-C0iKZN185199708

LEATHER,BLACK,TRIM1#,4#

main33542-20150-C0iVZN180200008

BLACK,TRIM1#,4#

main33542-35140-C0iVZN185199511

BLACK,TRIM1#,4#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35020iRZN18#199511-200211

main33505-35030iKZN185199511-200211

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-35110iKZN185199511-199608

main33506-35130iRZN185199511-200209

main33506-35140iKZN185199608-200211

main33506-35180iRZN185200209-200211

main33570-34010iRZN180200008-200211

33506WPLUG, BREATHER (FOR SHIFT LEVER RETAINER)

main90930-03075iKZN185199511-200211

main90930-03114iRZN185199511-200211

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-35250iKZN185199511-199608

main33530-35270iRZN185199511

main33530-35290iRZN180200008

main33530-35310iKZN185199608

33530GSPRING, CONICAL (FOR SHIFT LEVER)

main90502-26005iKZN185199511

main90502-26007iRZN18#199511

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iKZN185,RZN18#199511

33554CAP, SHIFT LEVER

main33554-30012iKZN185,RZN18#199511

33555BOOT, SHIFT LEVER

main33555-35040iRZN180200008

main33555-35160iVZN185199511

main33555-35180iVZN180200008

main33555-60030iKZN185,RZN185199511

9161160825

main91611-60825

11 parts on this diagram · 5 diagrams in section
