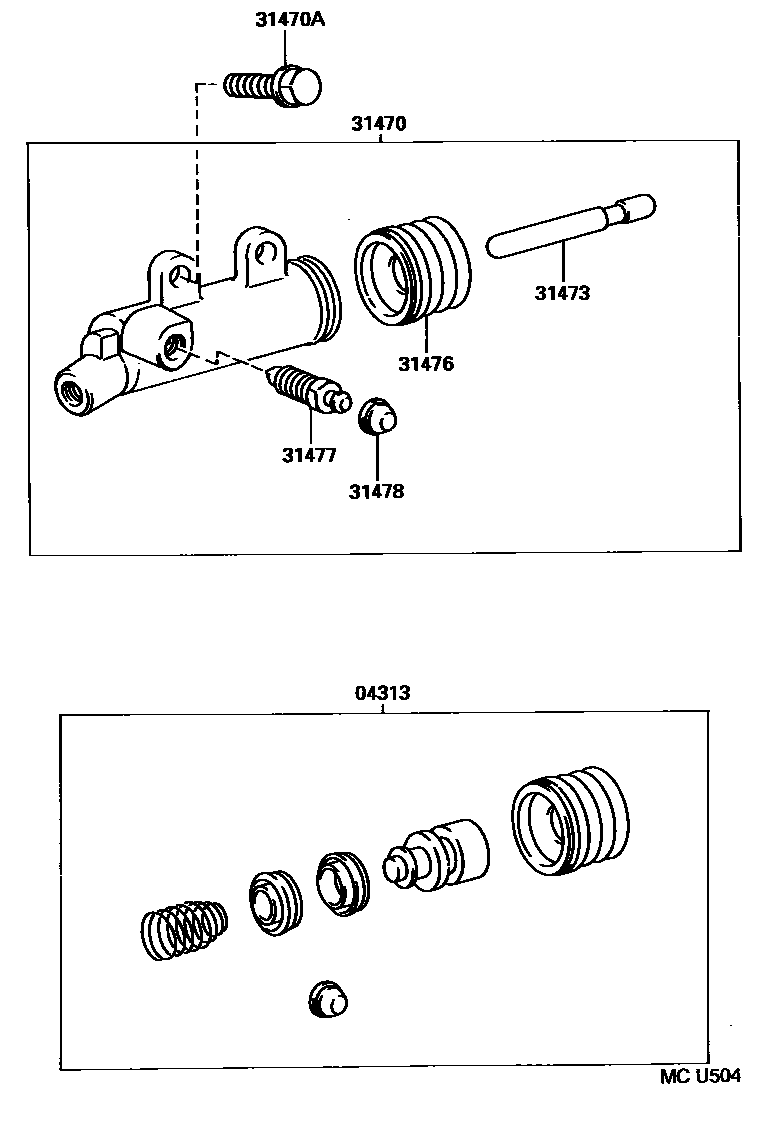

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iRZN18#¥780199511-200211

main04313-18020iKZN185¥990199511-200105

main04313-35060iKZN185¥780200105-200211

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35130iRZN18#¥7,400199511-200211

sub31470-43010¥6,100

main31470-35140iKZN185¥5,500199511-200211

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iRZN18#¥140199511-199809

*8-1.25PX25-25

sub91611-B0825¥160

main91611-G0820iKZN185¥160199809-200211

*8-1.25PX20-20

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iRZN18#¥450199511-200211

main31473-60141iKZN185¥580199511-200105

sub31473-60142¥440

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKZN185,RZN18#¥230199511-200211

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKZN185,RZN18#¥180199511-200211

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKZN185,RZN18#¥160199511-200211

7 parts on this diagram · 2 diagrams in section
