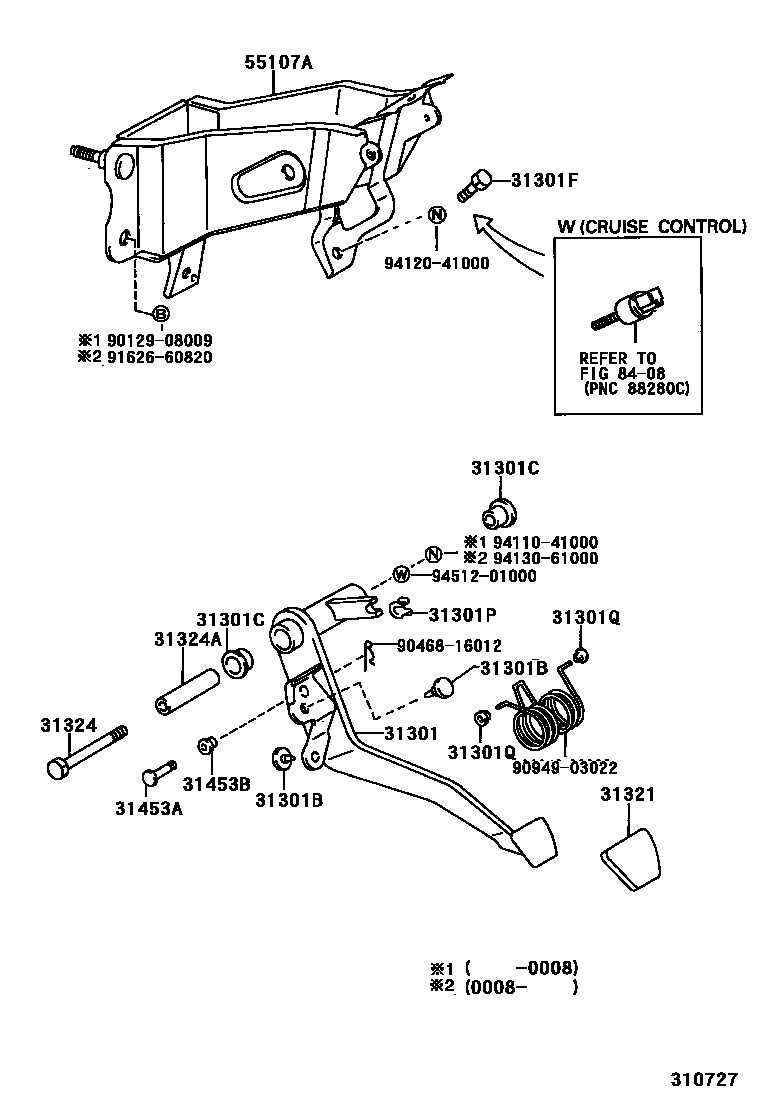

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31310-35050iKZN185,RZN185199511-200008

main31310-35051iKZN185,RZN18#200008

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iKZN185,RZN18#199511

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iKZN185,RZN18#199511

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iKZN185,RZN18#199511

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-05017iKZN185,RZN18#199511

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-05018iKZN185,RZN18#199511

31321PAD, CLUTCH PEDAL

main31321-14020iKZN185,RZN185199511-200008

main31321-52010iKZN185,RZN18#200008

31324SHAFT, CLUTCH PEDAL

main91121-51090iKZN185,RZN18#199511

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10121iKZN185,RZN18#199511

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-35030iKZN185,RZN18#199511

L=28.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iKZN185,RZN18#199511

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-35050iKZN185,RZN18#199511

8408

9012908009

main90129-08009

9046816012

main90468-16012

9094903022

main90949-03022

9162660820

main91626-60820

9411041000

main94110-41000

9412041000

main94120-41000

9413061000

main94130-61000

9451201000

main94512-01000

21 parts on this diagram · 3 diagrams in section
