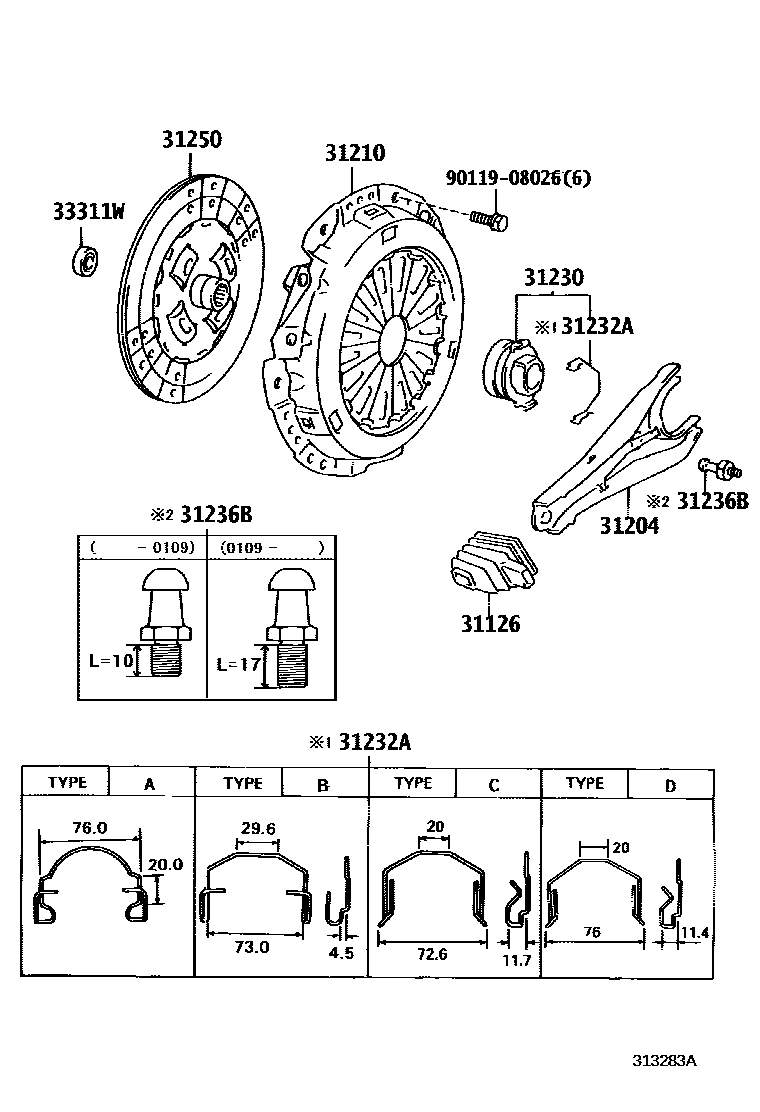

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-26020iRZN18#199511-200211

main31126-60080iKZN185199511-200103

main31126-60081iKZN185200103-200211

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZN18#199511-200211

main31204-60090iKZN185199511-200211

31210COVER ASSY, CLUTCH

main31210-35200iRZN18#199511

sub31210-26170

main31210-35220iKZN185200008

sub31210-35221

main31210-60170iKZN185199511-200008

sub31210-60171

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iRZN18#199511-200211

sub31230-35091

main31230-60170iKZN185199511-200211

31232ACLIP, RELEASE BEARING HUB

main31232-35020iRZN18#199511-200211

TYPE C:REFER TO ILLUSTRATION

main31232-35040iRZN18#199511-200211

TYPE D:REFER TO ILLUSTRATION

main31232-36030iKZN185199511-200211

TYPE A:REFER TO ILLUSTRATION

main31232-60030iKZN185199511-200211

TYPE B:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-26010iRZN18#200109-200211

main31236-30060iRZN18#199511-200109

main31236-60060iKZN185199511-200211

31250DISC ASSY, CLUTCH

main31250-34010iRZN185199511-199708

main31250-35340iKZN185199511-199701

main31250-35341iKZN185199701

sub31250-35342

main31250-35400iRZN18#199708

sub31250-26230

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iKZN185200006

sub90363-12024

main90363-12018iRZN185200006-200008

NSK

main90363-12020iRZN185200006-200008

NACHI

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
