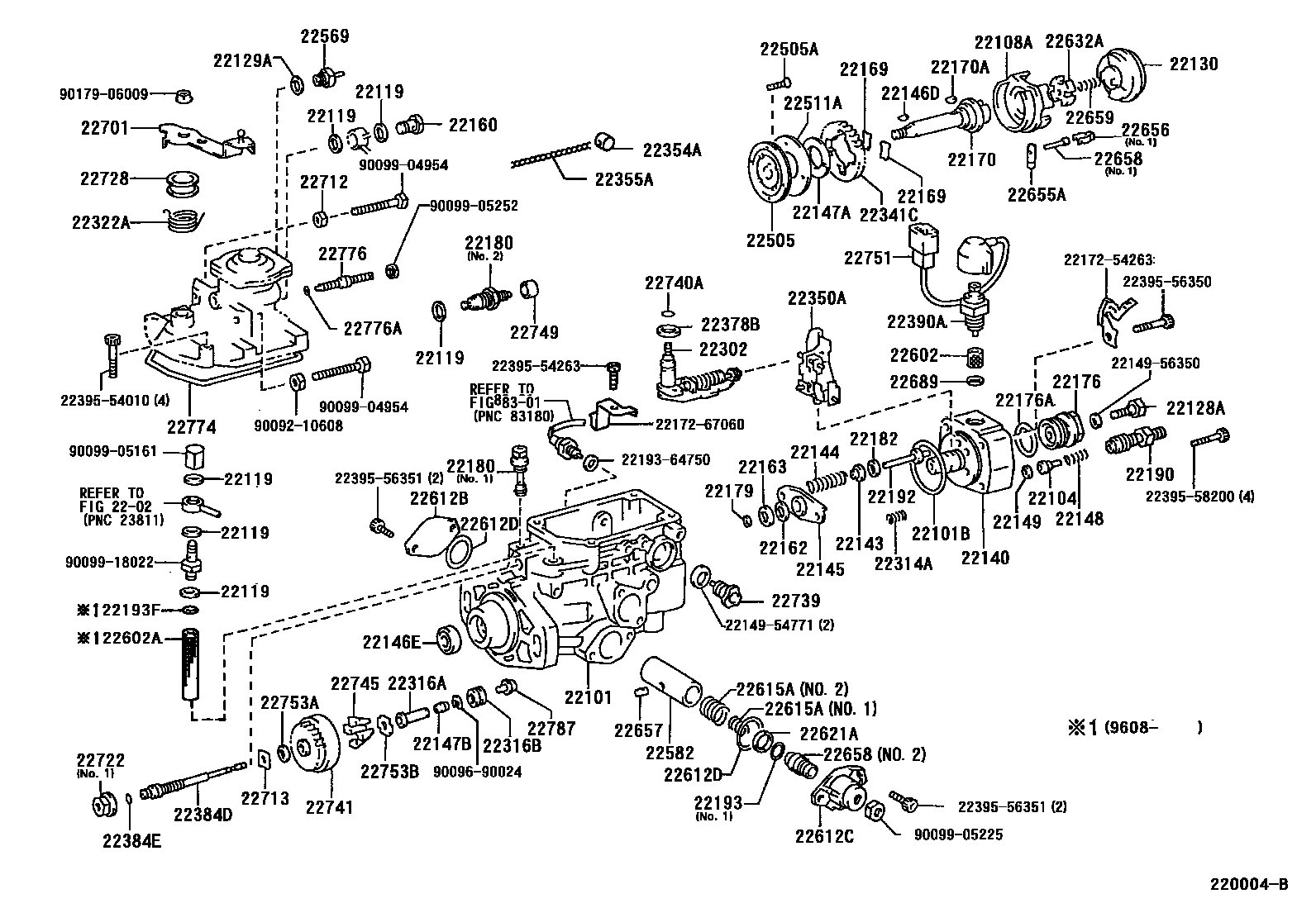

INJECTION PUMP BODY
2202
22101HOUSING SUB-ASSY, INJECTION PUMP
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22129PLUG, SCREW
22129AWASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG)
22130CAMPLATE SUB-ASSY, FACE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147AWASHER, DRIVE SHAFT
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
22160SCREW SUB-ASSY, OVERFLOW
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.1
T=2.2
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
NO.1
NO.2
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
T=2.0
22190VALVE SUB-ASSY, SNUBBER
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
NO.1
NO.2
22193FRING, O(FOR FUEL INJECTION PUMP FILTER)
22302SHAFT SUB-ASSY, SPEED CONTROL
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.5 & 0.5
ID=0.5 & 0.55
MARK 45
ID=0.70
ID=0.55
ID=0.6
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22322ASPRING, RETURN
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22354ASEAL, ROD
22355AWIRE, GOVERNOR HOUSING SEAL
22378BWASHER, DRAIN SCREW
22384DSHAFT, GOVERNOR
ARGENTINA SPEC
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
ARGENTINA SPEC
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22569SCREW, OVERFLOW
22582PISTON ASSY, TIMER
ARGENTINA SPEC
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=1.7,L=27.9
K=0.10,L=40.4
K=0.11,L=39.5
K=0.12,L=38.8
K=0.13,L=38.2
K=0.09,L=40.9
22621AWASHER, TIMER ADJUSTING
T=0.5
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22656CLIP, TIMER
NO.1
NO.2
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.1
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
MARK 486
MARK 487
MARK 488
22712NUT, ROCK
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22722NUT, GOVERNOR SHAFT ROCK
NO.2
NO.1
22728GUIDE, RETURN SPRING
22739BOLT, GOVERNOR LINK SUPPORT
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22749COLLAR, SMOKE SET ADJUSTING
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22774GASKET, GOVERNOR COVER
22776SCREW, SMOKE SET ADJUSTING
ARGENTINA SPEC
22776ARING, O(FOR SMOKE SET SCREW)
22787PLUG, GOVERNOR SLEEVE
L=3.4
L=3.6
L=3.8
L=4.0
L=4.1
L=3.0
L=3.2
L=4.2
8301
2214954771GASKET, DELIVERY VALVE
main22149-54771
2214956350GASKET, DELIVERY VALVE
main22149-56350
2217254263CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-54263
2217267060CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-67060
2219364750RING, O(FOR LEVER CONNECTING PIN)
main22193-64750
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239554263BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54263
2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56350
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
9009210608
main90092-10608
9009690024
main90096-90024
9009904954
main90099-04954
9009905161
main90099-05161
9009905225
main90099-05225
9009905252
main90099-05252
9009918022
main90099-18022
9017906009
main90179-06009
103 parts on this diagram · 3 diagrams in section
