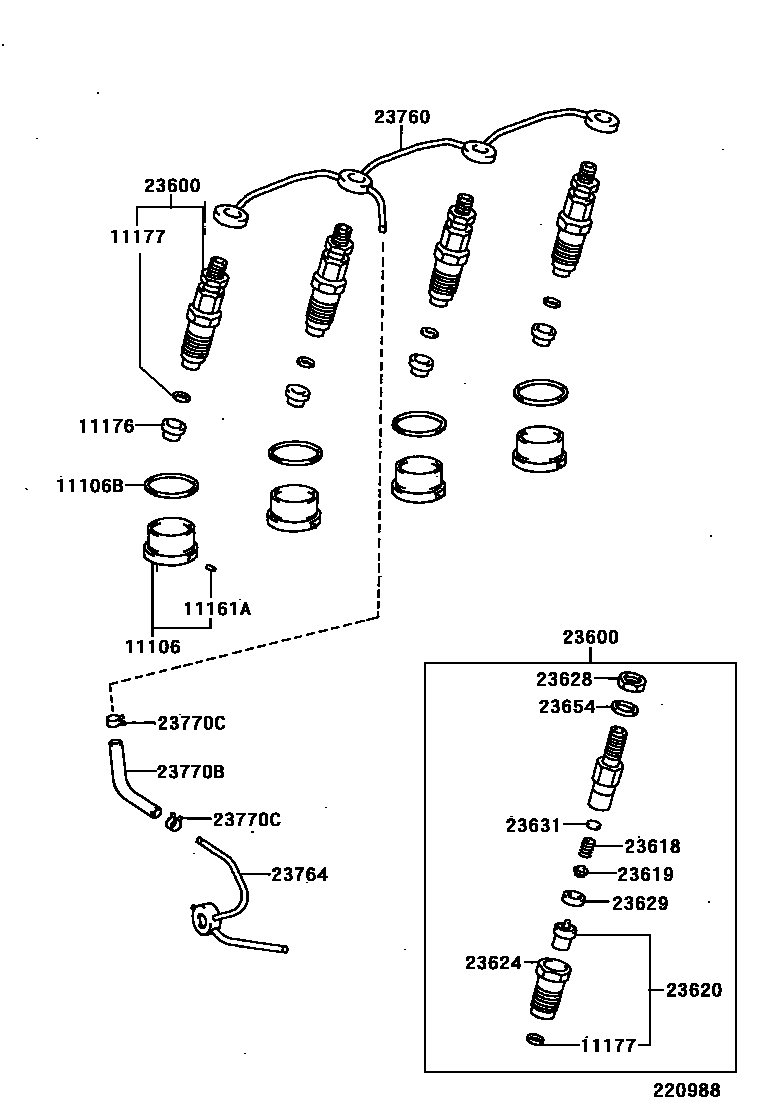

INJECTION NOZZLE
11106CHAMBER SUB-ASSY, COMBUSTION
11106BSHIM(FOR COMBUSTION CHAMBER)
T=0.05
T=0.05
T=0.10
T=0.10
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
11176SEAT, INJECTION NOZZLE
11177GASKET, INJECTION NOZZLE SEAT
23600HOLDER & NOZZLE SET, NOZZLE
23618SPRING, NOZZLE HOLDER PRESSURE
23619PIN, NOZZLE HOLDER PRESSURE
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
T=0.900
T=0.950
T=1.000
T=1.050
T=1.100
T=1.150
T=1.200
T=1.250
T=1.300
T=1.350
T=1.400
T=1.450
T=1.500
T=1.550
T=1.600
T=1.650
T=1.700
T=1.750
T=1.800
T=1.850
T=1.900
T=1.950
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23764PIPE, NOZZLE LEAKAGE, NO.4
23770BHOSE, FUEL
L=200(*H,L=140)
L=200(*H,L=170)
18 parts on this diagram · 2 diagrams in section
