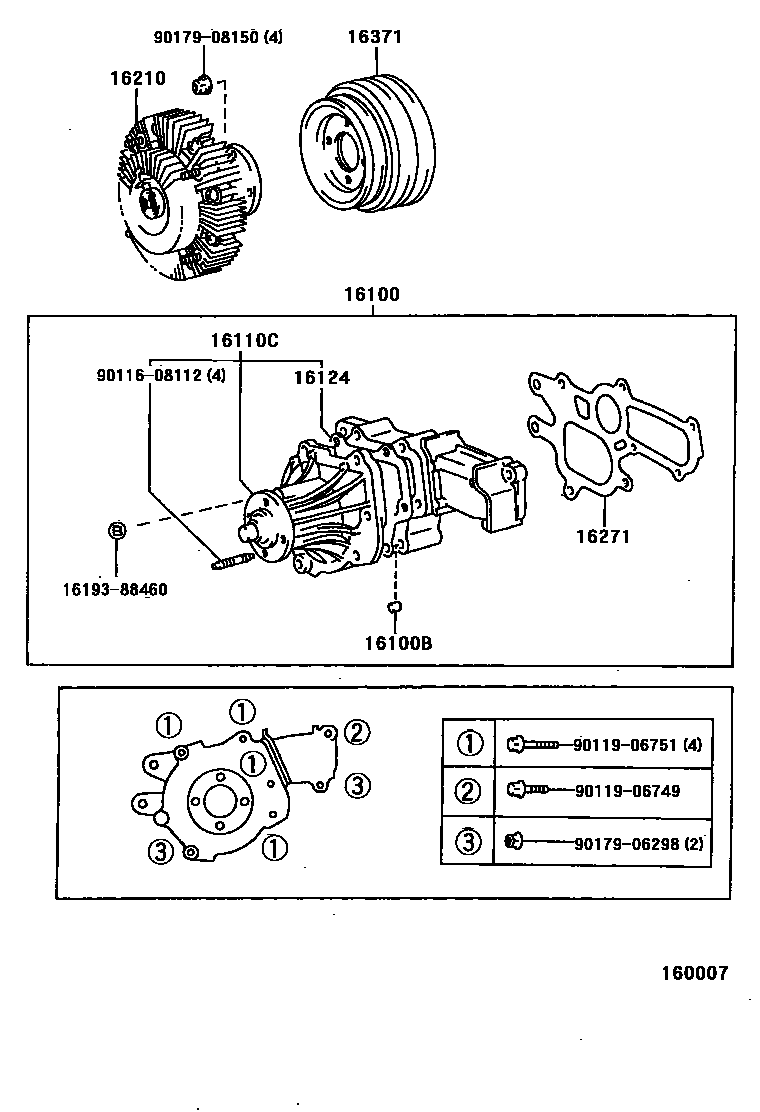

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-69355i1KZT..KZN185199511-200005

main16100-69356i1KZ#..KZN185200005

sub16100-69357

main16100-69395i5VZFE..VZN18#199511-200205

main16100-69396i5VZFE..VZN18#200205-200209

main16100-69397i5VZFE..VZN18#200209

sub16100-69398

main16100-79255i3RZFE..RZN18#199511

sub16100-79445

16100BPIN, RING(FOR WATER PUMP SET)

main16159-70040×2i1KZ#..KZN185199511

16110CPUMP ASSY, WATER, W/O COVER

main16110-69045i1KZ#..KZN185199511

16124GASKET, WATER PUMP COVER

main16124-67010i1KZ#..KZN185199511

main16124-75030i3RZFE..RZN18#199511

16210COUPLING ASSY, FLUID

main16210-62011i5VZFE..VZN18#199511

main16210-67030i1KZ#..KZN185199511

main16210-75040i3RZFE..RZN185199511-199608

main16210-75060i3RZFE..RZN18#199608

16271GASKET, WATER PUMP

main16271-67020i1KZ#..KZN185199511

16371PULLEY, FAN

main16371-62010i5VZFE..VZN18#199511

main16371-67020i1KZ#..KZN185199511

main16371-75030i3RZFE..RZN18#199511

1619388460BOLT, STUD(FOR WATER PUMP COVER)

main16193-88460

9011608112

main90116-08112

9011906749

main90119-06749

9011906751

main90119-06751

9017906298

main90179-06298

9017908150

main90179-08150

13 parts on this diagram · 3 diagrams in section
