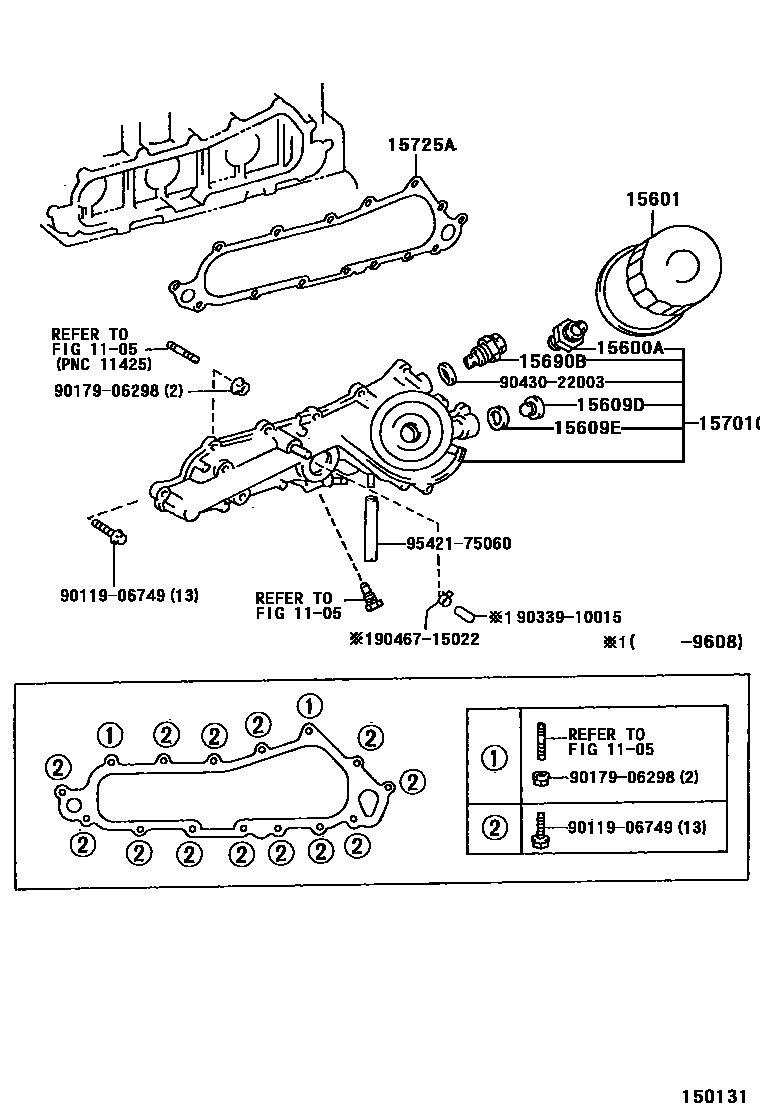

OIL FILTER

0001 1 0002 1 0003 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54021i1KZ#..KZN185¥2,060199511

main90404-19013i5VZFE..VZN18#¥510199511

main90404-19017i3RZFE..RZN18#¥400199511

15601FILTER SUB-ASSY, OIL

main90915-20001i5VZFE..VZN185¥1,470199511-199908

sub90915-20003¥1,470

main90915-20003i3RZFE..RZN18#¥1,470199908

sub90915-20005¥1,470

main90915-30002i1KZ#..KZN185¥3,150199511

15609BRACKET SUB-ASSY, OIL FILTER

main15609-75030i3RZFE..RZN18#199511

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i1KZ#..KZN185¥180199511

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KZ#..KZN185¥240199511

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i1KZ#..KZN185¥3,490199511

sub15690-64011¥2,300

15701CCOVER SUB-ASSY, OIL COOLER

main15701-67020i1KZT..KZN185¥22,600199511-199608

main15701-67030i1KZ#..KZN185¥33,400199608

sub15701-67031¥22,900

sub95420-06052¥160

sub95421-06060¥160

15725AGASKET, OIL COOLER COVER

main15725-67010i1KZ#..KZN185¥680199511

9011906749

main90119-06749¥90

9017906298

main90179-06298¥90

9033910015

main90339-10015¥140

9043022003

main90430-22003¥260

9046715022

main90467-15022¥170

9542175060

main95421-75060¥200

15 parts on this diagram · 3 diagrams in section
