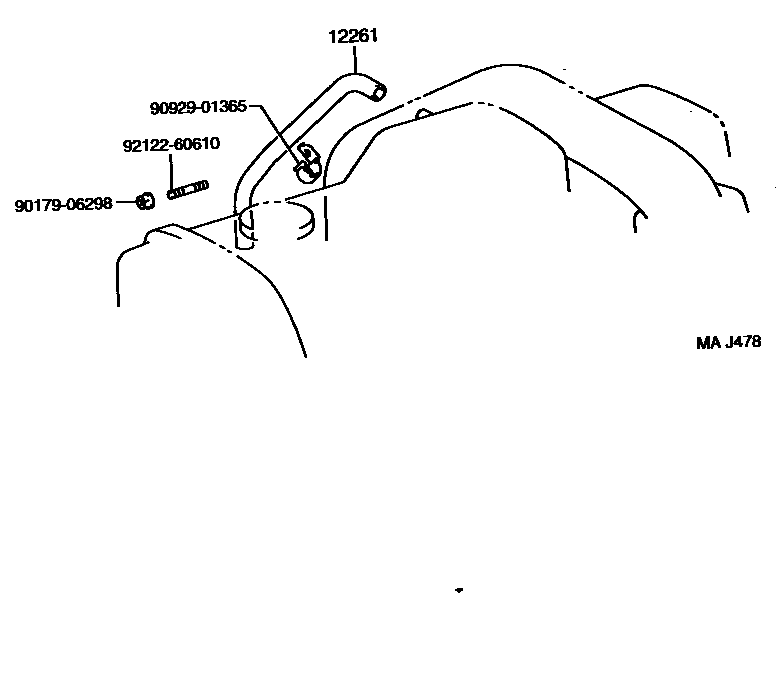

VENTILATION HOSE

0001 1 0002 1 0003 1

12261HOSE, VENTILATION

main12261-62040i5VZFE..VZN185199511-199611

main12261-62041i5VZFE..VZN18#199611

main12261-67020i1KZ#..KZN185199511

main12261-75030i3RZFE..RZN185199511-199906

TYPE A:REFER ILLUST.

main12261-75080i3RZFE..RZN18#199906

TYPE B:REFER ILLUST.

9017906298

main90179-06298

9092901365

main90929-01365

9212260610

main92122-60610

4 parts on this diagram · 3 diagrams in section
