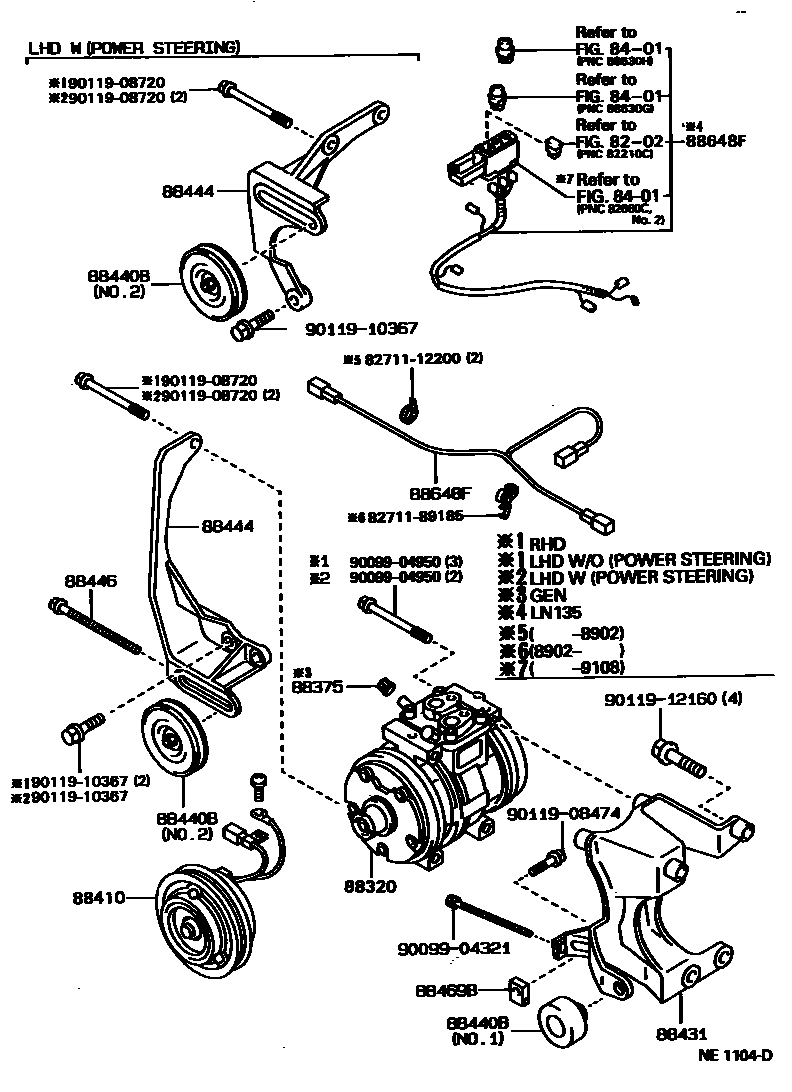

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

8202

8401

88320COMPRESSOR ASSY, COOLER

main88320-35250iLN106..LHD..CBU199208-199401

MAKER OPTION

sub88320-35H91

main88320-35250iRN10#..ARL;LN10#,111,RN110198808-199208

sub88320-35H91

main88320-35260iYN106198808-199401

sub88320-35H91

main88320-35270iRN106..GEN199108-199401

sub88320-35H91

main88320-35290iRN105..V198808-199401

sub88320-35H91

main88320-35341iRN13#..GEN199108-199511

sub88320-22H91

main88320-35360iRN135198907-199108

sub88320-35361

main88320-35361iRN135..V199108-199308

sub88320-22H91

main88320-35370iLN135198904-199108

sub88320-35371

main88320-35371iLN135..RHD199106-199511

sub88320-22H91

main88320-35380iYN130198908-199008

sub88320-35381

main88320-35381iYN135198904-199108

sub88320-22H91

main88320-35391iRN130..ARL199108-199308

main88320-35410iVZN130199008-199106

sub88320-35411

main88320-35411iVZN130199106-199308

main88320-35420iLN130;LN135..LHD199308-199511

sub88320-26H91

main88320-35430iRN135..V199308-199511

sub88320-26H91

main88320-35470iVZN130199308-199511

sub88320-26H91

main88320-35480iRN130..ARL199308-199511

sub88320-26H91

main88320-35490iLN10#,111..ARL199401-199408

sub88320-35560

main88320-35520iRN105..V199401-199708

sub88320-35H92

main88320-35530iRN106..GEN199401-199909

sub88320-35H92

main88320-35560iLN106,111..GEN199401-200106

sub88320-35H92

main88320-35560iLN106..LHD..TW1199408-199708

W(POWER STEERING)

sub88320-35H92

main88320-60620iYN106;RN10#,110..ARL199401-199708

sub88320-35H92

88375CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-20010iLN106,111,135,RN105,135,YN106,135..GEN,V198808-200106

DISCHARGE

main88375-20010iLN106..LHD..CBU199208-199708

MAKER OPTION,DISCHARGE

main88375-30270iLN10#,111,RN110;RN10#,135..ARL,V198808-200106

SUCTION

main88375-30270iLN106..LHD..CBU199208-199708

MAKER OPTION,SUCTION

88410CLUTCH ASSY, MAGNET

main88410-22480iLN10#,111199401-200106

main88410-35040iLN106,111198808-199108

main88410-35050iYN106;LN106,111..ARL198808-199108

main88410-35070iRN105..V198808-199401

main88410-35110iVZN130199008-199308

main88410-35120iRN106,YN106;RN105,110..ARL199108-199401

main88410-35130iRN135..V198907-199308

main88410-35140iYN135198904-199108

main88410-35150iRN13#..GEN199108-199511

main88410-35160iLN13#198904-199108

main88410-35240iRN130..ARL199108-199308

sub88410-60370

main88410-35250iLN130;LN135..LHD199308-199511

main88410-35260iRN135..V199308-199511

main88410-35270iRN130..ARL199308-199511

main88410-35280iVZN130199308-199511

main88410-35320iRN105..V199401-199708

main88410-35350iYN106;LN10#,111..ARL199408-199812

main88410-60200iLN135..RHD199108-199511

main88410-60310iRN106,YN106;RN105,110..ARL199401-199909

main88410-90P80iLN106..LHD..CBU199208-199401

MAKER OPTION

main88410-90P80iLN10#,111199108-199208

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-26370iKZN205200108

main88431-35122iVZN130199008-199511

main88431-35150iRN106,13#;RN105,110..ARL,V198808-199909

main88431-35160iYN106,13#198808-199708

main88431-35170iLN10#,111,13#..GEN198808-200106

main88431-60180iLN10#,111,130..ARL199008-199812

88440BPULLEY ASSY, IDLE

main88440-26070iLN10#,111,13#198808-200106

NO.1

main88440-35010iLN106,135..RHD..GEN198808-199909

NO.2

main88440-35010iLN106,111..LHD198808-199708

MAKER OPTION,NO.2

main88440-35030iLN106..ARL;LN107,111,130;LN106,135..LHD198808-200106

NO.2

main88440-35030iLN106,111,135..LHD198808-199208

W(POWER STEERING),NO.2

main88440-35030iLN106,111,RN105,110,13#..ARL,V199008-199909

main88440-35040iVZN130,YN106,13#198808-199708

sub88440-35020

main88440-60040iLN130199008-199108

NO.2

88444BRACKET, IDLE PULLEY

main88444-35050iLN106,111..LHD198808-199108

MAKER OPTION

main88444-35050iLN106,111,13#..RHD198808-199909

main88444-35060iLN10#,111,13#..LHD198808-200106

W(POWER STEERING)

main88444-60070iLN10#,111,130..ARL199008-199812

88446BOLT, IDLE PULLEY

main88446-35010iLN106,111,135..LHD198808-199708

MAKER OPTION

main88446-35010iLN106,135..RHD..GEN198808-199909

main88446-35030iRN106,13#,YN106;RN105,110,VZN130..ARL,V198808-199909

main88446-35040iLN10#,111..ARL199108-199408

NO.2

main88446-35040iYN106,135;LN135..LHD;LN106,111..ARL198808-200106

main88446-35040iLN106,111,135..LHD198808-199208

W(POWER STEERING)

main88446-60020iLN10#,111,130..ARL199108-199408

NO.1

main88446-60020iLN130199008-199108

DEALER OPTION,NO.1

main88446-60020iLN205200106

main88446-60030iLN130199008-199108

DEALER OPTION,NO.2

main88446-60040iKZN205200108

88469BCOLLAR

main88469-30280iLN10#,111,13#198808-200106

88648FWIRE, MAGNET CLUTCH

main88648-35030iVZN130199108-199308

main88648-35040iRN135..V199108-199308

main88648-35050iLN13#199108-199308

main88648-35070iRN13#..RHD199108-199308

main88648-35090iLN10#,111199108-200106

main88648-35130iVZN130199308-199511

main88648-35140iRN13#..LHD199308-199511

main88648-35150iLN13#199308-199511

main88648-35170iRN13#..RHD199308-199511

main88648-89127iRN105198808-199108

main88648-89128iLN106,111198808-199108

main88648-89130iYN135198904-198908

sub88648-89139

main88648-89131iRN135198907-199108

main88648-89132iLN13#198904-199108

main88648-89136iRN130198908-199108

main88648-89139iVZN130,YN135198908-199108

main88648-89140iYN130198908-199008

DEALER OPTION

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271189185WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89185

9009904321

main90099-04321

9009904950

main90099-04950

9011908474

main90119-08474

9011908720

main90119-08720

9011910367

main90119-10367

9011912160

main90119-12160
