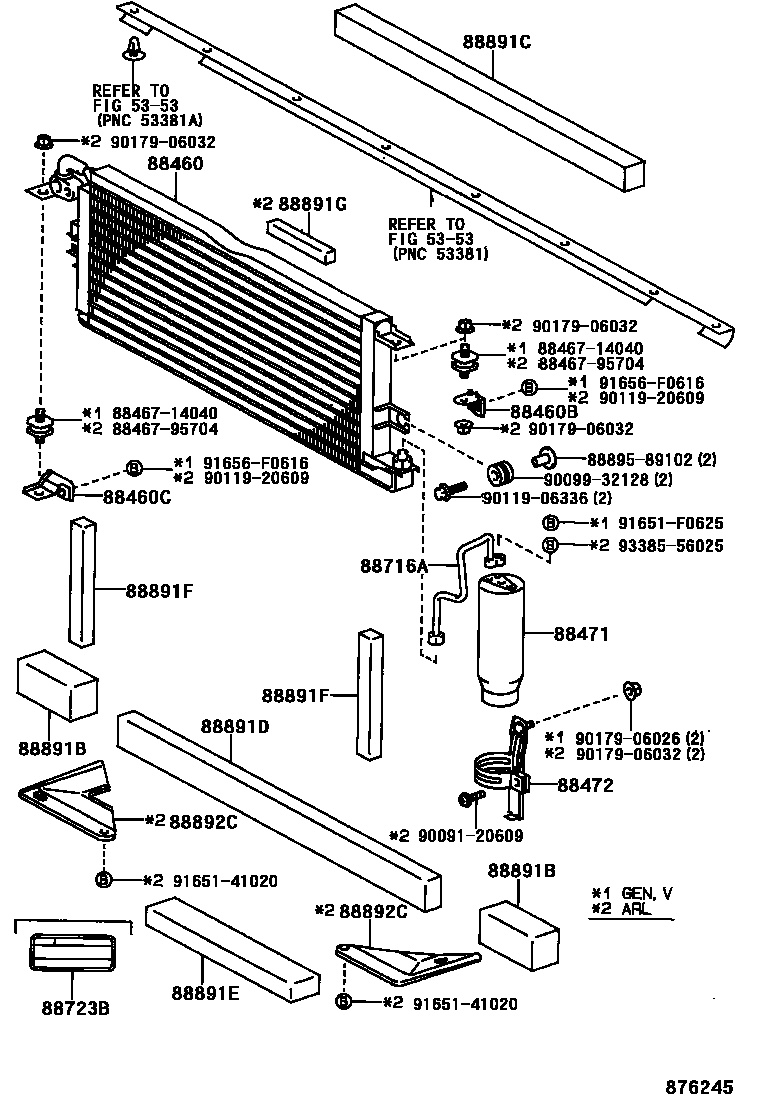

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & RECEIVER 0002 1BLOWER ASSY,CONDENSER & RECEI0003 1BLOWER ASSY,CONDENSER & RECEI0004 1BLOWER ASSY,CONDENSER & RECEI0005 1BLOWER ASSY,CONDENSER & RECEI0006 1HOSE & PIPE 0007 1HOSE & PIPE 0008 1HOSE & PIPE 0009 1HOSE & PIPE 0010 1HOSE & PIPE 0011 1HOSE & PIPE 0012 1HOSE & PIPE 0013 1HOSE & PIPE 0014 1HOSE & PIPE 0015 1HOSE & PIPE 0016 1HOSE & PIPE 0017 1HOSE & PIPE 0018 1HOSE & PIPE 0019 1HOSE & PIPE 0020 1HOSE & PIPE 0021 1HOSE & PIPE

5353

88460CONDENSER ASSY, COOLER

main88460-35060iVZN130199108-199308

DEALER OPTION

sub88460-35070

main88460-35080iVZN130199308-199511

MAKER OPTION

sub88460-35090

main88460-35110iLN130,RN130..ARL199308-199511

DEALER OPTION

sub88460-35090

main88460-35130iRN105..ARL,V;LN10#,111,RN106,110,YN106199401-199408

main88460-35150iRN105..ARL,V;LN10#,111,RN106,110,YN106199408-200106

main88460-89115iRN105..ARL,V;LN10#,111,RN106,110,YN106198808-199401

sub88460-35020

main88460-89117iLN13#,RN13#..GEN,V199108-199308

MAKER OPTION

sub88460-89118

main88460-89117iLN13#,RN13#,VZN130,YN13#198904-199108

sub88460-89118

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-89120iRN105..ARL,V;LN10#,111,RN106,110,YN106198808-200106

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-89121iRN105..ARL,V;LN10#,111,RN106,110,YN106198808-200106

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iLN10#,111,RN10#,110..ARL198808-199401

sub88471-16050

main88471-20050iRN105..ARL,V;LN10#,111,RN106,110,YN106199401-200106

sub88471-34010

main88471-34010iLN13#,RN13#,VZN130199308-199511

main88471-50010iRN105..V;LN106,111,RN106,YN106..GEN199305-199401

sub88471-16040

88472BRACKET, RECEIVER TANK, NO.1

main88472-35010iLN13#,RN13#,VZN130199108-199511

main88472-89110iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-200106

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-04030iKZN205200108

main88716-35100iVZN130;LN13#,RN13#..GEN,V199108-199308

main88716-35110iLN13#,RN13#,VZN130199308-199511

main88716-35230iRN105..ARL,V;LN10#,111,RN106,110,YN106199401-200106

main88716-89163iRN105..ARL,V;LN10#,111,RN106,110,YN106198808-199401

88723BLABEL, COOLER SERVICE CAUTION

main88723-17030iRN135..V199108-199308

main88723-20020iLN10#,111,RN10#,110..ARL,V199008-199401

main88723-20040iRN105,VZN130..ARL;LN10#,111,13#,RN106,110,13#,YN106..CBR,DSL199308-200106

main88723-20040iRN105..TW1..V199408-199708

DEALER OPTION

main88723-22050iLN130,RN130,VZN130..ARL198908-199308

main88723-35050iRN105..TW1..V199408-199708

MAKER OPTION

main88723-35050iRN106..EFI;RN105..T1..V199401-199909

88891BPACKING B (FOR COOLER)

main88578-35120iKZN205,LN205200106

main88578-89103iVZN130;RN105..TW1..V199108-200106

DEALER OPTION

main88578-89103iLN106,111,130,RN105,130..ARL198808-199812

main88578-89111iVZN130199108-200106

MAKER OPTION

main88578-89111iLN106..RHD..GEN;LN106,RN105..LHD..T1;LN111,13#,RN106,13#,YN106..GEN,V198808-199909

88891CPACKING C (FOR COOLER)

main88578-89111iKZN205,LN205200106

main88578-89118iRN135..RHD;RN106,YN106,135;RN105,110,130,YN130..ARL,V198808-199909

88891DPACKING D (FOR COOLER)

main88578-89112iLN10#,111..ARL199108-199401

main88578-89119iRN105..TW1..V199408-199708

MAKER OPTION

main88578-89119iRN10#,130..LHD;RN135,VZN130,YN106198808-199909

main88578-89125iRN105..TW1..V199408-199708

DEALER OPTION

main88578-89125iRN110,130..ARL198808-199708

main88578-89127iRN10#,YN130..ARL198808-199708

sub88578-89119

88891EPACKING E (FOR COOLER)

main88578-89112iLN111,13#..DLX;RN110,13#,VZN130..RHD198808-199308

main88578-89112iLN10#,111..ARL199401-199812

RADIATOR SUPPORT LOW

main88578-89112iLN130,RN110,13#,VZN130..ARL,GEN;LN107,111,135,RN106..(DSL,EFI)..GEN199308-200106

RADIATOR SIDE

main88578-89120iLN106..GEN198808-200106

main88578-89120iLN106,111..ARL198808-199108

DEALER OPTION

main88578-89120iLN10#,111..ARL199401-199812

UNDER COVER

88891FPACKING F (FOR COOLER)

main88578-35010iRN130..ARL199308-199511

MAKER OPTION AIR CONDITIONER,LH

main88578-35010iRN130..ARL199108-199511

LH

main88578-35010iRN130..ARL;VZN130..4FC199108-199308

DEALER OPT,LH

main88578-89122iLN106,111,RN105,110,YN106198808-200105

LH

main88578-89122iRN106..EFI199510-200106

main88578-89122iRN105..TW1..V199611-199708

MAKER OPTION AIR CONDITIONER,LH

main88578-89123iLN106,111,RN105,110,YN106198808-199812

RH

sub88578-89122

main88578-89123iRN105..TW1..V199611-199708

DEALER OPTION AIR CONDITIONER,RH

sub88578-89122

main88578-89128iVZN130..4FC199308-199511

MAKER OPTION AIR CONDITIONER,RH

main88578-89128iRN13#,VZN130..5F198907-199108

main88578-89128iVZN130..5F199108-199308

DEALER OPT,RH

main88578-89128iVZN130..5F199108-199308

MAKER OPT

main88578-89128iVZN130..5F199108-199511

RH

main88578-89128iVZN130..5F;RN13#..GEN,V199308-199511

DEALER OPTION AIR CONDITIONER

88891GPACKING G (FOR COOLER)

main88578-89107iVZN130..4FC199008-199308

DEALER OPTION

main88578-89107iLN107198808-200106

main88578-89131iVZN130..4FC199308-199511

main88578-89131iVZN130..4FC199008-199308

MAKER OPTION

88892CPLATE, CONDENSER, NO.1

main88892-89114iLN106,111,RN105..ARL198808-199708

RH

main88892-89115iRN10#..ARL198808-199708

LH

main88892-89116iVZN130199008-199108

DEALER OPTION,RH

main88892-89116iRN106..EFI198808-199412

RH

main88892-89117iVZN130199008-199108

DEALER OPTION,LH

main88892-89117iRN106..EFI198808-199412

LH

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8846795704CUSHION, COOLER CONDENSER, NO.1

main88467-95704

8889589102HOLDER, FUSE

main88895-89102

9009120609

main90091-20609

9009932128

main90099-32128

9011906336

main90119-06336

9011920609

main90119-20609

9017906026

main90179-06026

9017906032

main90179-06032

9165141020

main91651-41020

91651F0625

main91651-F0625

91656F0616

main91656-F0616

9338556025

main93385-56025

28 parts on this diagram · 21 diagrams in section
