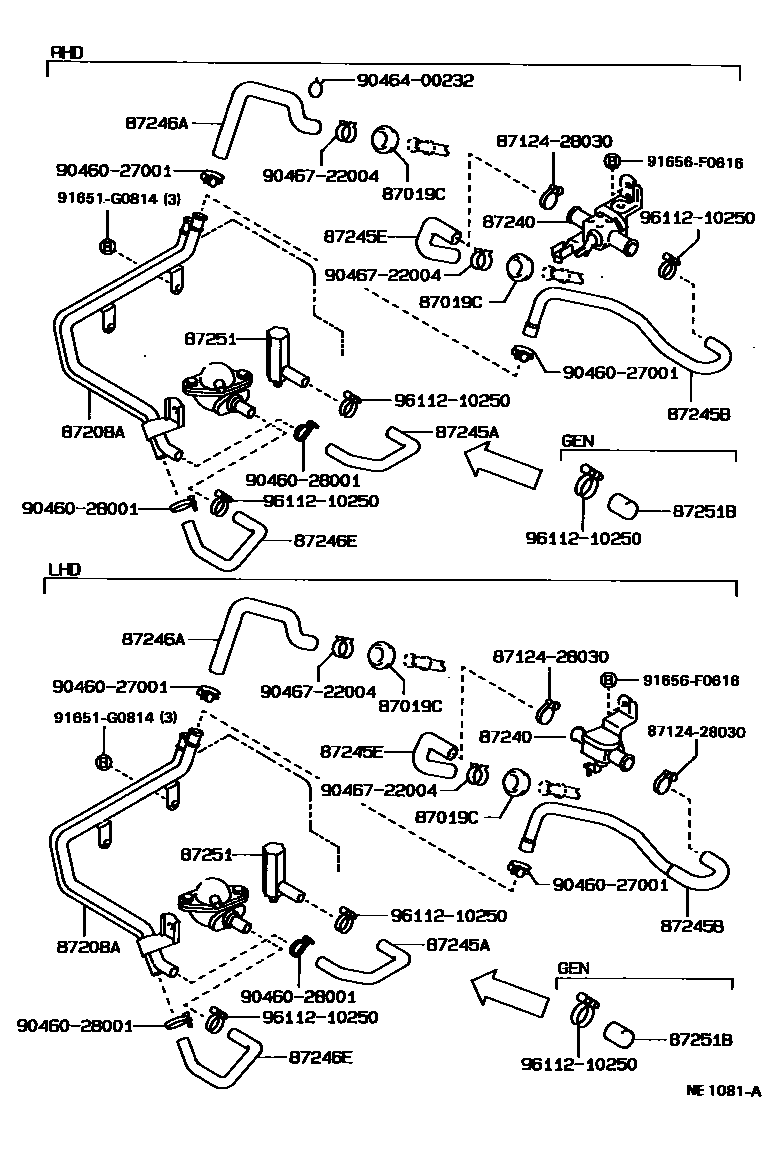

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

87019CGROMMET, HEATER HOSE

main90480-36005iLN205198808-200205

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-35250iKZN205200108

NO.1

main87208-35260iKZN205200108

NO.2

main87208-89136iLN106,111198808-198810

sub87207-89102

main87208-89143iLN10#,111,13#198810-200106

NO.1

main87208-89144iLN10#,111,13#198810-200106

NO.2

87240VALVE ASSY, HEATER WATER

main87240-35020iLN10#,111,13#,RN10#,110,13#,VZN130,YN106..RHD199308-199909

main87240-89124iRN10#,13#,YN106,135..LHD198808-199909

main87240-89125iLN10#,111,13#..LHD198808-200106

main87240-89126iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198808-199308

87245HOSE, HEATER WATER, INLET

main87245-04260iKZN205200108

NO.1

main87245-04270iKZN205200108

NO.2

87245AHOSE, HEATER WATER, INLET A

main87245-35160iVZN130199108-199511

main87245-89218iRN10#,13#..LHD198808-199909

main87245-89220iRN10#,110,13#..RHD198808-199708

main87245-89226iYN106,135..LHD198808-199708

main87245-89228iYN106,135..RHD198808-199708

main87245-89238iLN106,111198808-198810

sub87245-89279

main87245-89279iLN10#,111,13#198810-200106

main87245-89290iYN130198908-199008

main87245-89299iVZN130199008-199108

87245BHOSE, HEATER WATER, INLET B

main87245-89240iLN106,111..RHD198808-198810

main87245-89281iLN10#,111,13#198810-200106

87245EHOSE, HEATER WATER, INLET E

main87245-89231iRN10#,13#,YN106,135..LHD198808-199909

main87245-89232iLN10#,111,13#..LHD198808-200106

main87245-89233iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#..RHD198808-199909

87246AHOSE, HEATER WATER, OUTLET A

main87245-35170iVZN130199108-199511

main87245-89217iYN106,135..RHD198808-199708

main87245-89219iRN10#,13#..LHD198808-199909

main87245-89221iRN10#,110,13#..RHD198808-199708

main87245-89227iYN106,135..LHD198808-199708

main87245-89241iLN10#,111,13#..RHD198808-199909

main87245-89242iLN10#,111,13#..LHD198808-200106

main87245-89291iYN130198908-199008

sub87245-89228

main87245-89300iVZN130199008-199108

87246EHOSE, HEATER WATER, OUTLET E

main87245-35090iVZN130199108-199511

main87245-89239iLN106,111198808-198810

sub87245-89280

main87245-89273iVZN130199008-199108

main87245-89280iLN10#,111,13#198810-200106

main87245-89292iYN130198908-199008

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-89113iLN10#,111,13#198808-200106

87251BPLUG, HEATER WATER

main90339-16001iLN106,111,135,YN106,135..GEN198811-200106

main90339-16007iLN106,111..GEN198808-198811

sub90339-16001

8712428030CLAMP, HEATER

main87124-28030

9046027001

main90460-27001

9046028001

main90460-28001

9046400232

main90464-00232

9046722004

main90467-22004

91651G0814

main91651-G0814

91656F0616

main91656-F0616

9611210250

main96112-10250

19 parts on this diagram · 7 diagrams in section
