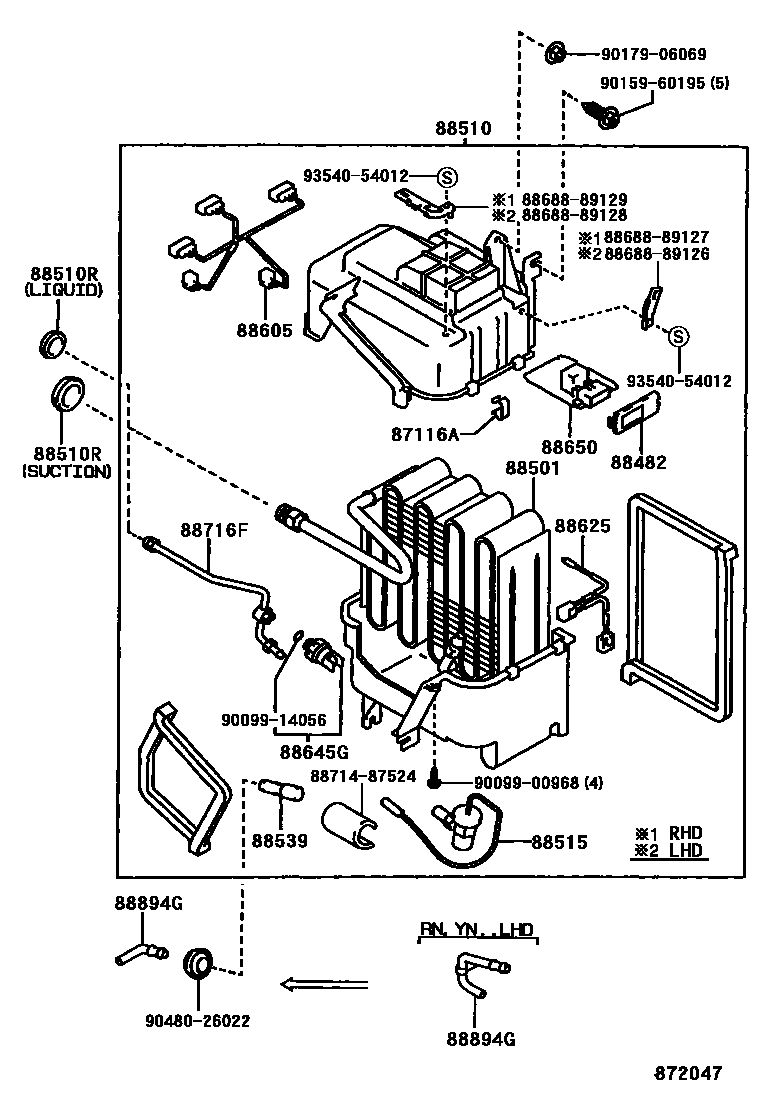

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1O-RING

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iRN13#..RHD198808-200106

88482CAP, COOLER

main88482-60010iYN106..RHD198808-199909

main88482-60020iLN10#,111,13#198808-200106

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-34010iLN10#,111,RN10#,YN106..LHD199401-200106

main88501-35010iLN13#,RN13#..LHD199308-199412

sub88501-35011

main88501-35011iLN13#,RN13#..LHD199412-199511

main88501-35020iVZN130199412-199511

DEALER OPTION AIR CONDITIONER

sub88501-35021

main88501-35020iLN13#,RN13#,VZN130..RHD199308-199412

sub88501-35021

main88501-35021iVZN130199412-199511

MAKER OPTION AIR CONDITIONER

main88501-35030iRN105..ARL;YN106..RHD..TW1;LN10#,111,RN106,110..RHD199408-199612

MAKER OPTION AIR CONDITIONER

main88501-35030iRN105..ARL;LN10#,111,RN106,110,YN106..RHD199401-199909

main88501-89111iLN106,111,RN10#,YN106..LHD198808-199401

main88501-89112iRN105..ARL;LN10#,111,RN106,110,YN106..RHD198808-199401

main88501-89113iLN13#,RN13#,YN135..LHD198904-199308

sub88501-14230¥27,000

main88501-89114iLN13#,RN13#,VZN130,YN13#..RHD198904-199308

88510UNIT ASSY, COOLER

main88510-35010iVZN130199108-199308

DEALER OPTION AIR CONDITIONER

main88510-35070iVZN130199108-199308

MAKER OPTION AIR CONDITIONER

main88510-35080iRN135..RHD199108-199308

main88510-35130iRN13#..LHD199308-199511

main88510-35140iLN13#..LHD199308-199511

main88510-35180iLN135..RHD199308-199511

sub88510-35260

sub88539-89113

sub88569-12170

sub88605-35110

sub88688-89139

main88510-35190iVZN130199308-199511

MAKER OPTION AIR CONDITIONER

sub88510-35240

sub88539-89113

sub88569-12170

sub88605-35160

sub88630-14040

sub88688-35140

sub88688-35210

main88510-35200iRN135..RHD199308-199511

sub88510-35250

sub88539-89113

sub88569-12170

sub88605-35170

sub88688-89139

main88510-35240iVZN130199308-199511

DEALER OPTION AIR CONDITIONER

main88510-35250iRN130..ARL199308-199511

main88510-35260iLN130..ARL199308-199511

main88510-35330iRN106..EFI199401-199909

main88510-35370iRN105..T1..V;RN106,YN106..LHD..CBR199401-199909

main88510-35370iRN105..TW1..V199408-199708

MAKER OPTION AIR CONDITIONER

main88510-35410iLN10#,111..LHD199401-200106

main88510-35430iYN106..RHD..T1199408-199612

MAKER OPTION AIR CONDITIONER

main88510-35430iYN106..RHD199401-199708

main88510-35460iLN10#,111..RHD199401-199909

main88510-35470iRN10#,110..ARL199401-199708

main88510-35480iYN106..RHD..T1199408-199612

THAILAND SPEC

main88510-35510iRN105..TW1..V199408-199708

DEALER OPTION AIR CONDITIONER

main88510-89143iRN10#,YN106..LHD198808-199401

main88510-89144iYN106..RHD198808-199401

main88510-89147iLN106..RHD..GEN198808-199401

sub88510-89155

sub88539-89113

sub88605-89156

sub88688-89127

sub88688-89129

main88510-89148iLN106,111..LHD198808-199401

main88510-89155iLN10#,111..ARL199008-199401

main88510-89158iRN10#,110..ARL198808-199401

main88510-89163iRN13#,YN135..LHD198904-199308

main88510-89164iLN13#..LHD198904-199308

main88510-89165iLN135..RHD198904-199308

main88510-89166iYN135..RHD198904-199108

main88510-89171iYN130198908-199008

main88510-89172iLN130..ARL198908-199308

main88510-89173iRN130..ARL198908-199308

main88510-89182iVZN130199008-199108

88510RGROMMET (FOR COOLER UNIT)

main90480-26003iLN10#,111,130,RN10#,110,130,VZN130..ARL198808-199401

LIQUID

main90480-26027iLN13#,RN13#,VZN130¥240199308-200106

LIQUID

main90480-36003iLN10#,111,RN10#,110..ARL198808-199401

SUCTION

main90480-36019iLN13#,RN13#,VZN130¥260199308-200106

SUCTION

88515VALVE, COOLER EXPANSION

main88515-14060iLN130,RN130,YN130¥10,600198904-199008

sub88515-14061¥10,600

main88515-14060iVZN130¥10,600199008-199108

DEALER OPTION AIR CONDITIONER

sub88515-14061¥10,600

main88515-14061iLN135;YN135..RHD¥10,600198904-199008

sub88515-14062¥10,500

main88515-14061iVZN130¥10,600199008-199108

MAKER OPTION AIR CONDITIONER

sub88515-14062¥10,500

main88515-14062iLN13#,RN13#,VZN130¥10,500199108-199308

sub88515-33010¥10,300

main88515-16040iRN105..V;LN106,111,YN106¥7,100198808-199401

main88515-20100iLN13#,RN13#,VZN130¥10,300199308-199511

sub88515-22240¥10,200

main88515-34010iYN106..RHD..T1¥7,000199408-199612

MAKER OPTION AIR CONDITIONER

main88515-34010iRN105..ARL,V;LN10#,111,RN106,110,YN106¥7,000199401-200106

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-89108iKZN205200108

main88539-89113iRN105..ARL,V;LN10#,111,13#,RN106,110,13#,VZN130,YN106,13#198808-200106

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-35100iRN13#..LHD199308-199511

main88605-35110iLN13#199308-199511

main88605-35160iVZN130199308-199511

main88605-35170iRN13#..RHD199308-199511

main88605-35200iRN106..EFI199401-199909

main88605-89151iRN10#,110..ARL198808-199708

main88605-89154iYN106;RN10#..LHD..CBR198808-199909

main88605-89156iLN10#,111..GEN198808-200106

main88605-89157iLN10#,111..ARL198808-199812

main88605-89161iRN13#,YN135..GEN,V198904-199308

main88605-89162iLN13#..GEN198904-199308

main88605-89167iYN130198908-199008

main88605-89168iLN130..ARL198908-199308

main88605-89169iRN130..ARL198908-199308

main88605-89174iVZN130..5F199108-199308

DEALER OPTION AIR CONDITIONER

main88605-89175iVZN130..5F199108-199308

MAKER OPTION AIR CONDITIONER

main88605-89175iVZN130199008-199108

88625THERMISTOR, COOLER, NO.1

main88625-34010iRN105..ARL,V;LN10#,111,RN106,110,YN106199401-200106

main88625-34010iYN106..TW1;RN105..ARL,V;YN106..LHD..T1;LN10#,111,RN106,110199408-199612

MAKER OPTION AIR CONDITIONER

main88625-35010iLN13#,RN13#,VZN130..RHD199308-199511

main88625-35020iLN13#,RN13#..LHD199308-199511

main88625-89102iRN105..ARL,V;LN10#,111,RN106,110,YN106198808-199401

main88625-89103iLN13#,RN13#,YN135..LHD198904-199308

main88625-89104iLN13#,RN13#,VZN130,YN13#..RHD198904-199308

88645GSWITCH, PRESSURE

main88645-10020iLN10#,111..ARL198808-199401

main88645-16020iRN106;RN105,110..ARL,V;LN106,111,YN106..GEN198808-199401

main88645-20050iLN13#,RN13#,VZN130199308-199511

main88645-34010iYN106..RHD..T1199408-199612

MAKER OPTION AIR CONDITIONER

main88645-34010iRN105..ARL,V;LN10#,111,RN106,110,YN106199401-200106

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-35060iKZN205,LN205200108-200412

main88650-89105iRN130198908-199708

main88650-89106iRN106..EFI199401-199909

main88650-89107iRN106,YN106..CBR..GEN;RN105,13#,YN135..(DLX,SR5)..(GEN,V)198808-199909

main88650-89108iYN106..RHD..T1199408-199612

THAILAND SPEC

main88650-89109iLN106,111,135..GEN198808-200106

main88650-89113iVZN130199008-199511

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-34010iLN10#,111,RN10#,YN106..LHD¥3,980199401-200106

main88716-35220iYN106..RHD..T1¥3,600199408-199612

MAKER OPTION AIR CONDITIONER

main88716-35220iRN105..ARL;LN10#,111,RN106,110,YN106..RHD¥3,600199401-199909

main88716-89156iLN106,111,RN10#,YN106..LHD¥3,940198808-199401

main88716-89157iRN105..ARL;LN10#,111,RN106,110,YN106..RHD¥3,940198808-199401

88894GCONNECTOR, DRAIN HOSE

main88894-04130iKZN205200108

main88894-89108iRN10#,13#,YN106,135..LHD198808-199909

main88894-89108iRN105..TW1..V199408-199708

MAKER OPTION AIR CONDITIONER

main88894-89109iYN106..RHD..T1199408-199612

MAKER OPTION AIR CONDITIONER

main88894-89109iRN10#..ARL;YN106..RHD;LN10#,111,RN110198808-200106

main88894-89112iRN105..TW1..V199408-199708

DEALER OPTION AIR CONDITIONER

8868889126BRACKET, COOLER DIAPHRAGM

main88688-89126

8868889127BRACKET, COOLER DIAPHRAGM

main88688-89127

8868889128BRACKET, COOLER DIAPHRAGM

main88688-89128

8868889129BRACKET, COOLER DIAPHRAGM

main88688-89129

8871487524HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-87524

9009900968

main90099-00968

9009914056

main90099-14056

9015960195

main90159-60195¥70

9017906069

main90179-06069¥120

9048026022

main90480-26022¥0

9354054012

main93540-54012¥90

24 parts on this diagram · 5 diagrams in section
