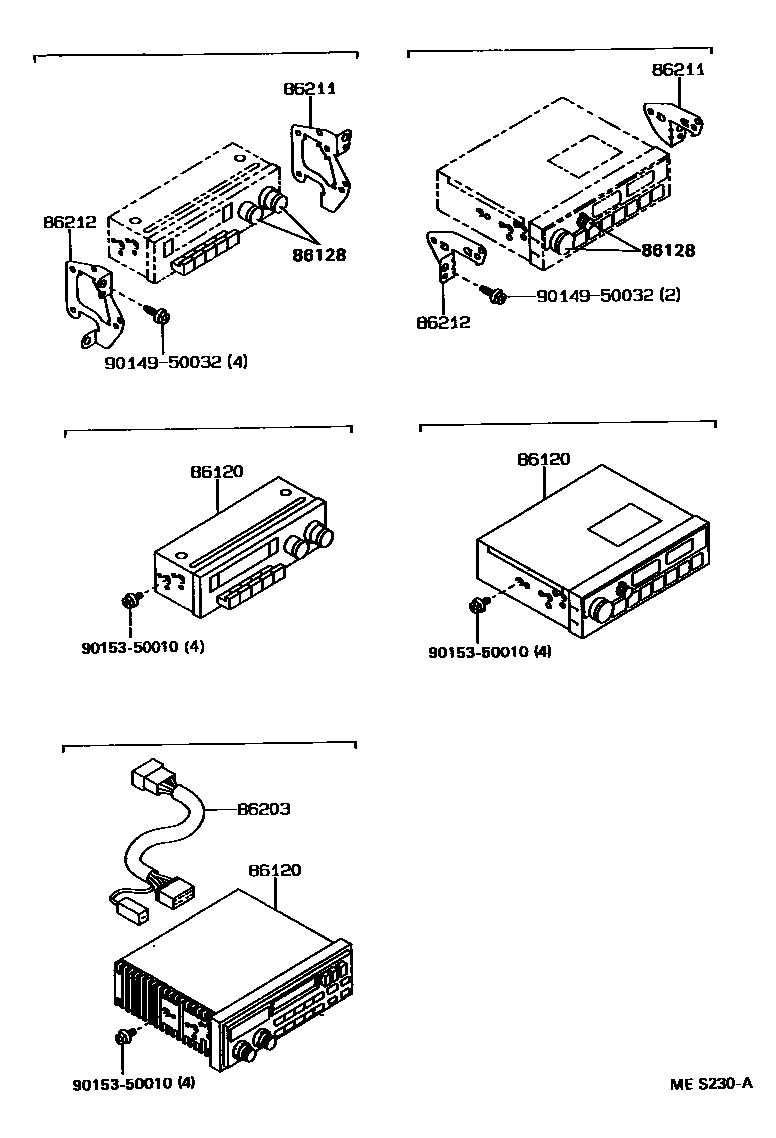

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER,KNOB,BRACKET & WIRE 0002 1TAPE PLAYER,CONDENSER & FILTE

86120RECEIVER ASSY, RADIO

main86100-89127iLN106,111,YN106..LHD198901-199108

AM/FM MPX ETR,LOGIC CASSETTE 1DIN

main86120-02100iLN13#,RN13#..GEN199404-199408

AMERICA MATSUSHITA,AM/FM MPX ETR W/CASSETTE 4SP

main86120-16530iLN106,111,135,RN105,YN106,135..(DLX,STD)..(ARL,GEN)198808-199108

MATSUSHITA,ID=5010,AM 5-BUTTON

sub86120-35080

sub86120-35110

sub86120-37010

main86120-17150iLN106,RN105..SR5;LN106,RN105,YN106..LHD;LN111,130,RN110,130,VZN130198811-199108

MATSUSHITA,AM/FM MPX ETR AUTO REVERSE CASSETTE

main86120-17150iLN111,RN110..ARL198808-198811

MATSUSHITA,AM/FM MPX ETR,LOGIC CASSETTE 1DIN

main86120-17280iRN105..V;RN106..ARL;LN106,135,RN135,YN106..GEN,V;LN107,111,130,RN110,130,VZN130199108-199909

MATSUSHITA,ID=57201,AM/FM MPX ETR AUTO REVERSE CASSETTE

main86120-17290iRN135,VZN130..SR5199108-199511

MATSUSHITA,ID=57402,AM/FM MPX ETR W/CASSETTE 4SP

main86120-1A010iLN106,111,RN106,YN106..(DLX,STD)..GEN199108-199909

MATSUSHITA,MW/SW/FM 5-BUTTON

main86120-1A020iRN105..ARL;LN106,111,RN106,YN106..DLX,STD199108-199909

FUJITSU TEN,ID=12201,AM/FM ETR (AM=9KHZ STEP)

main86120-1A020iLN107,111,RN106,110..ARL199108-199812

FUJITSU TEN,ID=12201,AM/FM MPX ETR 1DIN

main86120-2A030iLN106,111,135,YN106,135..GEN198808-199108

MATSUSHITA,AM/FM MPX ETR 1DIN

main86120-2A040iLN111,130,RN110,13#,YN130..ARL,V198808-199008

MATSUSHITA,AM/FM MPX ETR W/CASSETTE 4SP 2DIN

main86120-2A040iLN111,RN110,135,VZN130..SR5199008-199108

MATSUSHITA,AM/FM MPX ETR W/CASSETTE 4SP

main86120-2A070iRN105..V;LN106,111,RN106,YN106..(DLX,STD)..GEN199108-199909

MATSUSHITA,AM/FM MPX ETR 1DIN

main86120-2A190iRN135..V199308-199511

MATSUSHITA,ID=57202,AM/SW CASSETTE 2SP

sub86120-35100

main86120-2B360iLN13#,RN13#..GEN199408-199511

MATSUSHITA,ID=57400,AM/FM MPX ETR W/CASSETTE 4SP

main86120-32280iRN135198907-199108

MATSUSHITA,AM/FM MPX 5-BUTTON 2SP 1DIN

main86120-32380iLN135,YN135..LHD198904-198908

MATSUSHITA,AM/FM MPX ETR W/CASSETTE 4SP

sub86120-32383

main86120-32382iLN135,YN135..LHD198908-199008

MATSUSHITA,AM/FM MPX ETR W/CASSETTE 4SP

sub86120-32383

main86120-32383iLN135,YN135..LHD199008-199108

MATSUSHITA,AM/FM MPX ETR W/CASSETTE 4SP

main86120-33080iLN13#,RN13#..GEN199108-199408

MATSUSHITA,AM/FM MPX ETR W/CASSETTE 4SP

main86120-35050iRN105..V;LN106,111,13#,RN106,13#,YN106..(DLX,STD)..GEN199108-199909

MATSUSHITA,ID=57100,AM 5-BUTTON CASSETTE 1DIN

main86120-35050iRN135..V199108-199511

MATSUSHITA,ID=57100

main86120-35080iRN105..ARL,V;LN106,111,RN106,YN106..DLX,STD199108-199909

MATSUSHITA,ID=52100,AM 5-BUTTON

sub86120-60N00

main86120-35090iLN107..(DLX,SR5)..GEN;LN106,111,13#,RN106,13#,YN106..(DLX,STD)..GEN199108-200106

MATSUSHITA,ID=57400,AM/FM MPX ETR,LOGIC CASSETTE 1DIN

main86120-35100iLN106,111,13#,RN106,13#,YN106..(DLX,STD)..GEN199108-199909

MATSUSHITA,ID=57401,*AFM/4-AMP AM/FM MPX ETR,CASSETTE 1DIN

main86120-35110iLN106,111,RN106,YN106..(DLX,STD)..GEN199108-199909

MATSUSHITA,ID=52101,AM ETR 1DIN

main86120-89130iRN105..V198808-199108

MATSUSHITA,AM 5-BUTTON

main86120-89140iLN106,111,135,RN105,135,YN106,135..GEN,V198808-199108

MATSUSHITA,AM 5-BUTTON CASSETTE 2SP 1DIN

sub86120-35050

main86120-89141iLN106,111,YN106..LHD198811-198901

MATSUSHITA,AM/FM MPX ETR,LOGIC CASSETTE 1DIN

sub86120-89151

main86120-89142iLN106,111,135,YN106,135..GEN198808-199108

MATSUSHITA,MW/SW/FM 5-BUTTON

main86120-90A13iLN106,111,RN105,110..ARL198808-199108

MATSUSHITA,AM/FM MPX ETR 1DIN

86128KNOB, RADIO RECEIVER

main86128-17070iLN111,RN110..ARL198808-198811

PWR,VOL,TREB

main86128-17090iLN111,RN110..ARL198808-198811

BAL,BASS

main86128-17170iLN106,111,YN106..LHD198811-198901

PWR/VOL

main86128-17190iLN106,111,YN106..LHD198811-198901

BAL,FADE,BASS,TREB

main86128-17310iRN106..ARL;LN106,RN106,YN106..STD..GEN;LN10#,111,13#,RN105,110,13#,VZN130..DLX,SR5199108-200106

PWR/VOL

main86128-17330iRN105..V;RN106..ARL;LN106,135,RN135,YN106..GEN,V;LN107,111,130,RN110,130,VZN130199108-200106

BASS/TREB,BAL/FADE

86203WIRE, RADIO

main86203-17020iLN106,RN105..SR5;LN106,RN105,YN106..LHD;LN111,130,RN110,130,VZN130198808-199108

main86203-17020iLN106,111,YN106..LHD198811-198901

RADIO:86120-17150

main86203-89105iLN106,111,YN106..LHD198811-198901

RADIO:86100-89127

86211BRACKET, RADIO, NO.1

main86211-35020iLN10#,111,RN10#,YN106..LHD199108-200106

main86211-89111iLN13#,RN13#,YN135;LN10#,111,RN10#,110,VZN130,YN106,130..RHD198808-199909

main86211-89112iLN106,111,RN105,YN106..LHD198808-199108

86212BRACKET, RADIO, NO.2

main86212-35020iLN10#,111,RN10#,YN106..LHD199108-200106

main86212-89111iLN13#,RN13#,YN135;LN10#,111,RN10#,110,VZN130,YN106,130..RHD198808-199909

main86212-89112iLN106,111,RN105,YN106..LHD198808-199108

9014950032

main90149-50032

9015350010

main90153-50010

7 parts on this diagram · 2 diagrams in section
