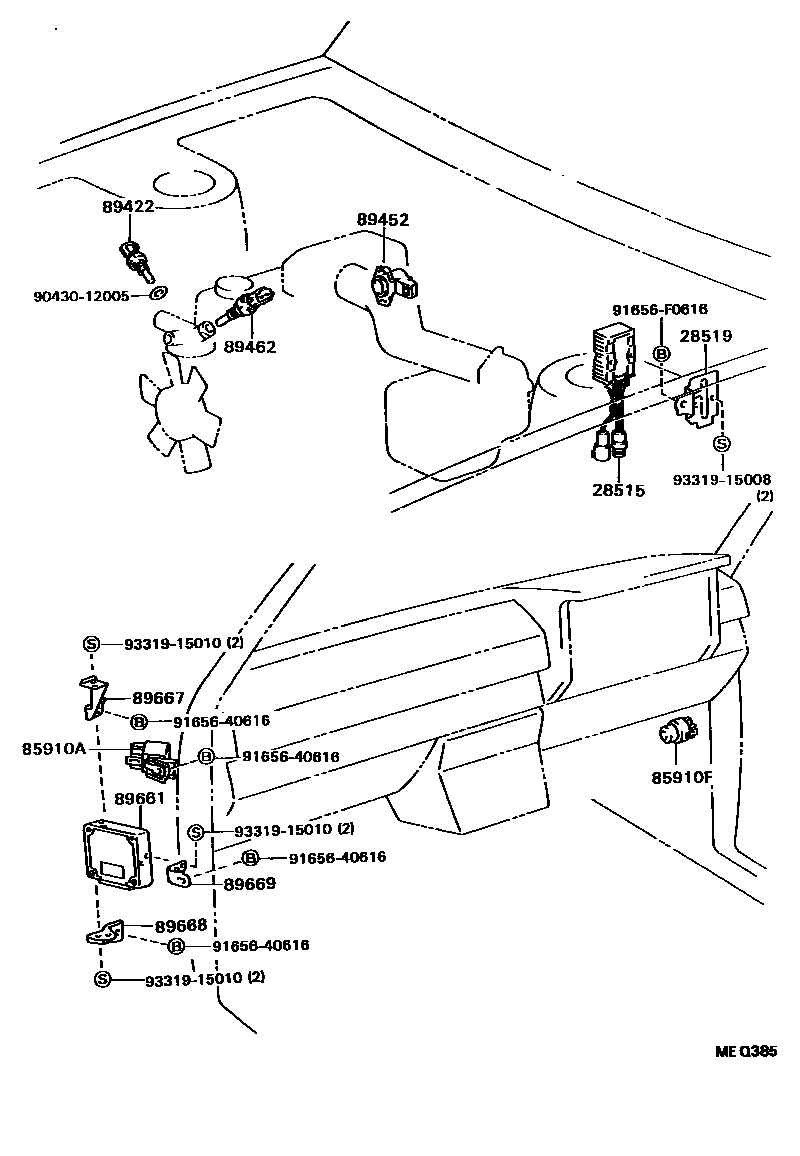

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28515RESISTOR, SOLENOID

main28515-26030i4YE..YN130198908-199008

28519BRACKET, SOLENOID RESISTOR

main28519-35030i4YE..YN130198908-199008

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-35010iRN106,VZN130,YN130..EFI198908-199909

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iVZN130,YN130198908-199108

main90987-02009iRN106,VZN130..EFI199108-199909

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iRN106,YN130..EFI198908-199909

main89422-35010iVZN130199008-199511

main89422-35010iVZN130199108-199308

ENGINE BLOCK

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iVZN130199008-199511

main89452-14040iYN130198908-199008

main89452-22090iRN106..EFI199401-199909

89462SWITCH, START INJECTOR TIME

main89462-20030iYN130198908-199008

main89462-20040iRN106,VZN130..EFI199008-199909

89661COMPUTER, ENGINE CONTROL

main89661-35100iYN130198908-198911

sub89661-35101

main89661-35101iYN130198911-199008

main89661-35510iVZN130..5F199008-199108

sub89661-35511

main89661-35580iVZN130..4FC199008-199108

main89661-35710iVZN130..5F199108-199511

main89661-35770iVZN130..4FC199108-199511

main89661-3D070iRN106..EFI199401-199708

main89661-3D530iRN106..EFI199709-199909

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35030iRN106..EFI199401-199909

main89667-35040iVZN130,YN130198908-199511

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35040iRN106..EFI199401-199909

main89668-35050iYN130198908-199008

main89668-35060iVZN130199008-199511

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35030iRN106..EFI199401-199909

main89669-35040iVZN130,YN130198908-199511

9043012005

main90430-12005

9165640616

main91656-40616

91656F0616

main91656-F0616

9331915008

main93319-15008

9331915010

main93319-15010

16 parts on this diagram · 2 diagrams in section
