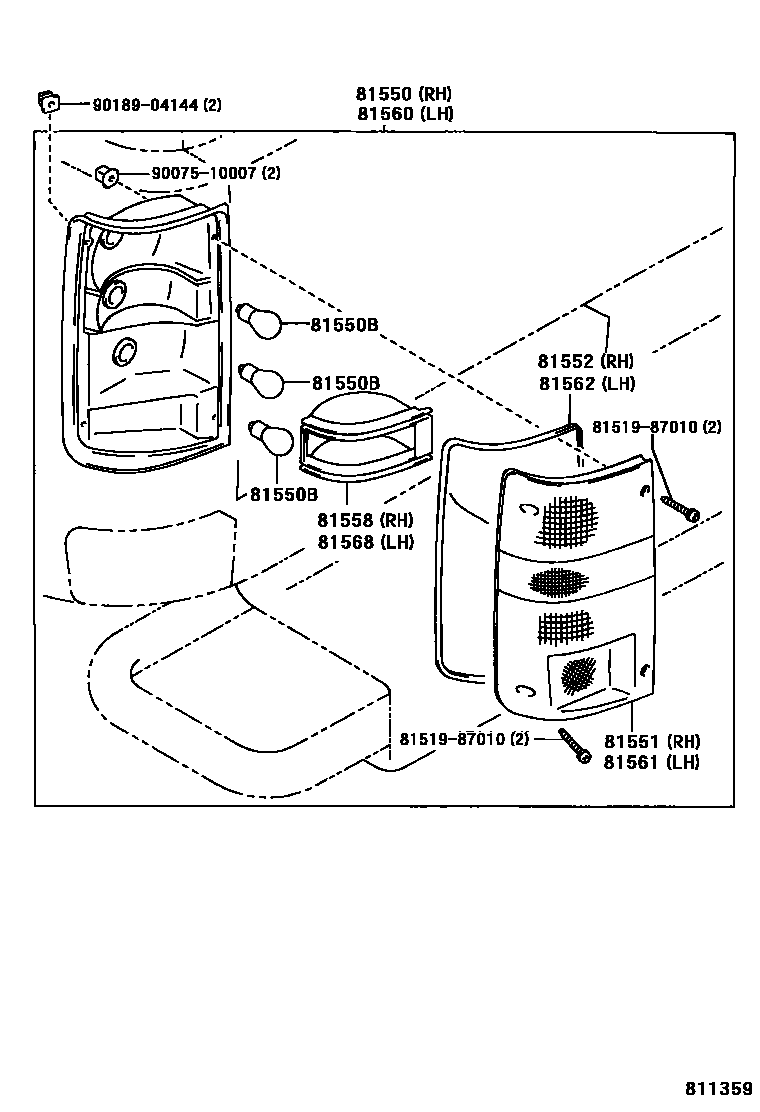

REAR COMBINATION LAMP

0001 1COSTA RICA, FIJI, MALTA SPEC 0002 1 0003 1TYPE 1,BACK UP LAMP SEPARATEL0004 1TYPE 2,BACK UP LAMP INCLUDE

81550LAMP ASSY, REAR COMBINATION, RH

main81550-35060iLN106,111,RN105..ARL..IV3199008-199408

sub81550-35061

main81550-35061iLN106,111,RN105..ARL..IV3199408-199708

main81550-35080iLN13#,RN13#..GEN,V199108-199402

TYPE 2

sub81550-35081

main81550-35081iLN13#,RN13#..GEN,V199402-199511

main81550-35090iLN130,RN130,VZN130..ARL199108-199401

sub81550-35091

main81550-35091iLN130,RN130,VZN130..ARL199401-199511

main81550-35110iLN106..LHD..CBU199208-199408

BRAZIL SPEC

sub81550-35111

main81550-35110iLN10#,111,RN10#,110..ARL..CBU199108-199408

sub81550-35111

main81550-35111iLN106..LHD..CBU199408-199708

BRAZIL SPEC

main81550-35111iRN106..STD..CBR199512-199708

CHINA SPEC

main81550-35111iLN10#,111,RN10#,110..ARL..CBU199408-199812

main81550-89139iLN106,RN105..ARL..IV3198808-199008

main81550-89152iLN106,111,RN105,YN106..GEN..IV3198808-199812

main81550-89163iLN107..ARL199508-199812

NEW ZEALAND SPEC

main81550-89163iLN106..RHD..GEN..IV3199010-199812

COSTA RICA & FIJI SPEC OR MALTA SPEC

main81550-89163iLN106,111,RN105,110,YN106..CBU198808-200106

main81550-89163iLN106,111,YN106..LHD..IV3198808-199708

COSTA RICA & FIJI SPEC

main81550-89165iLN106,RN105,110..ARL..CBU199008-199108

sub81550-35110

main81550-89167iLN135,RN135,YN135198904-199108

TYPE 1

main81550-89169iLN130,RN130,VZN130199008-199108

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iLN106..ARL..IV3;LN111,RN105..ARL,V;LN111,RN105..GEN..CBU;LN10#,13#,RN106,110,13#,VZN130,YN106..CBU198808-200106

12V 21W

main99132-11210iLN106,111,YN106..LHD..IV3198808-199708

12V 21W,COSTA RICA & FIJI SPEC

main99132-11210iLN106..RHD..GEN..IV3199010-199812

12V 21W,COSTA RICA & FIJI SPEC OR MALTA SPEC

main99132-11230iLN106,111,RN105,YN106..GEN..IV3198808-199812

12V 23W

main99132-21210iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLN106,111,RN105,YN106..GEN..IV3198808-199812

main81551-26040iLN106,111,RN105..ARL..IV3198808-199408

sub81551-60180

main81551-35061iLN106,111,RN105..ARL..IV3199408-199708

main81551-35080iLN13#,RN13#..GEN,V199108-199402

sub81551-35081

main81551-35081iLN13#,RN13#..GEN,V199402-199511

main81551-35090iLN130,RN130,VZN130..ARL199108-199402

sub81551-35091

main81551-35091iLN130,RN130,VZN130..ARL199402-199511

main81551-35110iLN10#,111,RN10#,110..ARL..CBU199108-199408

sub81551-35111

main81551-35110iLN106..LHD..CBU199208-199408

BRAZIL SPEC

sub81551-35111

main81551-35111iLN106..LHD..CBU199408-199708

BRAZIL SPEC

main81551-35111iLN10#,111,RN10#,110..ARL..CBU199408-199812

main81551-35111iRN106..STD..CBR199512-199708

CHINA SPEC

main81551-89163iYN106..LHD..IV3;LN106,111..GEN..IV3198808-199708

COSTA RICA & FIJI SPEC

main81551-89163iLN111,YN106..CBU;LN106,RN105..(GEN,V)..CBU198808-200106

main81551-89163iLN106..RHD..GEN..IV3199010-199812

COSTA RICA & FIJI SPEC OR MALTA SPEC

main81551-89163iLN107..ARL199508-199812

NEW ZEALAND SPEC

main81551-89165iLN106,RN105,110..ARL..CBU199008-199108

sub81551-35110

main81551-89167iLN13#,RN13#,YN13#198904-199108

TYPE 1

main81551-89169iLN130,RN130,VZN130199008-199108

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-25060iLN106,111,RN105,YN106..GEN..IV3198808-199812

main81552-26040iLN106,111,RN105..ARL..IV3198808-199708

main81552-89163iLN106,111,YN106..LHD..IV3198808-199708

COSTA RICA & FIJI SPEC

main81552-89163iLN106..RHD..GEN..IV3199010-199812

COSTA RICA & FIJI SPEC OR MALTA SPEC

main81552-89163iLN10#,111,RN10#,110,YN106..CBU198808-200106

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iLN106,111,RN105,YN106..GEN..IV3198808-199812

main81557-26040iLN106,111,RN105..ARL..IV3198808-199708

main81557-89163iLN106,111,YN106..LHD..IV3198808-199708

COSTA RICA & FIJI SPEC

main81557-89163iLN106..RHD..GEN..IV3199010-199812

COSTA RICA & FIJI SPEC OR MALTA SPEC

main81557-89163iLN10#,111,RN10#,110,YN106..CBU198808-200106

81560LAMP ASSY, REAR COMBINATION, LH

main81560-35060iLN106,111,RN105..ARL..IV3199008-199408

sub81560-35061

main81560-35061iLN106,111,RN105..ARL..IV3199408-199708

main81560-35080iLN13#,RN13#..GEN,V199108-199402

sub81560-35081

main81560-35081iLN13#,RN13#..GEN,V199402-199511

main81560-35090iLN130,RN130,VZN130..ARL199108-199401

sub81560-35091

main81560-35091iLN130,RN130,VZN130..ARL199401-199511

main81560-35110iLN106..LHD..CBU199208-199408

BRAZIL SPEC

sub81560-35111

main81560-35110iLN10#,111,RN10#,110..ARL..CBU199108-199408

sub81560-35111

main81560-35111iRN106..STD..CBR199512-199708

CHINA SPEC

main81560-35111iLN10#,111,RN10#,110..ARL..CBU199408-199812

main81560-35111iLN106..LHD..CBU199408-199708

BRAZIL SPEC

main81560-89139iLN106,RN105..ARL..IV3198808-199008

main81560-89152iLN106,111,RN105,YN106..GEN..IV3198808-199812

main81560-89163iYN106..LHD..IV3;LN106,111..GEN..IV3198808-199708

COSTA RICA & FIJI SPEC

main81560-89163iLN111,YN106..CBU;LN106,RN105..(GEN,V)..CBU198808-200106

main81560-89163iLN106..RHD..GEN..IV3199010-199812

COSTA RICA & FIJI SPEC OR MALTA SPEC

main81560-89163iLN107..ARL199508-199812

NEW ZEALAND SPEC

main81560-89165iLN106,RN105,110..ARL..CBU199008-199108

sub81560-35110

main81560-89167iLN135,RN135,YN135198904-199108

TYPE 1

main81560-89169iLN130,RN130,VZN130199008-199108

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLN106,111,RN105,YN106..GEN..IV3198808-199812

main81561-26040iLN106,111,RN105..ARL..IV3198808-199408

sub81561-60080

main81561-35061iLN106,111,RN105..ARL..IV3199408-199708

main81561-35080iLN13#,RN13#..GEN,V199108-199402

sub81561-35081

main81561-35081iLN13#,RN13#..GEN,V199402-199511

main81561-35090iLN130,RN130,VZN130..ARL199108-199402

sub81561-35091

main81561-35091iLN130,RN130,VZN130..ARL199402-199511

main81561-35110iLN10#,111,RN10#,110..ARL..CBU199108-199408

sub81561-35111

main81561-35110iLN106..LHD..CBU199208-199408

BRAZIL SPEC

sub81561-35111

main81561-35111iLN106..LHD..CBU199408-199708

BRAZIL SPEC

main81561-35111iLN10#,111,RN10#,110..ARL..CBU199408-199812

main81561-35111iRN106..STD..CBR199512-199708

CHINA SPEC

main81561-89163iLN106,111,YN106..LHD..IV3198808-199708

COSTA RICA & FIJI SPEC

main81561-89163iLN106,111,RN105,110,YN106..CBU198808-200106

main81561-89163iLN106..RHD..GEN..IV3199010-199812

COSTA RICA & FIJI SPEC OR MALTA SPEC

main81561-89163iLN107..ARL199508-199812

NEW ZEALAND SPEC

main81561-89165iLN106,RN105,110..ARL..CBU199008-199108

sub81561-35110

main81561-89167iLN135,RN135,YN135198904-199108

TYPE 1

main81561-89169iLN130,RN130,VZN130199008-199108

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-89163iLN106..RHD..GEN..IV3199010-199812

COSTA RICA & FIJI SPEC OR MALTA SPEC

main81552-89163iLN10#,111,RN10#,110,YN106..CBU198808-200106

main81552-89163iLN106,111,YN106..LHD..IV3198808-199708

COSTA RICA & FIJI SPEC

main81562-25040iLN106,111,RN105,YN106..GEN..IV3198808-199812

main81562-26040iLN106,111,RN105..ARL..IV3198808-199708

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLN106,111,RN105,YN106..GEN..IV3198808-199812

main81557-26040iLN106,111,RN105..ARL..IV3198808-199708

main81567-89163iLN106..RHD..GEN..IV3199010-199812

COSTA RICA & FIJI SPEC OR MALTA SPEC

main81567-89163iLN106,111,YN106..LHD..IV3198808-199708

COSTA RICA & FIJI SPEC

main81567-89163iLN10#,111,RN10#,110,YN106..CBU198808-200106

8151987010BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-87010

9007510007

main90075-10007

9018904144

main90189-04144

12 parts on this diagram · 4 diagrams in section
