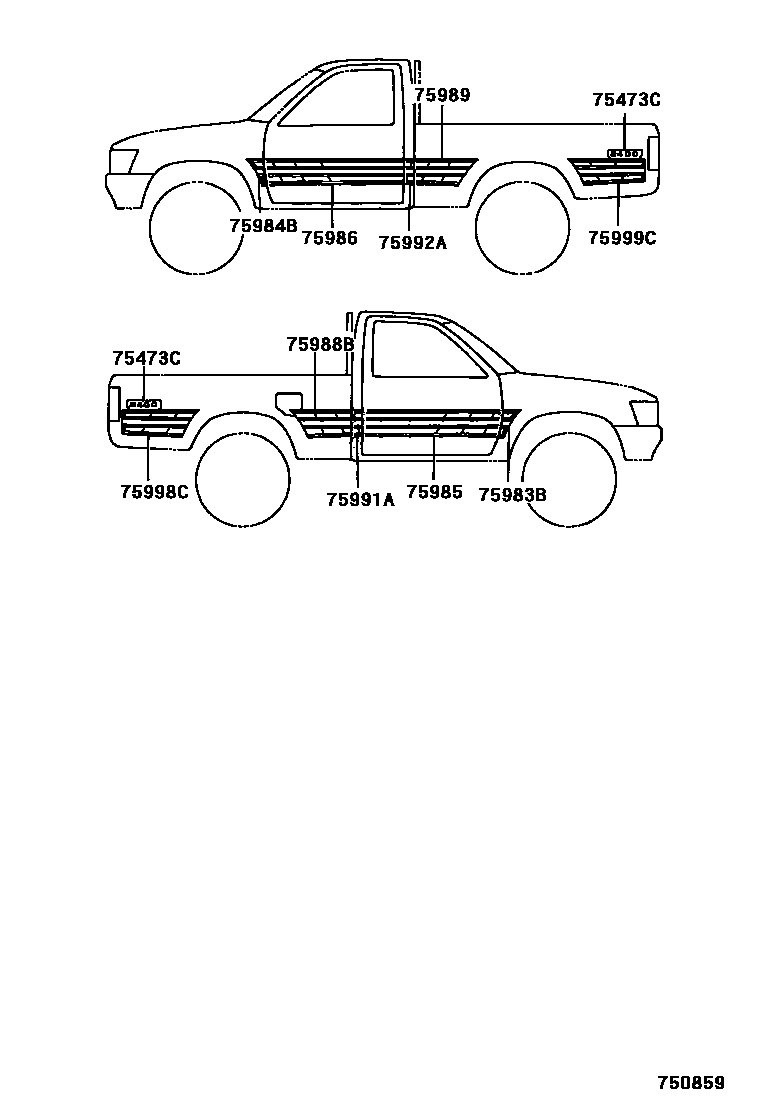

BODY STRIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

75473CPLATE, BODY SIDE NAME

main75473-35120iRN105..V199208-199508

main75473-35140iRN105..V199508-199608

main75473-35150iRN105..V199608-199708

main75473-89119iRN105..V198808-199108

75983BSTRIPE, FRONT FENDER, REAR RH

main75983-89105iLN106,111,RN105,110,YN106..CBU198808-199108

75984BSTRIPE, FRONT FENDER, REAR LH

main75984-89105iLN106,111,RN105,110,YN106..CBU198808-199108

75985STRIPE, FRONT DOOR, RH

main75975-35180iLN10#,111,RN105,110,YN106..T1..CBU199408-200106

main75975-35190iRN106..STD;LN10#,YN106..TW1;RN10#..TW1..(ARL,V)199408-200106

main75985-35150-A0iRN105..T1..V199108-199308

SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7

main75985-35150-A0iRN105..T1..V199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75985-35150-A0iRN105..T1..V199108-199308

SILVER,3H7 ,3K3 ,4J9

main75985-35150-A0iRN105..T1..V199308-199408

SILVER,202 ,3H7 ,3K3 ,751

main75985-35150-A0iRN105..T1..V199308-199408

SILVER,3H7 ,3K3 ,751

main75985-35150-A0iRN105..T1..V199308-199408

SILVER,3H7 ,3K3

main75985-35150-K0iLN106,111,RN105,110,YN106..T1..CBU199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75985-35150-K0iLN106,111,RN105,110,YN106..T1..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75985-35160-A0iLN106,YN106..TW1..GEN..CBU199108-199308

SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7

main75985-35160-A0iLN10#,RN10#..TW1..ARL199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75985-35160-A0iLN10#,RN10#..TW1..ARL199108-199308

SILVER,3H7 ,3K3 ,4J9

main75985-35160-A0iRN105..TW1..V199308-199408

SILVER,3H7 ,3K3 ,751

main75985-35160-A0iLN10#,RN10#..TW1..ARL199308-199408

SILVER,202 ,3H7 ,3K3 ,751

main75985-35160-A0iLN10#,RN10#..TW1..ARL199308-199408

SILVER,3H7 ,3K3

main75985-35160-K0iLN106,YN106..TW1..CBU;LN107,RN10#..TW1..(ARL,V)199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75985-35160-K0iYN106..TW1..CBU;RN10#..TW1..(ARL,V);LN10#,RN106..TW1..(DSL,EFI)..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75985-89179iLN106,111,RN105,110,YN106..T1..CBU198808-199108

main75985-89186iLN106,RN105,YN106..TW1..CBU198808-199108

75986STRIPE, FRONT DOOR, LH

main75976-35180iLN10#,111,RN105,110,YN106..T1..CBU199408-200106

main75976-35190iRN106..STD;LN10#,YN106..TW1;RN10#..TW1..(ARL,V)199408-200106

main75976-89103-02iLN13#,RN13#,VZN130,YN135..4D199008-199108

RED,045 ,3H4 ,3H7 ,4J8

main75976-89103-02iLN13#,RN13#,YN13#..4D198904-199008

RED,045 ,3H4 ,3H7 ,4J8 ,4K4

main75976-89103-03iLN13#,RN13#,YN13#..4D198904-199001

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E2 ,8E3

main75976-89103-03iLN13#,RN13#,YN13#..4D199001-199008

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

main75976-89103-03iLN13#,RN13#,VZN130,YN135..4D199008-199108

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

main75976-89104-02iLN130,RN130,YN130..2D198908-199008

RED,045 ,3H4 ,3H7 ,4J8 ,4K4

main75976-89104-02iRN130,VZN130..2D199008-199108

RED,045 ,3H4 ,3H7 ,4J8

main75976-89104-03iLN130,RN130,YN130..2D198908-199001

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E2 ,8E3

main75976-89104-03iRN130,VZN130..2D199008-199108

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

main75976-89104-03iLN130,RN130,YN130..2D199001-199008

GRAY,147 ,179 ,202 ,6J7 ,8D8 ,8E3

main75986-35150-A0iRN105..T1..V199308-199408

SILVER,202 ,3H7 ,3K3 ,751

main75986-35150-A0iRN105..T1..V199108-199308

SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7

main75986-35150-A0iRN105..T1..V199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75986-35150-A0iRN105..T1..V199108-199308

SILVER,3H7 ,3K3 ,4J9

main75986-35150-A0iRN105..T1..V199308-199408

SILVER,3H7 ,3K3 ,751

main75986-35150-A0iRN105..T1..V199308-199408

SILVER,3H7 ,3K3

main75986-35150-K0iLN106,111,RN105,110,YN106..T1..CBU199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75986-35150-K0iLN106,111,RN105,110,YN106..T1..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75986-35160-A0iLN10#,RN10#..TW1..ARL199308-199408

SILVER,202 ,3H7 ,3K3 ,751

main75986-35160-A0iLN10#,RN10#..TW1..ARL199308-199408

SILVER,3H7 ,3K3

main75986-35160-A0iLN10#,RN10#..TW1..ARL199308-199408

SILVER,3H7 ,3K3 ,751

main75986-35160-A0iLN106,YN106..TW1..GEN..CBU199108-199308

SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7

main75986-35160-A0iLN106,YN106..TW1..GEN..CBU199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75986-35160-A0iLN10#,RN10#..TW1..ARL199108-199308

SILVER,3H7 ,3K3 ,4J9

main75986-35160-K0iLN106,YN106..TW1..CBU;LN107,RN10#..TW1..(ARL,V)199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75986-35160-K0iYN106..TW1..CBU;RN10#..TW1..(ARL,V);LN10#,RN106..TW1..(DSL,EFI)..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75986-89177iLN106,111,RN105,110,YN106..T1..CBU198808-199108

main75986-89184iLN106,RN105,YN106..TW1..CBU198808-199108

75988BSTRIPE, REAR DECK, FRONT RH

main75988-89134iLN106,RN105,YN106..T1..CBU198808-199108

main75988-89135iLN111,RN110..CBU198808-199108

75989STRIPE, REAR DECK, FRONT LH

main75989-89133iLN106,RN105,YN106..T1..CBU198808-199108

main75989-89134iLN111,RN110..CBU198808-199108

75991ASTRIPE, QUARTER, RH

main75991-35050-A0iRN105..T1..V199308-199408

SILVER,202 ,3H7 ,3K3 ,751

main75991-35050-A0iLN106,YN106..T1..GEN..CBU199308-199408

SILVER,3H7 ,3K3

main75991-35050-A0iRN105..T1..V199308-199408

SILVER,3H7 ,3K3 ,751

main75991-35050-A0iLN106,RN105..STD..ARL..CBU199108-199308

SILVER,3H7 ,3K3 ,4J9

main75991-35050-A0iLN106,RN105..STD..ARL..CBU199108-199308

SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7

main75991-35050-A0iLN106,RN105..STD..ARL..CBU199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75991-35050-K0iLN106,RN105,YN106..T1..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75991-35050-K0iLN106,RN105,YN106..T1..CBU199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75991-35060-A0iLN111,RN110..ARL..CBU199308-199408

SILVER,3H7 ,3K3

main75991-35060-A0iLN111..GEN..CBU199308-199408

SILVER,3H7 ,3K3 ,751

main75991-35060-A0iLN111,RN110..ARL199108-199308

SILVER,3H7 ,3K3 ,4J9

main75991-35060-A0iLN111,RN110..ARL199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75991-35060-K0iLN111,RN110..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75991-35060-K0iLN111,RN110..CBU199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75991-35070-A0iLN10#,RN10#..TW1..ARL199308-199408

SILVER,3H7 ,3K3

main75991-35070-A0iRN105..TW1..V199108-199308

SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7

main75991-35070-A0iRN105..TW1..V199108-199308

SILVER,3H7 ,3K3 ,4J9

main75991-35070-A0iRN105..TW1..V199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75991-35070-A0iRN105..TW1..V199308-199408

SILVER,202 ,3H7 ,3K3 ,751

main75991-35070-A0iRN105..TW1..V199308-199408

SILVER,3H7 ,3K3 ,751

main75991-35070-K0iLN106,YN106..TW1..CBU;LN107,RN10#..TW1..(ARL,V)199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75991-35070-K0iYN106..TW1..CBU;RN10#..TW1..(ARL,V);LN10#,RN106..TW1..(DSL,EFI)..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75991-35270iLN10#,RN105,YN106..T1..CBU199408-200106

main75991-35280iLN111,RN110..CBU199408-199708

main75991-35290iRN106..STD;LN10#,YN106..TW1;RN10#..TW1..(ARL,V)199408-200106

main75991-89108iLN106,RN105,YN106..T1..CBU198808-199108

main75991-89110iLN111,RN110..CBU198808-199108

main75991-89111iLN106,RN105,YN106..TW1..CBU198808-199108

main75991-89113-02iLN130,RN130,YN130..2D198908-199008

RED,045 ,3H4 ,4J8

main75991-89113-02iRN130,VZN130..2D199008-199108

RED,045 ,3H4 ,3H7 ,4J8

main75991-89113-03iRN130,VZN130..2D199008-199108

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

main75991-89113-03iLN130,RN130,YN130..2D198908-199008

GRAY,179 ,6J7

75992ASTRIPE, QUARTER, LH

main75992-35050-A0iLN106,RN105..STD..ARL..CBU199308-199408

SILVER,3H7 ,3K3

main75992-35050-A0iRN105..T1..V199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75992-35050-A0iRN105..T1..V199108-199308

SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7

main75992-35050-A0iRN105..T1..V199108-199308

SILVER,3H7 ,3K3 ,4J9

main75992-35050-A0iLN106,YN106..T1..GEN..CBU199308-199408

SILVER,3H7 ,3K3 ,751

main75992-35050-A0iLN106,YN106..T1..GEN..CBU199308-199408

SILVER,202 ,3H7 ,3K3 ,751

main75992-35050-K0iLN106,RN105,YN106..T1..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75992-35050-K0iLN106,RN105,YN106..T1..CBU199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75992-35060-A0iLN111..GEN..CBU199308-199408

SILVER,3H7 ,3K3

main75992-35060-A0iLN111,RN110..ARL..CBU199308-199408

SILVER,3H7 ,3K3 ,751

main75992-35060-A0iLN111..GEN..CBU199108-199308

SILVER,3H7 ,3K3 ,4J9

main75992-35060-A0iLN111..GEN..CBU199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75992-35060-K0iLN111,RN110..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75992-35060-K0iLN111,RN110..CBU199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75992-35070-A0iRN105..TW1..V199108-199308

SILVER,3H7 ,3K3 ,4J9

main75992-35070-A0iLN10#,RN10#..TW1..ARL199308-199408

SILVER,3H7 ,3K3 ,751

main75992-35070-A0iLN106,RN106,YN106..TW1..STD..CBU199308-199408

SILVER,202 ,3H7 ,3K3 ,751

main75992-35070-A0iLN106,RN106,YN106..TW1..STD..CBU199308-199408

SILVER,3H7 ,3K3

main75992-35070-A0iRN105..TW1..V199108-199308

SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7

main75992-35070-A0iLN106,YN106..TW1..GEN..CBU199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75992-35070-K0iYN106..TW1..CBU;RN10#..TW1..(ARL,V);LN10#,RN106..TW1..(DSL,EFI)..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75992-35070-K0iLN106,YN106..TW1..CBU;LN107,RN10#..TW1..(ARL,V)199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75992-35270iLN10#,RN105,YN106..T1..CBU199408-200106

main75992-35280iLN111,RN110..CBU199408-199708

main75992-35290iRN106..STD;LN10#,YN106..TW1;RN10#..TW1..(ARL,V)199408-200106

main75992-89108iLN106,RN105,YN106..T1..CBU198808-199108

main75992-89110iLN111,RN110..CBU198808-199108

main75992-89111iLN106,RN105,YN106..TW1..CBU198808-199108

main75992-89113-02iLN130,RN130,YN130..2D198908-199008

RED,045 ,3H4 ,4J8

main75992-89113-02iRN130,VZN130..2D199008-199108

RED,045 ,3H4 ,3H7 ,4J8

main75992-89113-03iRN130,VZN130..2D199008-199108

GRAY,147 ,179 ,202 ,6J7 ,8D7 ,8D8 ,8E3

main75992-89113-03iLN130,RN130,YN130..2D198908-199008

GRAY,179 ,6J7

75998CSTRIPE, REAR DECK, REAR RH

main75998-35010-A0iLN111..GEN..CBU199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75998-35010-A0iLN111,RN110..ARL..CBU199308-199408

SILVER,3H7 ,3K3 ,751

main75998-35010-A0iLN111,RN110..ARL..CBU199308-199408

SILVER,3H7 ,3K3

main75998-35010-A0iLN111,RN110..ARL199108-199308

SILVER,3H7 ,3K3 ,4J9

main75998-35010-K0iLN111,RN110..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75998-35010-K0iLN111,RN110..CBU199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75998-35020-A0iLN106,RN106,YN106..STD..GEN..CBU199308-199408

SILVER,3H7 ,3K3

main75998-35020-A0iRN105..V199108-199308

SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7

main75998-35020-A0iRN105..V199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75998-35020-A0iRN105..V199108-199308

SILVER,3H7 ,3K3 ,4J9

main75998-35020-A0iLN10#,RN10#..ARL..CBU199308-199408

SILVER,3H7 ,3K3 ,751

main75998-35020-A0iLN106,RN106,YN106..STD..GEN..CBU199308-199408

SILVER,202 ,3H7 ,3K3 ,751

main75998-35020-K0iRN106..EFI;LN10#,YN106..CBU;RN10#..(ARL,V)..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75998-35020-K0iLN10#,YN106..CBU;RN10#..(ARL,V)..CBU199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75998-89127iLN111,RN110..CBU198808-199108

main75998-89129iLN106,RN105,YN106..CBU198808-199108

75999CSTRIPE, REAR DECK, REAR LH

main75999-35010-A0iLN111,RN110..ARL..CBU199308-199408

SILVER,3H7 ,3K3

main75999-35010-A0iLN111..GEN..CBU199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75999-35010-A0iLN111..GEN..CBU199308-199408

SILVER,3H7 ,3K3 ,751

main75999-35010-A0iLN111..GEN..CBU199108-199308

SILVER,3H7 ,3K3 ,4J9

main75999-35010-K0iLN111,RN110..CBU199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75999-35010-K0iLN111,RN110..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75999-35020-A0iLN10#,RN10#..ARL..CBU199108-199308

SILVER,202 ,3H7 ,3K3 ,4J9 ,6J7

main75999-35020-A0iLN10#,RN10#..ARL..CBU199108-199308

SILVER,3H7 ,3K3 ,4J9 ,6J7

main75999-35020-A0iLN10#,RN10#..ARL..CBU199108-199308

SILVER,3H7 ,3K3 ,4J9

main75999-35020-A0iRN105..V199308-199408

SILVER,202 ,3H7 ,3K3 ,751

main75999-35020-A0iLN106,RN106,YN106..STD..GEN..CBU199308-199408

SILVER,3H7 ,3K3

main75999-35020-A0iLN106,RN106,YN106..STD..GEN..CBU199308-199408

SILVER,3H7 ,3K3 ,751

main75999-35020-K0iRN106..EFI;LN10#,YN106..CBU;RN10#..(ARL,V)..CBU199208-199408

BLUE SILVER,045 ,179 ,196 ,8E2 ,8H8

main75999-35020-K0iLN10#,YN106..CBU;RN10#..(ARL,V)..CBU199108-199208

BLUE SILVER,045 ,147 ,179 ,8E2 ,8H8

main75999-89127iLN111,RN110..CBU198808-199108

main75999-89129iLN106,RN105,YN106..CBU198808-199108

11 parts on this diagram · 10 diagrams in section
