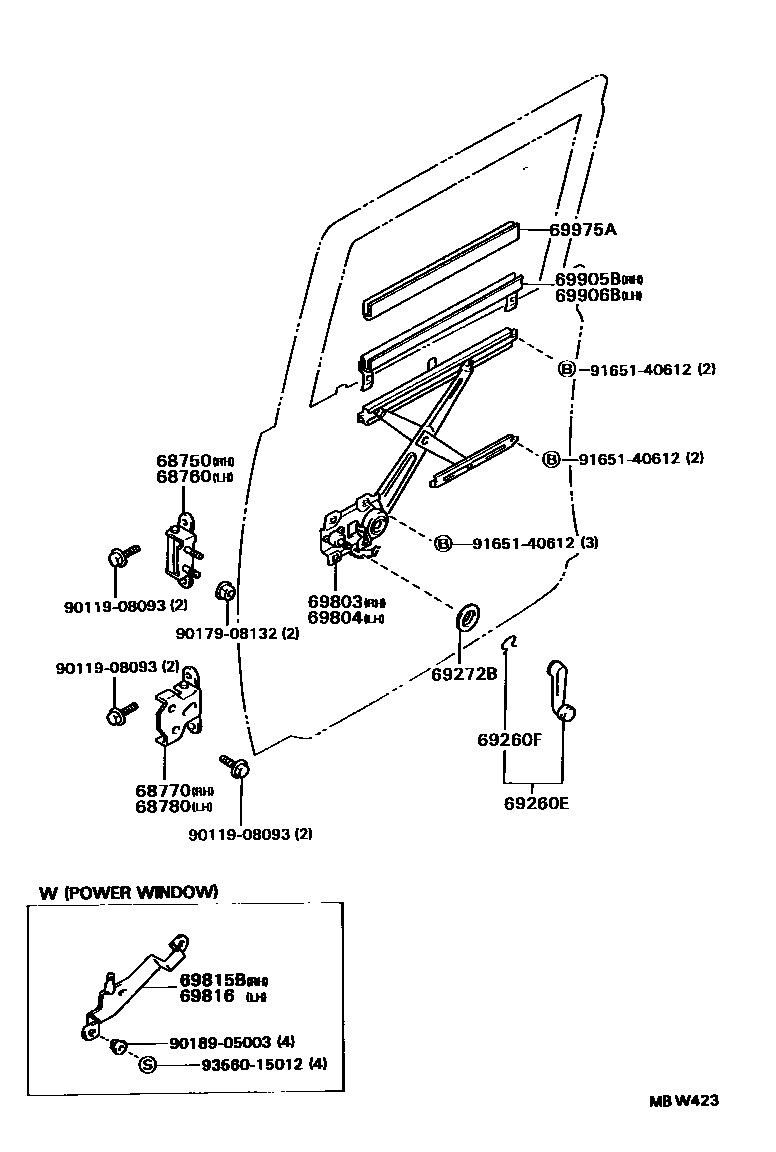

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-35010iLN10#,13#,RN10#,13#,VZN130,YN106..4D,TW1199108-199309

sub68750-35011

main68750-35011iLN10#,13#,RN10#,13#,VZN130,YN106..4D,TW1199309-200106

main68750-89102iLN106,13#,RN105,13#,VZN130,YN106,13#..4D,TW1198808-199108

sub68750-35010

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-35010iLN10#,13#,RN10#,13#,VZN130,YN106..4D,TW1199108-199309

sub68760-35011

main68760-35011iLN10#,13#,RN10#,13#,VZN130,YN106..4D,TW1199309-200106

main68760-89102iLN106,13#,RN105,13#,VZN130,YN106,13#..4D,TW1198808-199108

sub68760-35010

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20040iLN106,13#,RN105,13#,VZN130,YN106,13#..4D,TW1198808-199108

main68770-35010iLN10#,13#,RN10#,13#,VZN130,YN106..4D,TW1199108-200106

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20040iLN106,13#,RN105,13#,VZN130,YN106,13#..4D,TW1198808-199108

main68780-35010iKZN205,LN205..TW1199108-200106

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-89104-02iLN135,YN135199008-199108

RED,TRIM3#

sub69260-89104

main69260-89104-03iLN106,RN105,YN106..TW1198808-198901

GRAY,TRIM1#

sub69260-89104

main69260-89104-04iLN106,RN105,YN106..TW1198808-198901

BLUE,TRIM8#

sub69260-89104

main69260-89104-06iLN106,RN105,YN106..TW1198808-198901

BROWN,TRIM4#

sub69260-89104

main69260-89104-B0iLN205..TW1..DLX198901-200412

MEDIUM GRAY,TRIM1#

sub69260-89104

main69260-89104-D0iRN105..TW1..V199109-199708

RED,TRIM3#

sub69260-89104

main69260-89104-E0iLN106,13#,RN105,13#,VZN130,YN106,13#..4D,TW1198901-199108

BROWN,TRIM4#

sub69260-89104

main69260-89104-J0iRN105..TW1..V;LN13#,RN13#,VZN130198901-199708

MEDIUM BLUE,TRIM8#

sub69260-89104

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1198808-200106

sub90520-01274

main90520-01274iLN205..TW1..DLX200106

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-16010iLN106,13#,RN105,13#,VZN130,YN106,13#..4D,TW1198808-199108

sub69268-20020

main69268-20020iLN205..TW1..DLX199108-200106

sub69285-22010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-35010iLN107..TW1..SR5..GEN;LN106,RN106,YN106..LHD..TW1..STD199508-200106

W(POWER WINDOW)

main69803-89103iLN10#,RN10#,YN106..TW1198808-200106

main69803-89104iLN13#,RN13#,VZN130,YN13#..4D198904-199511

main69803-89105iVZN130..4D;LN13#,RN13#,YN135..LHD198907-199511

W(POWER WINDOW)

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-35010iKZN205,LN205..SR5,SRV199508-200106

W(POWER WINDOW)

main69804-89103iLN205..TW1..DLX198808-200106

main69804-89104iLN13#,RN13#,VZN130,YN13#..4D198904-199511

main69804-89105iVZN130..4D;LN13#,RN13#,YN135..LHD198907-199511

W(POWER WINDOW)

69815BPLATE, BASE SETTING, RH

main69815-35010iLN107..TW1..SR5..GEN;LN106,RN106,YN106..LHD..TW1..STD199508-200106

69816PLATE, BASE SETTING, LH

main69816-35010iLN107..TW1..SR5..GEN;LN106,RN106,YN106..LHD..TW1..STD199508-200106

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-89104iLN106,RN106,YN106..LHD..TW1..STD199508-199612

W(*EL)

main69905-89104iLN10#,RN10#,YN106..TW1198808-200106

GLASS T=3.5

main69905-89105iLN10#,RN10#,YN106..TW1199001-200106

GLASS T=4.0

main69905-89106iLN13#,RN13#,VZN130,YN13#..4D198904-199511

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-89104iLN106,RN106,YN106..LHD..TW1..STD199508-199612

W(*EL)

main69905-89104iLN10#,RN10#,YN106..TW1198808-200106

GLASS T=3.5

main69905-89105iLN10#,RN10#,YN106..TW1199001-200106

GLASS T=4.0

main69906-89104iLN13#,RN13#,VZN130,YN13#..4D198904-199511

69975AFILLER, REAR DOOR GLASS CHANNEL

main69971-89108iLN106,RN106,YN106..LHD..TW1..STD199508-199612

W(*EL)

sub69971-89106

main69971-89108iLN10#,RN10#,YN106..TW1198808-200106

GLASS T=3.5

sub69971-89106

main69971-89110iLN13#,RN13#,VZN130,YN13#..4D198904-199511

sub69971-89103

main69975-89102iLN10#,RN10#,YN106..TW1199001-200106

GLASS T=4.0

sub69971-89108

9011908093

main90119-08093

9017908132

main90179-08132

9018905003

main90189-05003

9165140612

main91651-40612

9356015012

main93560-15012

19 parts on this diagram · 2 diagrams in section
