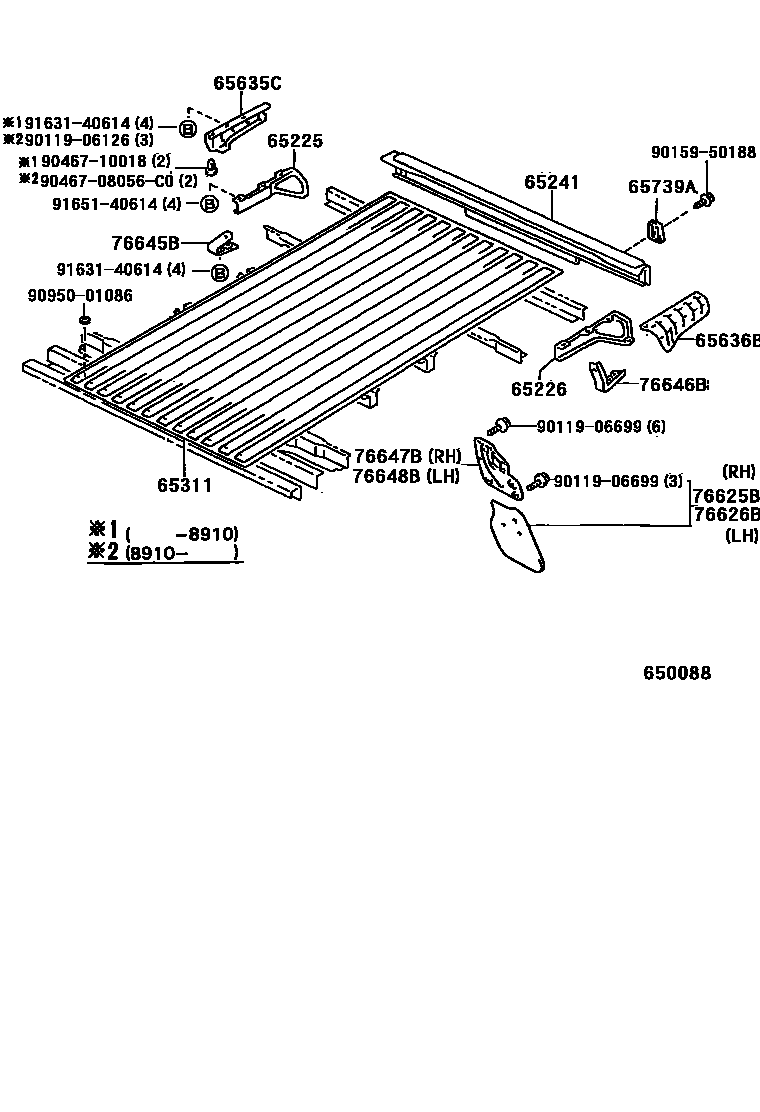

REAR BODY FLOOR & FENDER

65225REINFORCEMENT, FLOOR PANEL, REAR RH

main65225-89102iLN10#,RN10#,YN106..CBU198808-200106

main65225-89103iLN111,RN110..CBU198808-199708

65226REINFORCEMENT, FLOOR PANEL, REAR LH

main65226-89101iLN10#,RN10#,YN106..CBU198808-200106

main65226-89102iLN111,RN110..CBU198808-199708

65241SILL, REAR CROSS

main65240-89130iLN10#,111,RN10#,110,YN106..CBU198808-200106

65311PANEL, FLOOR, CENTER

main65311-89127iLN10#,RN10#,YN106..TW1..CBU198808-200106

main65311-89128iLN111,RN110..CBU198808-199708

main65311-89129iLN10#,RN105,YN106..T1..CBU198808-200106

65635CPLATE, REAR WHEEL HOUSE, REAR RH

main65635-89111iLN10#,RN10#,YN106..CBU198808-200106

main65635-89112iLN111,RN110..CBU198808-199708

65636BPLATE, REAR WHEEL HOUSE, REAR LH

main65636-89110iLN10#,RN10#,YN106..CBU198808-200106

main65636-89111iLN111,RN110..CBU198808-199708

65739ABUMPER, TAIL GATE

main65739-89101iLN10#,111,RN10#,110,YN106..CBU198808-200106

W(REAR BUMPER)

main65739-89103iRN10#..ARL..CBU;LN10#,YN106..CBU;LN111,RN106..(DLX,STD)..CBU198808-200106

main65739-89103iRN105..V199212-199708

W/O REAR BUMPER

76625BMUDGUARD, REAR BODY, RH

main76625-39205iLN111,RN110,YN106..CBU;LN106,RN10#..(GEN,V)..CBU198808-199211

sub76625-39206

main76625-39206iLN107..ARL199512-199812

NEW ZEALAND SPEC

sub76625-39208

main76625-39206iLN111,RN110..CBU;LN10#,RN10#,YN106..(GEN,V)..CBU199211-200106

sub76625-39208

main76625-39295iLN10#,RN10#..ARL..CBU199008-199211

sub76625-39296

main76625-39296iLN10#,RN10#..ARL..CBU199211-199810

main76625-39585iLN107..ARL199810-199812

76626BMUDGUARD, REAR BODY, LH

main76626-39205iLN106,111,RN105,110,YN106..CBU198808-199211

sub76626-39206

main76626-39206iLN107..ARL199512-199812

NEW ZEALAND SPEC

sub76626-39208

main76626-39206iLN111,RN110..CBU;LN10#,RN10#,YN106..(GEN,V)..CBU199211-200106

sub76626-39208

main76626-39295iLN10#,RN10#..ARL..CBU199008-199211

sub76626-39296

main76626-39296iLN10#,RN10#..ARL..CBU199211-199810

main76626-39585iLN107..ARL199810-199812

76645BBRACKET, REAR BODY MUDGUARD, RH

main76645-89101iLN10#,111,RN10#,110,YN106..CBU198808-200412

76646BBRACKET, REAR BODY MUDGUARD, LH

main76646-89101iLN10#,111,RN10#,110,YN106..CBU198808-200412

76647BSUPPORT, REAR BODY MUDGUARD, RH

main76647-89106iLN10#,111,RN10#,110,YN106..CBU198808-200106

76648BSUPPORT, REAR BODY MUDGUARD, LH

main76648-89106iLN10#,111,RN10#,110,YN106..CBU198808-200106

9011906126

main90119-06126

9011906699

main90119-06699

9015950188

main90159-50188

9046708056C0

main90467-08056C0

9046710018

main90467-10018

9095001086

main90950-01086

9163140614

main91631-40614

9165140614

main91651-40614

21 parts on this diagram · 1 diagram in section
