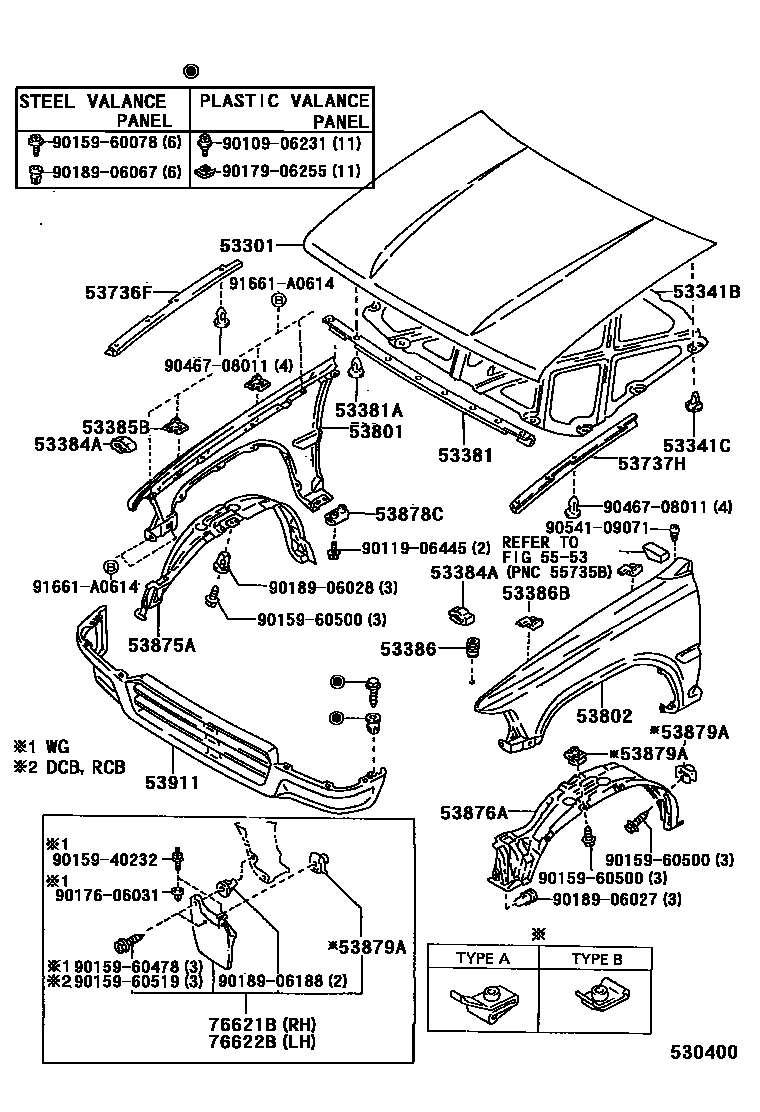

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
BLACK,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E2 ,8E3
BLACK,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E2 ,8E3
BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2
BLACK,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2
BLACK,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E3
BLACK,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E3
BLACK,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7 ,4J8 ,6J7 ,8D7 ,8D8 ,8E3
BLACK,045 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2 ,8H9
BLACK,045 ,147 ,179 ,3H4 ,3H7 ,4J9 ,6K3 ,8D8 ,8E2 ,8H8 ,8H9
BLACK,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,6J7 ,8D7 ,8D8 ,8E3
BLACK,045 ,147 ,179 ,202 ,3H7 ,3K3 ,6J7 ,8E3
BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2 ,8H8
BLACK,045 ,147 ,179 ,202 ,25T ,27L ,3H7 ,3K3 ,6J7 ,8E3
BLACK,045 ,147 ,179 ,3H7 ,3K3 ,4J9 ,8E2 ,8H8
BLACK,045 ,179 ,196 ,3H7 ,3K3 ,4J9 ,6J7 ,8E2 ,8H8
BLACK,045 ,179 ,196 ,202 ,25T ,27L ,3H7 ,3K3 ,6J7 ,8E3
BLACK,045 ,179 ,196 ,3H7 ,3K3 ,751 ,8E2 ,8H8
BLACK,045 ,179 ,196 ,202 ,25T ,3H7 ,3K3 ,751 ,8E3 ,8J8
BLACK,045 ,179 ,196 ,3H7 ,3K3 ,8E2 ,8H8
BLACK,045 ,179 ,196 ,202 ,3H7 ,3K3 ,751 ,8E3 ,8J8
BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2
BLACK,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BUMPER, HOOD, REAR
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53736FSEAL, FRONT FENDER APRON, RH
53737HSEAL, FRONT FENDER APRON, LH
53801FENDER SUB-ASSY, FRONT RH
W(FRONT WHEEL OPENING EXTENTION)
W(RADIO)
W(RADIO)
CHINA SPEC & W(RADIO)
CHINA SPEC
NEW ZEALAND SPEC
53802FENDER SUB-ASSY, FRONT LH
W(FRONT WHEEL OPENING EXTENTION)
W(RADIO)
CHINA SPEC
W(RADIO)
W(RADIO)
NEW ZEALAND SPEC
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
TYPE A
TYPE B
TYPE B,BLACK
53911PANEL, FRONT VALANCE
NO PAINT REQ.,W(FRONT WHEEL OPENING EXTENTION)
SILVER M,27L
BLUE GRAY M,25T
NO PAINT REQ.,W(FRONT WHEEL OPENING EXTENTION),SILVER M,27L
NO PAINT REQ.,W(FRONT WHEEL OPENING EXTENTION),BLUE GRAY M,25T
NO PAINT REQ.
W(FRONT WHEEL OPENING EXTENTION),SILVER M.,27L
W(FRONT WHEEL OPENING EXTENTION),BLUE GRAY M.,25T
NO PAINT REQ.,W(WINCH)
PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,CHROME PLATED PACKAGE
NO PAINT REQ.,CHROME PLATED PACKAGE
NO PAINT REQ.,W(WINCH)
NO PAINT REQ.,CHROME PLATED PACKAGE & W(WINCH)
NO PAINT REQ.,W(WINCH)
NO PAINT REQ.,CHROME PLATED PACKAGE & W(WINCH)
SILVER.M,27L
D.GRAY.M,28L
5553
76621BMUDGUARD, FRONT BODY, RH
W(FRONT WHEEL OPENING EXTENTION)
76622BMUDGUARD, FRONT BODY, LH
W(FRONT WHEEL OPENING EXTENTION)
9010906231
9011906445
9015940232
9015960078
9015960478
9015960500
9015960519
9017606031
9017906255
9018906027
9018906028
9018906067
9018906188
9046708011
9054109071
91661A0614
37 parts on this diagram · 3 diagrams in section
