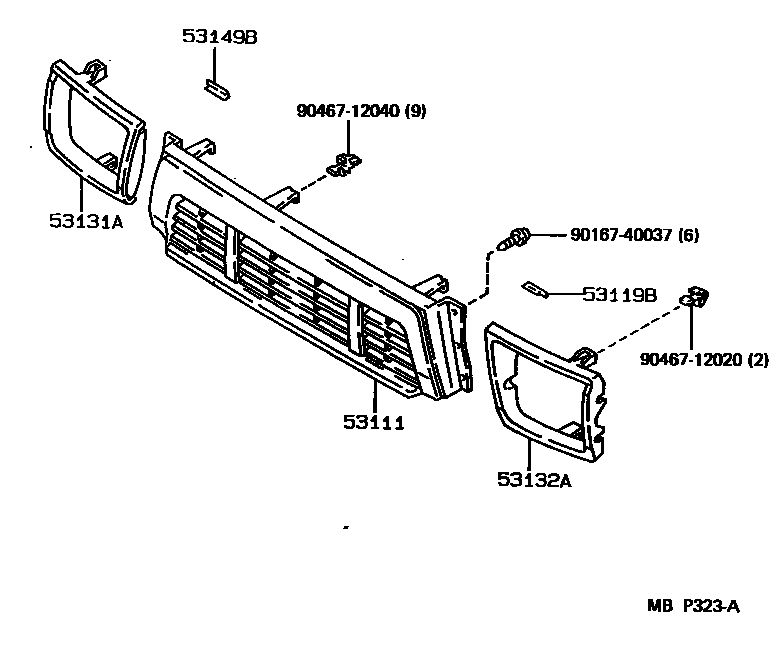

RADIATOR GRILLE

0001 1 0002 1 0004 1 0005 1 0006 1

53111GRILLE, RADIATOR

main53111-35130iLN106,111,RN10#,YN106..DLX,STD199108-199408

NO PAINT REQ.

main53111-35140iLN107,111,RN106,110..SR5199108-199408

NO PAINT REQ.

main53111-35150iLN106,111,RN105,YN106..GEN,V199108-199208

PLATED

main53111-35151iLN107,111,RN110,YN106;LN106,RN10#..TW1..ARL;LN106,RN10#..(DLX,STD)..(GEN,V)199402-199408

PLATED

main53111-35160iVZN130199108-199511

NO PAINT REQ.

main53111-35170iVZN130;LN13#,RN13#..GEN199108-199308

PLATED

main53111-35171iVZN130;LN13#,RN13#..GEN199308-199511

PLATED

main53111-35180iLN13#,RN13#..DLX199108-199511

NO PAINT REQ.

main53111-35300iLN107..ARL;LN106,111,RN10#,110,YN106199408-199909

NO PAINT REQ.

main53111-35310iLN107,111,RN110,YN106;LN106,RN10#..TW1..ARL;LN106,RN10#..(DLX,STD)..(GEN,V)199408-200106

PLATED

main53111-89136iLN106,RN105,YN106..STD198808-199108

NO PAINT REQ.

main53111-89137iLN106,111,RN105,110..DLX,SR5198808-199108

NO PAINT REQ.

main53111-89138iLN106,111,RN105,YN106..GEN,V198808-199108

PLATED

main53111-89140iLN106..RHD..GEN..CBU198910-199010

NO PAINT REQ.,VW BRAND

main53111-89142iLN106..RHD..GEN..CBU198910-199010

PLATED,VW BRAND

main53111-89143iLN135,RN135,YN135198904-198908

NO PAINT REQ.

main53111-89144iRN135198908-199108

PLATED

53119BPROTECTOR, RADIATOR GRILLE

main53119-35010iLN13#,RN13#,VZN130199108-199511

main53119-89105iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-199108

53131ADOOR, HEADLAMP, RH

main53131-35030iLN107,111,RN110,YN106;LN106,RN10#..TW1..ARL;LN106,RN10#..(DLX,STD)..(GEN,V)199408-200106

CHROME PLATED PACKAGE

main53131-35050iLN106,111,RN10#,YN106..DLX,STD199108-199408

main53131-35060iLN107,111,RN106,110..SR5199108-199408

main53131-35070iLN107,111,RN110,YN106;LN106,RN10#..TW1..ARL;LN106,RN10#..(DLX,STD)..(GEN,V)199208-199402

CHROME PLATED PACKAGE

main53131-35071iLN107,111,RN110,YN106;LN106,RN10#..TW1..ARL;LN106,RN10#..(DLX,STD)..(GEN,V)199402-199408

CHROME PLATED PACKAGE

main53131-35100iLN107..ARL;LN106,111,RN10#,110,YN106199408-199909

main53131-89118iLN106,111,13#,RN105,130,YN106,135..DLX,STD198808-199108

main53131-89119iLN111,RN110,135..SR5198808-198908

main53131-89121iLN106,111,RN105,YN106..GEN,V198808-199108

CHROME PLATED PACKAGE

main53131-89126iRN135198908-199108

CHROME PLATED PACKAGE

53132ADOOR, HEADLAMP, LH

main53132-35030iLN107,111,RN110,YN106;LN106,RN10#..TW1..ARL;LN106,RN10#..(DLX,STD)..(GEN,V)199408-200106

CHROME PLATED PACKAGE

main53132-35050iLN106,111,RN10#,YN106..DLX,STD199108-199408

main53132-35060iLN107,111,RN106,110..SR5199108-199408

main53132-35070iLN106,111,RN105,YN106..GEN,V199108-199208

CHROME PLATED PACKAGE

main53132-35071iLN107,111,RN110,YN106;LN106,RN10#..TW1..ARL;LN106,RN10#..(DLX,STD)..(GEN,V)199402-199408

CHROME PLATED PACKAGE

main53132-35100iLN107..ARL;LN106,111,RN10#,110,YN106199408-199909

main53132-89117iLN106,111,13#,RN105,130,YN106,135..DLX,STD198808-199108

main53132-89118iLN111,RN110,135..SR5198808-198908

main53132-89120iLN106,111,RN105,YN106..GEN,V198808-199108

CHROME PLATED PACKAGE

main53132-89125iRN135198908-199108

CHROME PLATED PACKAGE

53149BPROTECTOR, HEADLAMP DOOR, NO.3

main53149-35010iLN13#,RN13#,VZN130199108-199511

main53149-89101iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-199108

9016740037

main90167-40037

9046712020

main90467-12020

9046712040

main90467-12040

8 parts on this diagram · 5 diagrams in section
