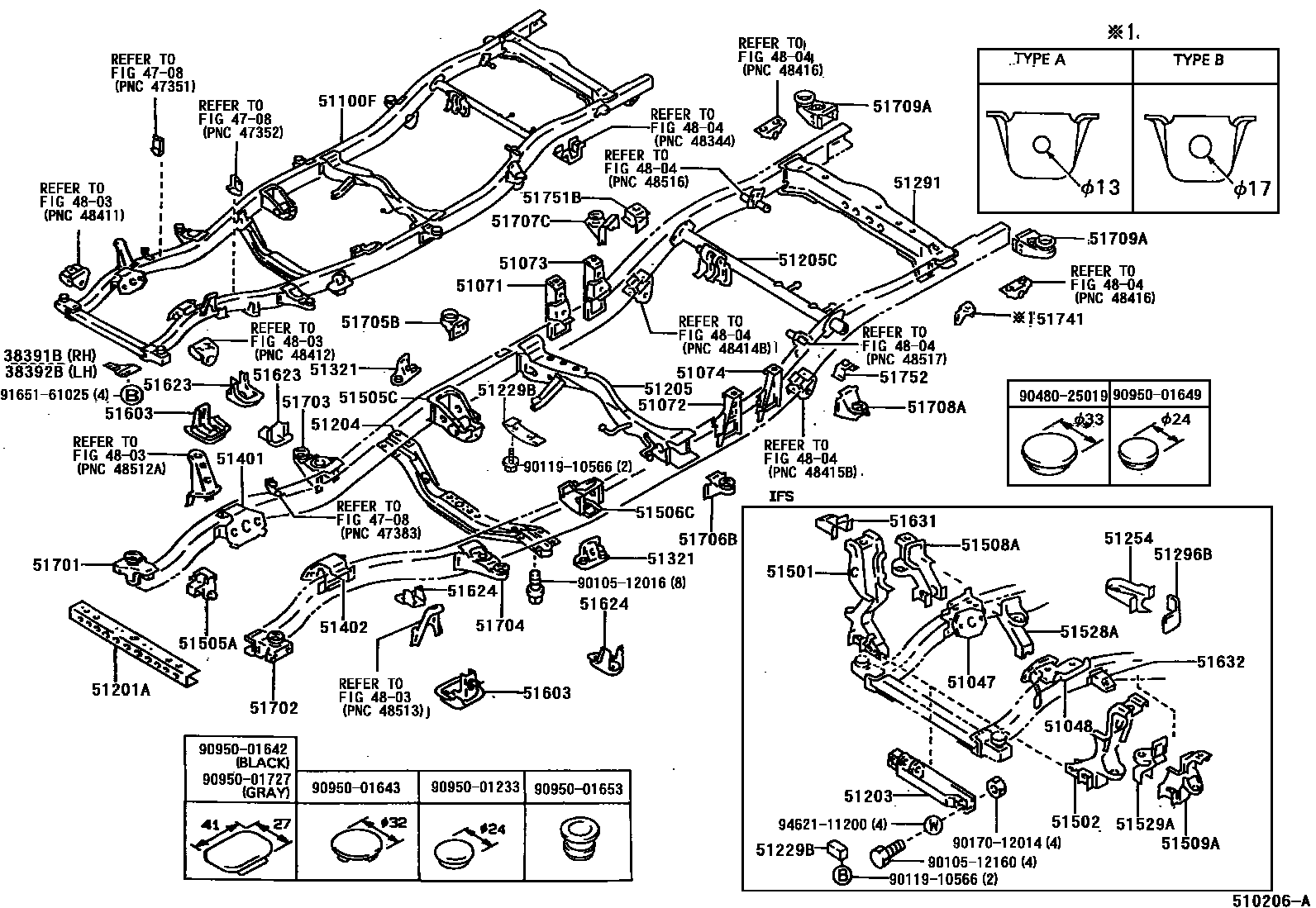

FRAME

0001 1 0002 1 0004 1

38391BGUSSET, NO.1 CROSSMEMBER, RH

main38391-35020iLN111,RN110198808-198904

sub38391-35021

main38391-35021iLN107,111,13#,RN106,110,13#,VZN130,YN13#198904-200106

main38391-35031iYN106..CBU;YN106..LHD..IV3;LN106,RN105..DLX,STD198808-199508

38392BGUSSET, NO.1 CROSSMEMBER, LH

main38392-35011iYN106..CBU;YN106..LHD..IV3;LN106,RN105..DLX,STD198808-199508

main38392-35020iLN111,RN110198808-198904

sub38392-35021

main38392-35021iLN107,111,13#,RN106,110,13#,VZN130,YN13#198904-200106

4708

4803

4804

51047BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH

main51047-35030iVZN130199008-199511

main51047-35040iYN13#198904-199108

main51047-35070iLN107,111,13#,RN106,110,13#198808-200106

main51047-35080iKZN205200108

51048BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH

main51048-35030iVZN130199008-199511

main51048-35040iYN13#198904-199108

main51048-35070iLN107,111,13#,RN106,110,13#198808-200106

main51048-35080iKZN205200108

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-35040iLN111,RN110198808-199708

main51071-35050iLN10#,RN105,YN106..T1198808-200106

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51071-35050iLN10#,RN105,YN106..T1198808-200106

main51072-35020iLN111,RN110198808-199708

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-35020iLN10#,111,RN105,110,YN106..T1198808-200106

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-35020iLN205..T1198808-200106

51100FFRAME SUB-ASSY

main51001-3D840iLN111..ARL198808-199008

main51002-3D210iYN135198904-199008

main51002-3D220iLN135198904-199008

main51002-3D240iRN135198907-199008

main51002-3D670iYN130198908-199008

main51002-3D680iRN130198908-199008

main51002-3D690iLN130198908-199008

main51002-3D890iVZN130..4FC199008-199511

main51003-35310iYN106..RHD..T1198808-199508

sub51003-35311

sub38391-35031

sub38392-35011

sub90119-10400

sub91181-81240

sub94621-11200

main51003-35311iYN106..RHD..T1199508-199708

main51003-35320iYN106..LHD..T1198808-199508

sub51003-35321

sub38391-35031

sub38392-35011

sub90119-10400

sub91181-81240

sub94621-11200

main51003-35321iYN106..LHD..T1199508-199708

main51003-35340iLN106,RN105..RHD..T1198808-199508

sub51003-35341

sub38391-35031

sub38392-35011

sub90119-10400

sub91181-81240

sub94621-11200

main51003-35341iLN106,RN105..RHD..T1199508-199909

main51003-35360iLN106,RN105..LHD..T1198808-199508

sub51003-35361

sub38391-35031

sub38392-35011

sub90119-10400

sub91181-81240

sub94621-11200

main51003-35361iLN106,RN105..LHD..T1199508-199708

main51003-35380iYN106..RHD..TW1198808-199508

sub51003-35381

sub38391-35031

sub38392-35011

sub90119-10400

sub91181-81240

sub94621-11200

main51003-35381iYN106..RHD..TW1199508-199708

main51003-35390iYN106..LHD..TW1198808-199508

sub51003-35391

sub38391-35031

sub38392-35011

sub90119-10400

sub91181-81240

sub94621-11200

main51003-35391iYN106..LHD..TW1199508-199708

main51003-35410iLN106,RN105..RHD..TW1198808-199508

sub51003-35411

sub38391-35031

sub38392-35011

sub90119-10400

sub91181-81240

sub94621-11200

main51003-35411iLN106,RN105..RHD..TW1199508-199909

main51003-35430iLN106,RN105..LHD..TW1198808-199508

sub51003-35431

sub38391-35031

sub38392-35011

sub90119-10400

sub91181-81240

sub94621-11200

main51003-35431iLN106,RN105..LHD..TW1199508-199708

main51003-35450iRN110;LN111..GEN198808-199008

main51003-3D010iVZN130..5F199008-199511

main51003-3D150iLN111..ARL199008-199708

main51003-3D160iYN135199008-199108

main51003-3D170iLN135199008-199511

main51003-3D190iRN135199008-199511

main51003-3D260iRN130199008-199511

main51003-3D270iLN130199008-199511

main51003-3D370iRN110;LN111..GEN199008-199708

main51003-3D450iRN106..CBR199108-199909

main51003-3D460iLN107..TW1199108-200106

main51003-3D670iRN106..EFI199401-199909

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-35190iLN106,111,13#,RN105,110,13#,YN106,13#198808-199008

sub51201-35210

main51201-35210iLN106,111,13#,RN105,110,13#,VZN130,YN106,135199008-199108

main51201-35240iLN10#,111,13#,RN10#,110,13#,VZN130,YN106199108-200106

main51201-35320iKZN205,LN205200106

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51203-35270iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51202-35190iVZN130..5F199008-199511

main51202-35200iVZN130..4FC199008-199511

main51202-35240iLN111..GEN;LN106,RN10#,110,13#,YN106,135198808-199909

sub51202-35270

main51202-35250iYN130198908-199008

main51202-35270iLN107,13#;LN111..ARL198808-200106

main51202-35420iKZN205200111

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-35400iLN106,RN105,YN106198808-199909

main51204-35430iRN106..EFI199401-199909

main51204-35450iLN111,RN110198808-199708

main51204-35470iLN135,RN135,YN135198904-199511

main51204-35510iLN107,RN106..CBR,DSL199108-200106

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-35131iLN10#,111,RN10#,110,YN106198808-200106

main51205-35190iLN135,RN135,YN135198904-199511

main51205-35210iLN130,RN130,VZN130,YN130198908-199511

51229BDUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC

main51229-35020iLN13#,RN106,13#,YN135;LN10#,RN105,YN130..ARL,V198808-199909

main51229-35040iLN107;LN106..ARL199508-200106

51254BRACKET, DIFFERENTIAL SUPPORT, LH

main51254-35010iKZN205,LN205198808-200106

51291CROSSMEMBER, FRAME, REAR

main51209-35112iLN13#,RN13#,VZN130,YN13#198904-199511

main51209-35120iLN10#,111,RN10#,110,YN106198808-200106

51296BREINFORCEMENT, DIFFERENTIAL BRACKET, LH

main51296-35010iLN111,13#,RN110,130,YN13#198808-200106

51321GUSSET, CROSSMEMBER, NO.2 RH

main51321-35050iKZN205,LN205198808-200106

main51321-35050iLN13#,RN13#,VZN130,YN13#198909-199511

RH

main51321-35090iLN107,111,RN106,110198808-199810

sub51321-35050

main51321-35090iLN13#,RN13#,VZN130,YN13#198909-199511

LH

sub51321-35050

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-35190iYN106198808-199708

main51401-35200iLN106,RN105198808-199909

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51401-35190iYN106198808-199708

main51402-35190iLN106,RN105198808-199909

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-35030iLN111,13#,RN110,13#,YN13#198808-199008

sub51501-35070

sub51455-35020

sub90119-08766

main51501-35070iLN107,111,13#,RN106,110,13#,VZN130,YN135199008-199708

sub51501-35071

main51501-35071iLN107,RN106199708-200106

main51501-35130iKZN205,LN205200106

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-35030iLN111,13#,RN110,13#,YN13#198808-199008

sub51502-35070

sub51456-35020

sub90119-08766

main51502-35070iLN107,111,13#,RN106,110,13#,VZN130,YN135199008-199708

sub51502-35071

main51502-35071iLN107,RN106199708-200106

main51502-35130iKZN205,LN205200106

51505ASUPPORT SUB-ASSY, UPPER CONTROL ARM

main51505-35042iLN106,RN105,YN106..LHD198808-199708

main51505-35050iLN106,RN105,YN106..RHD198808-199909

51505CSUPPORT SUB-ASSY, ANCHOR ARM, RH

main51505-35080iLN13#,RN13#,VZN130,YN13#198904-199511

main51505-35090iLN107,111,RN106,110198808-200106

51506CSUPPORT SUB-ASSY, ANCHOR ARM, LH

main51506-35020iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

51508ABRACKET SUB-ASSY, LOWER ARM, RH

main51508-35900iLN111,13#,RN110,130,YN13#198808-199008

main51508-35901iLN107,111,13#,RN106,110,13#,VZN130,YN135199008-200106

51509ABRACKET SUB-ASSY, LOWER ARM, LH

main51509-35900iLN111,13#,RN110,130,YN13#198808-199008

main51509-35901iLN107,111,13#,RN106,110,13#,VZN130,YN135199008-200106

51528AREINFORCEMENT, LOWER ARM BRACKET, RH

main51528-35900iLN111,13#,RN110,130,YN13#198808-200106

51529AREINFORCEMENT, LOWER ARM BRACKET, LH

main51529-35900iLN111,13#,RN110,130,YN13#198808-200106

51603BRACKET SUB-ASSY, FRONT SUSPENSION BOUND

main51603-35020iLN106,RN105,YN106198808-199008

sub51603-35040

main51603-35040iLN106,RN105,YN106199008-199909

51623BRACKET, FRONT SPRING BOUND STOPPER, RH

main51623-35020iLN106,RN105,YN106198808-199909

51624BRACKET, FRONT SPRING BOUND STOPPER, LH

main51624-35020iLN106,RN105,YN106198808-199909

51631STOPPER, FRONT SUSPENSION REBOUND, RH

main51061-35010iKZN205,LN205198808-200106

51632STOPPER, FRONT SUSPENSION REBOUND, LH

main51061-35010iKZN205,LN205198808-200106

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-35120iLN106,RN105,YN106198808-199909

main51701-35130iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51702-35100iLN106,RN105,YN106198808-199909

main51702-35110iKZN205,LN205198808-200106

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-35060iLN106,RN105,YN106198808-199909

main51703-35080iLN13#,RN13#,VZN130,YN13#198904-199511

main51703-35090iLN107,111,RN106,110198808-200106

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-35080iLN106,RN105,YN106198808-199909

main51704-35100iLN13#,RN13#,VZN130,YN13#198904-199511

main51704-35110iLN107,111,RN106,110198808-200106

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-35090iLN10#,111,RN10#,110,YN106198808-200106

main51705-35100iLN13#,RN13#,VZN130,YN13#198904-199511

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51705-35090iKZN205,LN205198808-200106

main51706-35020iLN13#,RN13#,VZN130,YN13#198904-199511

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-35030iKZN205,LN205..TW1198808-200106

main51707-35060iLN13#,RN13#,VZN130,YN13#198904-199511

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-35030iLN10#,RN10#,YN106..TW1198808-200106

main51708-35060iLN13#,RN13#,VZN130,YN13#198904-199511

51709ABRACKET SUB-ASSY, BODY REAR END MOUNTING

main51709-35020iLN13#,RN13#,VZN130,YN13#198904-199511

51741BRACKET, REAR BODY MOUNTING, NO.1

main51715-35020iLN106,111,RN105,110,YN106198808-198904

TYPE A

main51741-35050iLN10#,111,RN10#,110,YN106198808-200106

TYPE B

main51741-35050iKZN205,LN205200106

51751BBRACKET, BODY SUPPORT, NO.1 RH

main51751-35070iLN10#,RN10#,YN106..TW1198808-200106

51752BRACKET, BODY SUPPORT, NO.1 LH

main51752-35040iLN10#,RN10#,YN106..TW1198808-200106

9010512016

main90105-12016

9010512160

main90105-12160

9011910566

main90119-10566

9017012014

main90170-12014

9048025019

main90480-25019

9095001233

main90950-01233

9095001642

main90950-01642

9095001643

main90950-01643

9095001649

main90950-01649

9095001653

main90950-01653

9095001727

main90950-01727

9165161025

main91651-61025

9462111200

main94621-11200

63 parts on this diagram · 3 diagrams in section
