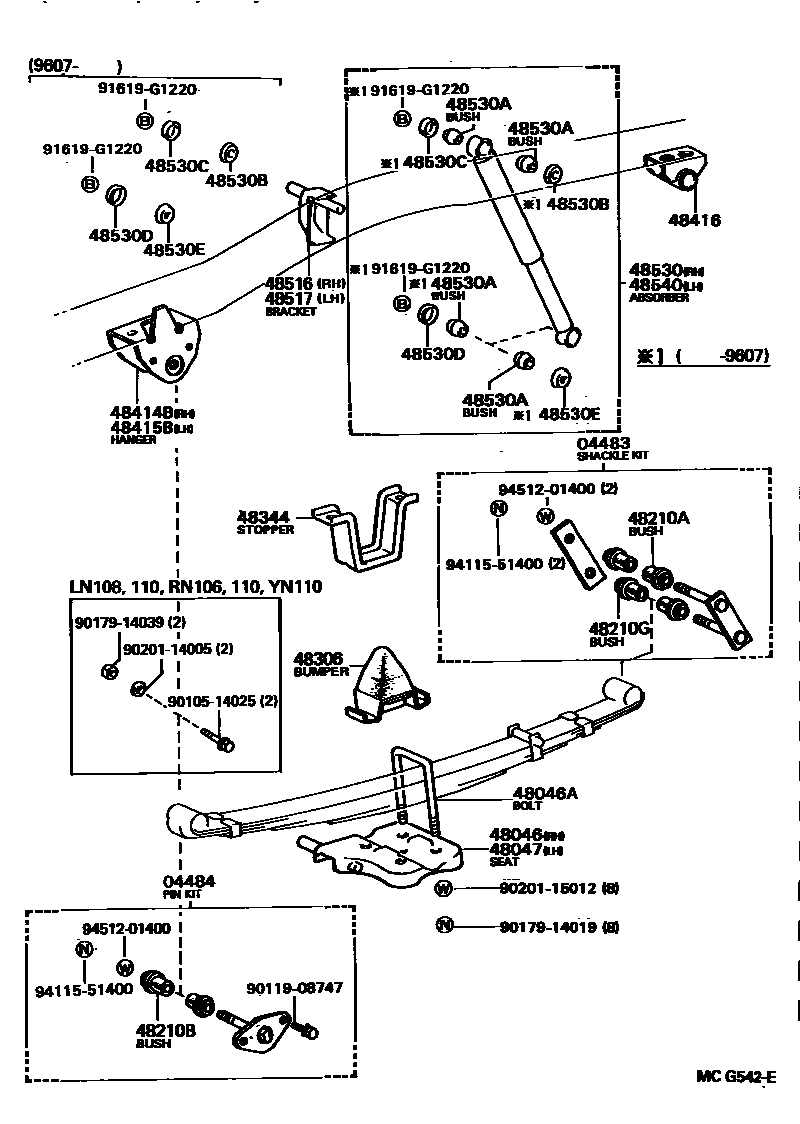

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

04483SHACKLE KIT, REAR SPRING

main04483-35040iLN106,RN105,YN106198808-199909

main04483-35070iLN107,111,135,RN106,110,135,YN135198808-200106

main04483-35120iKZN205,LN205200106

04484PIN KIT, REAR SPRING

main04482-35030iLN106,RN105,YN106198808-199108

main04484-35060iLN106,RN105,YN106199108-199909

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-35170iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

48046ABOLT, U(FOR REAR SPRING)

main90117-14008iLN107..TW1..GEN;LN111,135,RN110,135,YN135198808-200106

L=155

main90117-14044iLN107..T1;LN107..ARL;LN106,RN10#,YN106198808-200106

L=165

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-35170iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

48210SPRING ASSY, REAR RH

main48210-35670iLN106,RN105,YN106198808-199909

7-LEAF

main48210-35681iLN111,RN110198808-199708

4-LEAF

main48210-35780iLN135,RN135,YN135198904-199511

5-LEAF

main48210-35830iRN106;LN107..T1;LN107..ARL199108-200106

5-LEAF

sub48210-3D180

main48210-35840iLN107..TW1..GEN199703-200106

4-LEAF

main48210-35860iLN106..LHD..TW1199409-199708

4-LEAF,BRAZIL SPEC

main48210-35881iLN205200106-200304

6-LEAF

sub48210-35882

main48210-35882iLN205200304-200409

6-LEAF

sub48210-35A10

main48210-35A10iLN205200410-200412

6-LEAF

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18012iLN107,111,135,RN106,110,135,YN135198808-200106

main90385-18019iKZN205,LN205200106

main90385-18046iLN106,RN105,YN106198808-199909

48210BBUSH(FOR REAR SPRING PIN)

main90385-18046iLN106,111,135,RN105,110,135,YN106198808-200106

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-18020iKZN205,LN205200106

main90385-18046iLN107..T1;LN107..ARL;LN106,RN10#,YN106198808-200106

48306BUMPER SUB-ASSY, REAR SPRING

main48306-35110iLN10#,111,RN10#,110,YN106198808-200106

main48306-35140iLN130,RN130,VZN130,YN130198908-199511

main48306-35150iLN135,RN135,YN135198904-199511

main48306-35190iKZN205,LN205200106

48344STOPPER, BUMPER, REAR

main48344-35020iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

48414BBRACKET, SPRING, NO.3 RH

main48414-35130iLN107,111,RN106,110198808-200106

main48414-35170iLN106,RN105,YN106198808-199909

main48414-35190iLN135,RN135,YN135198904-199511

48415BBRACKET, SPRING, NO.3 LH

main48414-35170iLN106,RN105,YN106198808-199909

main48415-35060iLN107,111,RN106,110198808-200106

main48415-35080iLN135,RN135,YN135198904-199511

48416BRACKET, SPRING, NO.4

main48416-35061iLN106,RN105,YN106198808-199909

main48416-35080iLN107,111,135,RN106,110,135,YN135198808-200106

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-35040iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

main48505-35070iKZN205,LN205200106

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48506-35010iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80059iRN105..V198808-199108

sub48531-80108

main48531-80061iLN106,RN105,YN106..ARL,GEN198808-199108

sub48531-80109

main48531-80063iLN111,RN110198808-199108

sub48531-80113

main48531-80081iLN135,RN135,YN135198904-199511

sub48531-80501

main48531-80091iLN130,RN130,VZN130,YN130198908-199511

sub48531-80508

main48531-80103iLN106,YN106..RHD..TW1..GEN;LN106,YN106..RHD..GEN..IV3198909-199108

NEW ZEALAND SPEC

sub48531-80111

main48531-80108iRN105..V199108-199607

sub48531-80515

main48531-80109iRN105..ARL;LN106,YN106199108-199607

sub48531-80516

main48531-80111iRN105..GEN199108-199607

NEW ZEALAND SPEC

sub48531-80517

main48531-80113iLN107,111,RN106,110199108-199607

sub48531-80519

main48531-80170iLN106..LHD..TW1199409-199607

BRAZIL SPEC

sub48531-80524

main48531-80515iRN105..V199607-199708

sub48531-80517

main48531-80516iRN105..ARL;LN106,YN106199607-199907

main48531-80517iRN105..GEN199607-199708

main48531-80517iLN106..RHD..TW1..GEN;LN106..RHD..GEN..IV3199607-199909

NEW ZEALAND SPEC

main48531-80519iLN107..T1;LN107..ARL;LN111,RN106,110199607-199807

sub48531-80665

main48531-80521iLN107..TW1..GEN199703-199807

sub48531-80666

main48531-80524iLN106..LHD..TW1199607-199708

BRAZIL SPEC

sub48541-39227

main48531-80665iRN106;LN107..T1;LN107..ARL199807-200106

MARK 48531-35522

main48531-80666iLN107..TW1..GEN199807-200106

MARK 48531-35542

main48531-80669iKZN205,LN205200106

MARK 48531-3D061

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19002iRN105..GEN,V;LN107..TW1..GEN198808-200106

main90385-19002iLN106,YN106..RHD..TW1..GEN;LN106,YN106..RHD..GEN..IV3198909-199909

NEW ZEALAND SPEC

main90385-19004iLN130,RN130,VZN130,YN130198808-200106

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011iKZN205,LN205198908-199511

main90948-03015iLN106,111,RN105,110,YN106198808-198904

main90948-03020iLN10#,111,135,RN10#,110,135,YN106,135198904-200106

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03011iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

main90948-03020iLN130,RN130,VZN130,YN130198908-199511

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03011iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03015iLN106,111,RN105,110,YN106198808-198904

main90948-03020iLN10#,111,135,RN10#,110,135,YN106,135198904-200106

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80091iLN130,RN130,VZN130,YN130198908-199511

sub48531-80508

main48541-39085iRN105..V198808-199108

sub48541-39185

main48541-39095iLN106,RN105,YN106..ARL,GEN198808-199108

sub48541-39195

main48541-39115iLN111,RN110198808-199108

sub48541-39225

main48541-39145iLN135,RN135,YN135198904-199511

sub48541-39146

main48541-39175iLN106,YN106..RHD..TW1..GEN;LN106,YN106..RHD..GEN..IV3198909-199108

NEW ZEALAND SPEC

sub48541-39205

main48541-39185iRN105..V199108-199607

sub48541-39186

main48541-39186iRN105..V199607-199708

main48541-39195iRN105..ARL;LN106,YN106199108-199607

sub48541-39196

main48541-39196iRN105..ARL;LN106,YN106199607-199907

main48541-39205iRN105..GEN199108-199607

NEW ZEALAND SPEC

sub48541-39206

main48541-39206iRN105..GEN199607-199708

sub48541-39186

main48541-39206iLN106..RHD..TW1..GEN;LN106..RHD..GEN..IV3199607-199909

NEW ZEALAND SPEC

sub48541-39186

main48541-39225iLN107,111,RN106,110199108-199607

sub48541-39226

main48541-39226iLN107..T1;LN107..ARL;LN111,RN106,110199607-199807

sub48541-39227

main48541-39227iRN106;LN107..T1;LN107..ARL199807-200106

MARK 48541-35092

main48541-39246iLN107..TW1..GEN199703-199807

sub48541-39247

main48541-39247iLN107..TW1..GEN199807-200106

MARK 48541-35112

main48541-39265iLN106..LHD..TW1199409-199607

BRAZIL SPEC

sub48541-39266

main48541-39266iLN106..LHD..TW1199607-199708

BRAZIL SPEC

sub48541-39196

main48541-39316iKZN205,LN205200106

MARK 48541-35231

9010514025

main90105-14025

9011908747

main90119-08747

9017914019

main90179-14019

9017914039

main90179-14039

9020114005

main90201-14005

9020115012

main90201-15012

91619G1220

main91619-G1220

9411551400

main94115-51400

9451201400

main94512-01400

32 parts on this diagram · 11 diagrams in section
