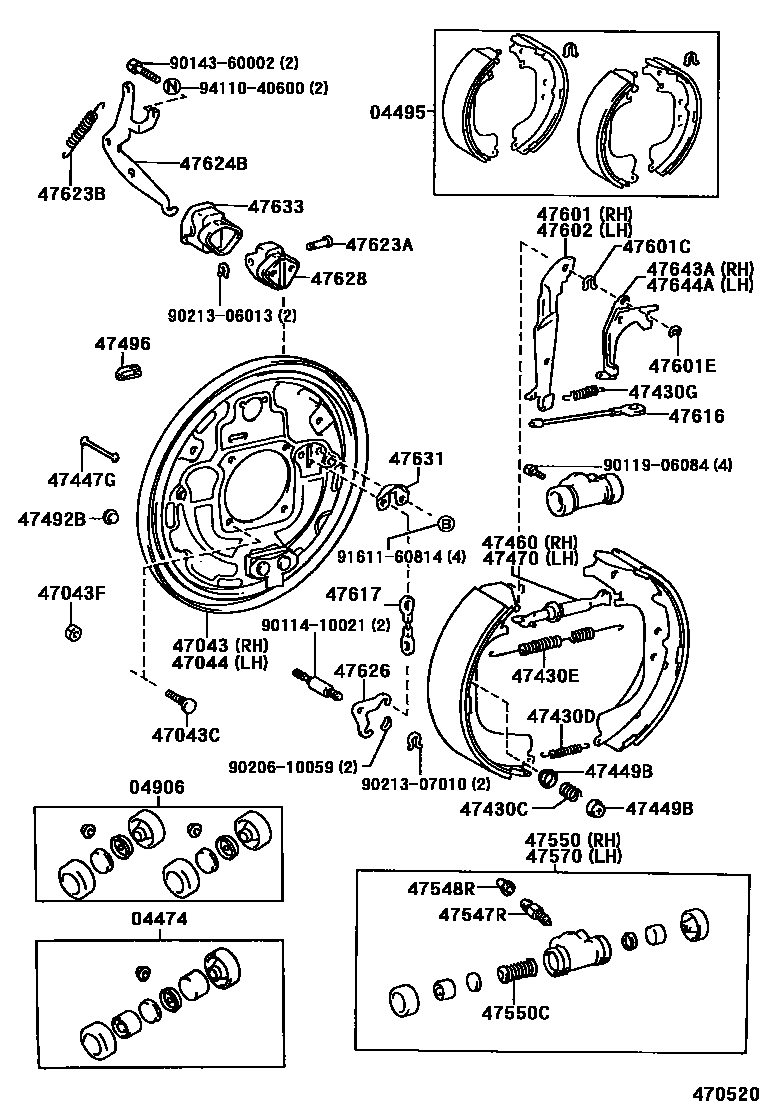

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04474CYLINDER KIT, REAR WHEEL

main04474-26030×2iLN130,RN130,VZN130..ARL199108-199511

sub04474-35090

sub90029-60009

main04474-35060×2iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106199108-199503

main04474-35080×2iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106199503-200106

04495SHOE KIT, REAR BRAKE

main04495-26061iLN106,111,13#,RN10#,13#,YN106..GEN,V199108-199405

main04495-35151iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-199108

MARK NBK LN508

main04495-35230iKZN205,LN205200111-200412

MARK NBK LN508

04906CUP KIT, REAR WHEEL CYLINDER

main04906-35100iKZN205,LN205200106-200412

main04906-35120iLN130,RN130,VZN130..ARL199108-199511

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-35150iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

main47043-35160iLN130,RN130,VZN130,YN130198908-199511

main47043-35170iKZN205,LN205200106

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002×6iLN106..RHD;LN106..LHD..CBU;LN106..LHD..T1..IV3;LN107,111,135,RN10#,110,135,YN106199406-200106

*10-1.25PX37-18.5

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10067×8iLN106,111,13#,RN105,110,13#,YN106,13#198808-199008

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-35140iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

main47044-35150iLN130,RN130,VZN130,YN130198908-199511

main47044-35160iKZN205,LN205200106

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

main90501-20604×4iKZN205,LN205200108

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031×2iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iLN130,RN130..GEN199108-199511

LH

main90506-26014iLN130,RN130..ARL;LN10#,111,135,RN10#,110,135,VZN130,YN106,13#198808-200106

LH

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031×2iKZN205,LN205200106

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020×4iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-60011iKZN205,LN205200106

main47062-60011iLN13#,RN13#,VZN130,YN13#198904-199511

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-60011iLN13#,RN13#,VZN130,YN13#198904-199511

main47062-60011iLN10#,111,RN10#,110,YN106198808-200106

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iKZN205,LN205200106

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-60020×2iKZN205,LN205200106

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26110iLN130,RN130,VZN130..ARL199108-199511

main47550-35170iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106199108-199503

main47550-35190iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106199503-200106

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-60010×2iLN130,RN130,VZN130..ARL199108-199511

main90029-60011×2iKZN205,LN205200106

main90501-09079×2iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106199108-199503

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26110iLN130,RN130,VZN130..ARL199108-199511

main47550-35170iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106199108-199503

main47550-35190iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106199503-200106

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-35040iLN10#,111,RN10#,110,YN106198808-200106

main47612-35040iLN13#,RN13#,VZN130,YN13#198904-199511

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500×2iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47611-35040iLN13#,RN13#,VZN130,YN13#198904-199511

main47612-35040iKZN205,LN205200106

47616WIRE, PARKING BRAKE, RH

main47616-35020×2iKZN205,LN205200106

47617WIRE, PARKING BRAKE, NO.2

main46361-35100×2iLN10#,RN106199708-200106

main47617-35010×2iLN10#,111,135,RN10#,110,135,YN106,135198808-199708

47623APIN(FOR PARKING BRAKE BELL CRANK)

main90249-08068×2iKZN205,LN205200106

47623BSPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)

main90506-20019×2iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

main90506-20033×2iKZN205,LN205200106

47624BCRANK, PARKING BRAKE BELL, NO.1

main47603-35010iLN106,RN105,YN106198808-199909

RH

main47604-35010iLN106,RN105,YN106198808-199909

LH

main47624-35020iLN107,111,135,RN106,110,135,YN135198808-200106

RH

main47625-35020iLN107,111,135,RN106,110,135,YN135198808-200106

LH

47626CRANK, PARKING BRAKE BELL, NO.3

main47626-35010×2iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

47628BRACKET, REAR BRAKE BELLCRANK

main47628-35020×2iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

47631COVER, REAR BRAKE BELLCRANK DUST

main47631-35010×2iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

47633BOOT, PARKING BRAKE BELLCRANK

main47633-35020×2iLN10#,111,135,RN10#,110,135,YN106,135198808-200106

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-60010iLN10#,111,RN10#,110,YN106198808-200106

main47644-60010iLN13#,RN13#,VZN130,YN13#198904-199511

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-60010iLN13#,RN13#,VZN130,YN13#198904-199511

main47644-60010iLN10#,111,RN10#,110,YN106198808-200106

9011410021

main90114-10021

9011906084

main90119-06084

9014360002

main90143-60002

9020610059

main90206-10059

9021306013

main90213-06013

9021307010

main90213-07010

9161160814

main91611-60814

9411040600

main94110-40600

45 parts on this diagram · 3 diagrams in section
