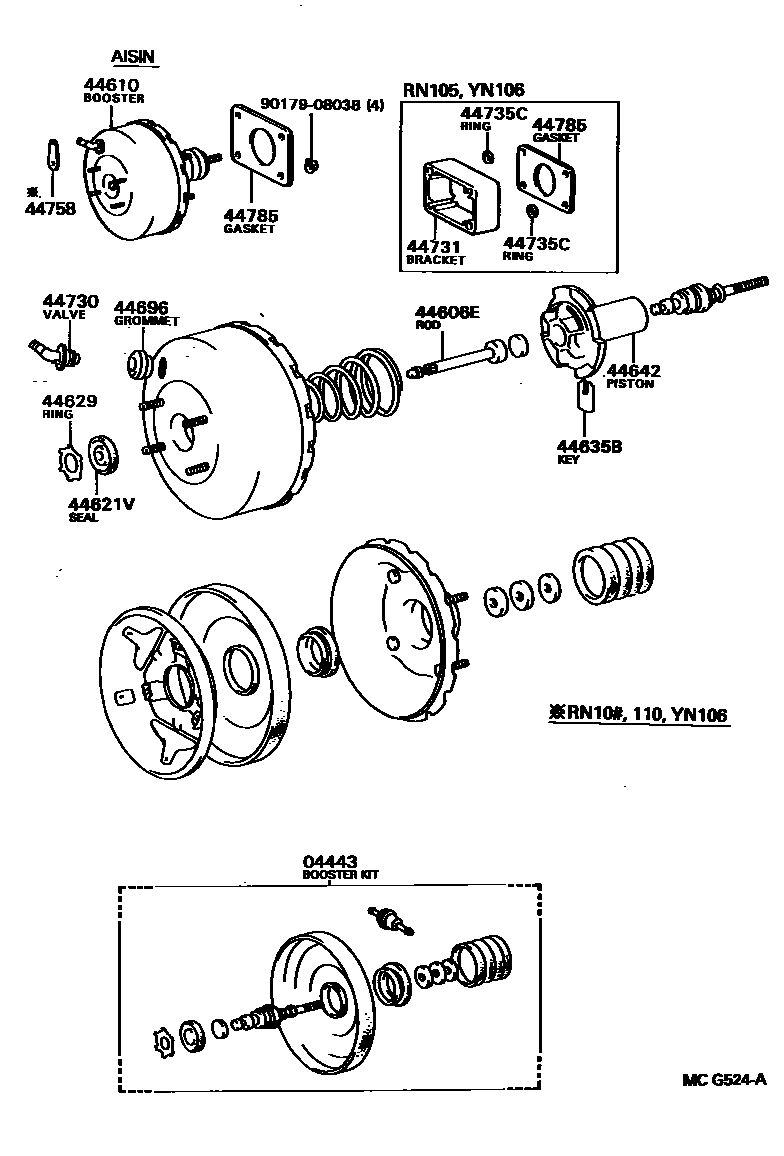

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1W(A.D.D)

04443BOOSTER KIT, BRAKE

main04443-35710iRN105,YN106..RHD198808-199108

main04443-35720iRN105,YN106..LHD198808-199108

main04443-35730iLN106,111198808-199108

main04443-35830iRN110198808-199108

main04443-35850iRN135,YN135..LHD198904-199108

main04443-35880iRN130,YN13#..RHD198904-199108

main04443-35900iLN13#198904-199108

main04443-35940iVZN130199008-199108

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iLN106,111,13#,RN105,110,YN106198808-199108

main44606-20800iRN13#,VZN130,YN13#198904-199108

44610BOOSTER ASSY, BRAKE

main44610-3D080iRN105,YN106..RHD198808-199108

sub44610-3D081

main44610-3D081iRN105,YN106..RHD199108-199708

main44610-3D090iRN105,YN106..LHD198808-199108

sub44610-3D091

main44610-3D091iRN105,YN106..LHD199108-199708

main44610-3D120iLN106,111..RHD198808-199108

sub44610-3D121

main44610-3D121iLN10#,111..RHD199108-199909

main44610-3D130iLN106,111..LHD198808-199108

sub44610-3D131

main44610-3D131iLN10#,111..LHD199108-200106

main44610-3D290iRN110198808-199108

sub44610-3D291

main44610-3D291iRN106,110..ARL199108-199708

main44610-3D301iRN106..GEN199108-199909

main44610-3D310iRN135,YN135..LHD198904-199108

main44610-3D311iRN13#..LHD199108-199511

main44610-3D340iRN130,YN13#..RHD198904-199108

sub44610-3D530

main44610-3D360iLN135..LHD198904-199108

sub44610-3D550

main44610-3D370iLN13#..RHD198904-199108

sub44610-3D540

main44610-3D430iVZN130199008-199108

main44610-3D490iVZN130199108-199308

main44610-3D500iRN130..ARL199108-199511

main44610-3D520iLN130..ARL199108-199511

main44610-3D530iRN135..RHD199108-199511

main44610-3D540iLN135..RHD199108-199511

main44610-3D550iLN13#..LHD199108-199511

main44610-3D590iVZN130199308-199511

main44610-3G020iKZN205200108

44621VSEAL, BOOSTER BODY

main44621-14030iRN13#,VZN130,YN13#198904-199108

main44621-28120iLN106,111,13#,RN105,110,YN106198808-199108

44629RING, CIRCULAR INTERNAL

main44628-28120iLN106,111,13#,RN105,110,YN106198808-199108

main44628-60010iRN13#,VZN130,YN13#198904-199108

44635BKEY, VALVE STOPPER

main44635-20800iRN13#,VZN130,YN13#198904-199108

main44635-28120iLN106,111,13#,RN105,110,YN106198808-199108

44642PISTON, BRAKE BOOSTER

main44642-20800iRN13#,VZN130,YN13#198904-199108

main44642-2B210iLN13#198904-199108

main44642-32030iLN106,111,RN105,110,YN106198808-199108

44696GROMMET, CHECK VALVE

main90480-24439iRN10#,110,13#,VZN130,YN106,13#..RHD198808-199708

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iRN10#,13#,YN106,135..LHD198808-199909

main44730-30040iRN10#,110,13#,VZN130,YN106,13#..RHD198808-199708

main44730-35010iKZN205200108

main44730-60050iLN10#,111,13#198808-200106

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-35110iRN105,YN106198808-199708

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010iRN105,YN106198808-199708

44758BRACKET, VACUUM CHECK VALVE

main44758-14140iRN105..ARL;RN105..GEN..CBU;RN106,110,YN106..RHD198808-199708

main44758-35080iRN10#,13#,YN106,135..LHD198808-199909

main44758-35100iRN13#,YN13#..RHD198904-199511

main44758-35110iVZN130199008-199511

44785GASKET, BRAKE BOOSTER

main44785-35020iRN105,YN106..RHD198808-200106

9017908038

main90179-08038

14 parts on this diagram · 9 diagrams in section
