BRAKE MASTER CYLINDER

0001 1VW BRAND 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-25060iRN106..ARL;LN106,111..LHD;RN105,110,YN106199308-199909

main04493-35280iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-199108

main04493-35320iLN10#,111..RHD;LN13#,RN106,13#..GEN,V199108-199511

sub04493-25060

main04493-60280iLN130,RN130,VZN130..ARL199108-199511

main04493-60290iKZN205..SRV200108-200401

W(ABS)

main04493-60300iKZN205..SR5200108

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-35620iYN106,130;YN135..RHD;LN106,111,135..LHD198808-199108

sub47201-3D040

main47201-35630iRN105,110,130..ARL198808-199108

sub47201-35750

main47201-35720iRN105,135,YN135..LHD198808-199108

main47201-35750iLN106,111,13#,VZN130..RHD198808-199108

main47201-35840iLN106..RHD..GEN..CBU198910-199010

VW BRAND

main47201-3D040iYN106;LN106,111,13#,RN10#,13#..LHD199108-199308

main47201-3D050iLN10#,111,135,RN10#,110,135..RHD199108-199308

main47201-3D070iLN130,RN130,VZN130..ARL199108-199308

main47201-3D150iYN106;LN106,111,13#,RN10#,13#..LHD199208-199408

sub47201-3D151

main47201-3D151iYN106..RHD;LN10#,111,RN106,13#..LHD199408-200106

main47201-3D160iRN105..ARL;RN105..GEN..CBU;LN10#,111,135,RN106,110,135..RHD199308-199408

sub47201-3D161

main47201-3D161iLN10#,111..RHD199408-199909

main47201-3D210iLN130,RN130,VZN130..ARL199308-199408

sub47201-3D211

main47201-3D280iLN13#,RN105,YN106..LHD199408-199708

sub47201-3D151

main47201-3D290iLN135,RN10#,110,135..RHD199408-199708

sub47201-3D161

main47201-3D300iLN130,RN130,VZN130..ARL199408-199511

sub47201-3D211

main47201-3D500iKZN205..SR5200108

main47201-3D510iKZN205..SRV200108

W(ABS)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-34020iRN106,13#,YN106..RHD;LN13#,RN105,110,VZN130..ARL,GEN199408-199511

sub47220-35010

main47202-35210iYN135..RHD;LN106,111,135..LHD;RN105,110,130,YN106,130..ARL,GEN198808-199108

main47202-35220iRN105,135,YN135..LHD;LN106,111,13#,VZN130..RHD198808-199308

main47202-35270iLN106..RHD..GEN..CBU198910-199010

VW BRAND

main47202-35320iLN106,111,13#,RN10#,13#,YN106..LHD199208-199408

sub47202-35321

main47202-35321iLN106,RN106199408-199909

sub47220-60080

main47220-35010iRN10#,110,YN106..RHD199511-199708

sub47220-60080

main47220-60080iKZN205200108

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iKZN205..SR5200108

W(ABS)

main90430-06104iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199909

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iKZN205198808-199909

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iRN106,13#,YN106..RHD;LN13#,RN105,110,VZN130..ARL,GEN199408-199708

main47230-20100iLN106,111,13#,RN10#,13#,YN106..LHD199208-199408

sub47230-47090

main47230-20140iKZN205199408-199909

main84460-12070iLN106,111,13#,RN105,110,13#,YN106,13#198808-199001

main84460-35030iLN106..RHD..GEN..CBU198910-199108

VW BRAND

main84460-35040iLN10#,111,13#,RN10#,110,13#,VZN130,YN106..RHD199001-199308

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iLN106,RN106198808-199909

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLN130..GEN;LN10#,111,135,RN10#,110,YN106198808-199308

main47264-28010iRN105..ARL,V;LN130,RN105..GEN..CBU;LN10#,111,135,RN106,110,YN106199308-199909

main47264-30040iRN13#,VZN130,YN13#198904-199108

main47264-50010iRN13#;LN130,VZN130..ARL199108-199511

47265BOOT, MASTER CYLINDER

main47265-20050iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199404

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iKZN205200108

main47275-24010iLN106,RN106198808-199909

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iKZN205199208-199909

main47299-32010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106..RHD198808-199308

9014940006

main90149-40006

9017608043

main90176-08043

9017908146

main90179-08146

9017910065

main90179-10065

9453100800

main94531-00800

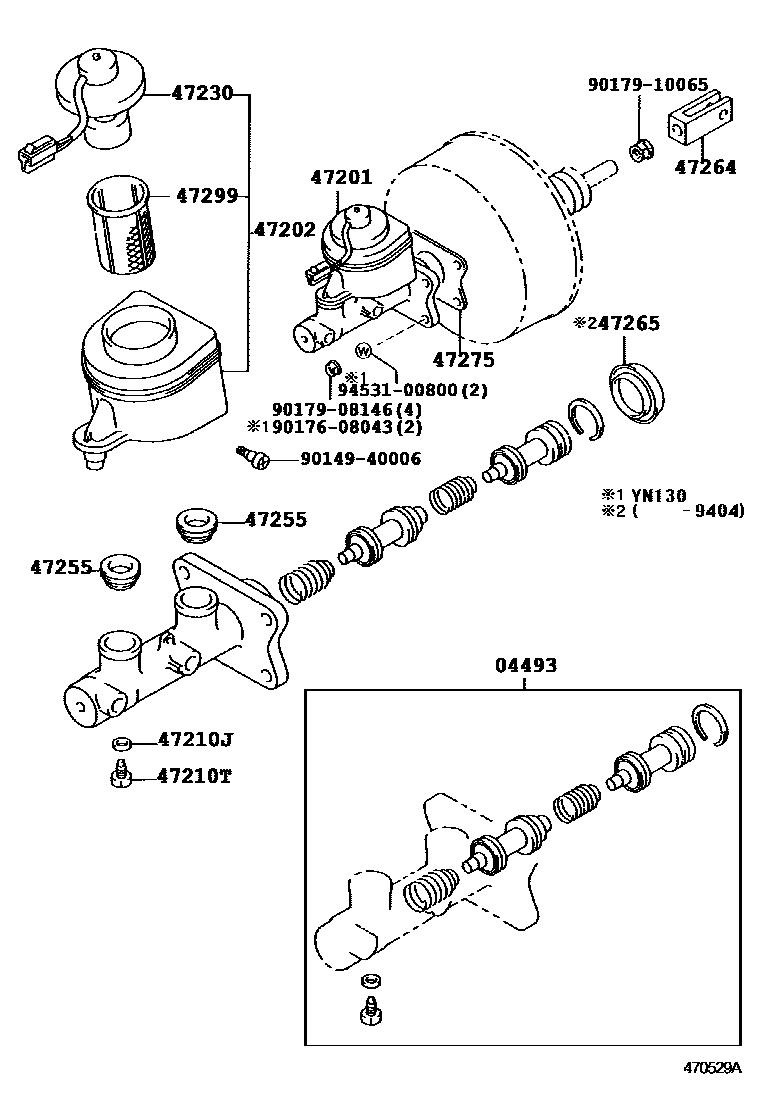

16 parts on this diagram · 2 diagrams in section
