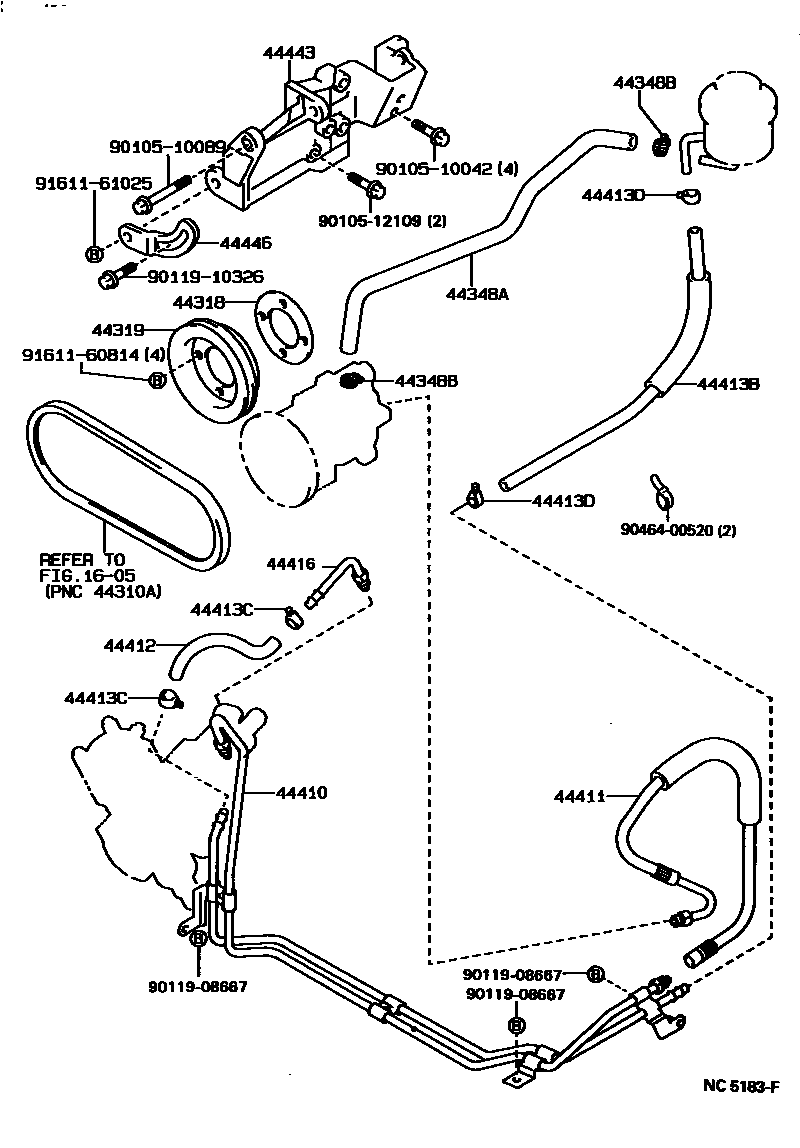

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYN106,13#198808-199708

main44318-35010iLN106,111198808-198812

44319PULLEY, VANE PUMP DRIVE

main44319-22010iLN10#,111,13#..RHD198808-199909

main44319-28013iYN106,13#198808-199708

main44319-35020iVZN130199008-199511

main44319-35030iLN10#,111,13#..LHD198808-200106

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-35100iRN10#,13#..LHD198808-199909

sub44348-35101

main44348-35110iLN10#,111,13#..LHD198808-200106

sub44348-35111

main44348-35120iRN10#,110,13#..RHD198808-199708

main44348-35130iLN10#,111,13#..RHD198808-199909

sub44348-35131

main44348-35230iLN205200106

main44348-35270iKZN205200108

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×2iLN10#,111,13#,RN10#,110,13#198808-199404

main90467-21005×2iLN10#,111,13#,RN10#,110,13#199404-200106

sub90467-21010

44410TUBE ASSY, PRESSURE FEED

main44410-35150iRN105..ARL198808-199004

main44410-35151iRN105..RHD199004-199708

main44410-35160iLN106..LHD198808-199708

main44410-35170iLN106..RHD198808-199909

main44410-35180iYN106..RHD198808-199708

main44410-35190iRN110,130198808-199004

main44410-35191iRN106,110,13#..RHD199004-199708

main44410-35210iLN107,111,13#..LHD198808-200106

main44410-35220iLN111,13#..RHD198808-199008

main44410-35230iYN13#..RHD198904-199108

main44410-35330iVZN130199008-199511

main44410-35340iLN107,111,13#..RHD199008-199812

main44410-35600iLN205200106

main44410-35660iKZN205200108

44411HOSE, PRESSURE FEED

main44411-35260iLN106,111,135..LHD198808-198910

main44411-35261iLN106,111,13#..LHD198910-199607

main44411-35262iLN10#,111..LHD199607-200106

main44411-35270iRN105..V198808-199708

main44411-35280iYN106..LHD198808-199708

main44411-35290iRN106,13#..LHD198907-199511

main44411-35300iYN135..LHD198904-199108

main44411-35330iLN106..RHD199108-199909

main44411-35470iRN106..EFI199511-199708

main44411-35600iLN205200106

main44411-35660iKZN205200108

44412HOSE, RETURN

main44412-35080iRN105,YN106..RHD198808-199708

main44412-35100iLN107,111,13#..LHD198808-200106

main44412-35110iLN107,111,13#,RN106,110,13#,YN13#..RHD198808-199812

main44412-35120iLN106..RHD198808-199909

main44412-35170iVZN130199008-199511

main44412-35210iRN13#..LHD199108-199511

main90445-18118iRN105,YN106..LHD198808-199708

sub90445-18089

main90445-18138iRN135,YN135..LHD198904-199108

main90447-18035iLN106..LHD198808-199708

44413BHOSE(FOR RESERVOIR TANK INLET)

main90447-18033iYN106,13#..RHD198808-199708

main90447-18036iLN10#,111,13#..RHD198808-199909

main90447-18040iLN10#,111,13#..LHD198808-200106

44413CCLAMP(FOR RETURN TUBE OUTLET HOSE)

main90460-01001×2iYN106,135..RHD;LN106,111,13#,VZN130,YN130198808-199108

main90467-16008iVZN130199404-199511

sub90467-16019

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001×2iYN106,135..RHD;LN106,111,13#,VZN130,YN130198808-199108

main90467-16008iVZN130199404-199511

sub90467-16019

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-35020iLN107,111,13#,RN10#,13#,YN106,135..LHD198808-200106

main44416-35090iYN106..RHD;LN106,RN105..ARL,GEN198808-199909

main44416-35100iLN107,111,13#,RN106,110,13#,VZN130,YN13#..RHD198808-199812

44443BRACKET, PUMP

main44443-28021iYN106,13#198808-199708

main44443-30080iLN10#,111,13#..RHD198808-199909

main44443-35011iLN10#,111,13#..LHD198808-200106

main44443-35020iRN10#,110,13#198808-199909

main44443-35070iLN205200106

44446STRUT, ADJUSTING

main44446-30070iLN10#,111,13#..RHD198808-199909

9010510042

main90105-10042

9010510089

main90105-10089

9010512109

main90105-12109

9011908667

main90119-08667

9011910326

main90119-10326

9046400520

main90464-00520

9161160814

main91611-60814

9161161025

main91611-61025

22 parts on this diagram · 10 diagrams in section
