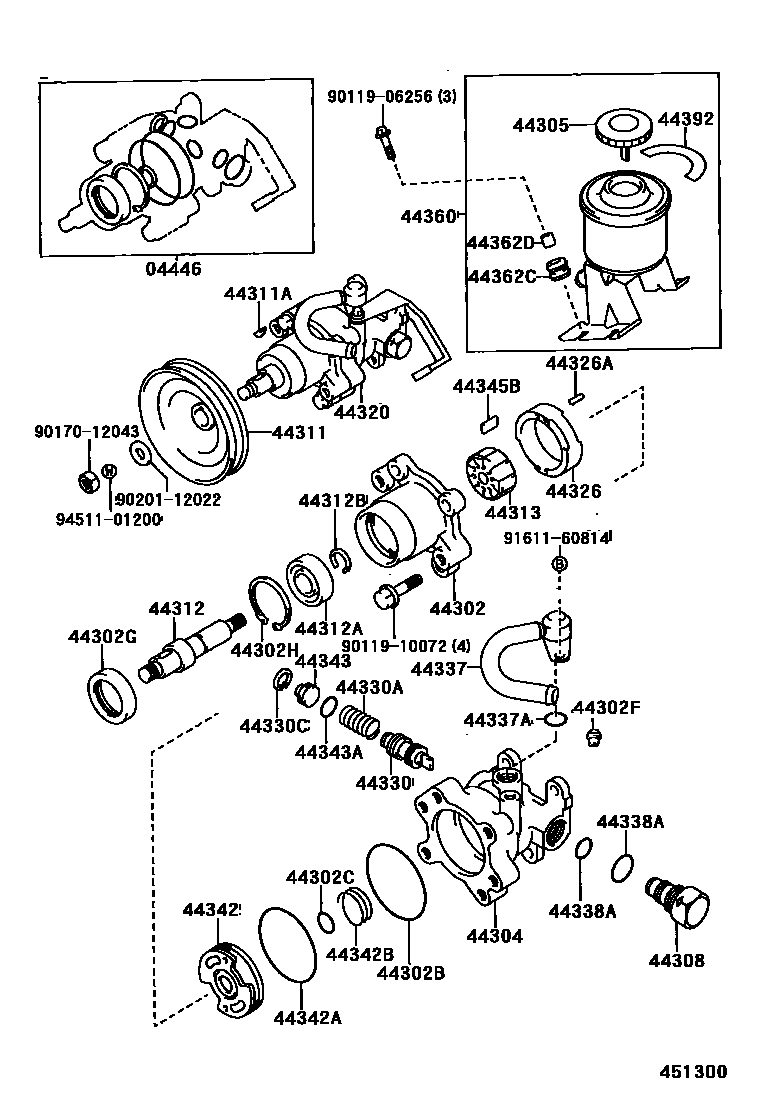

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

04446GASKET KIT, POWER STEERING PUMP

main04446-26030iLN10#,111,13#..RHD¥1,460199408-199909

main04446-30030iLN10#,111,13#,RN10#,110,13#,YN106,13#¥3,580198808-200106

main04446-53030iLN205¥1,360200106-200412

main04446-60020iVZN130¥1,750199108-199502

sub04446-60021¥1,730

main04446-60021iVZN130¥1,730199502-199511

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iRN10#,110,13#;LN10#,111,13#..LHD¥15,500198808-200106

main44302-14010iYN106,13#¥15,500198808-199708

main44302-22020iLN10#,111,13#..RHD¥15,500198808-199408

main44302-30110iLN10#,111,13#..RHD¥15,500199408-199909

main44302-35040iLN205¥19,900200106

main44302-60030iVZN130¥24,400199008-199511

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iLN10#,111,13#,RN10#,110,13#,YN106¥350198808-200106

44302CRING, O, NO.2(FOR VANE PUMP HOUSING)

main96711-19016iLN106,111,RN105,110,YN106¥300198808-200106

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iLN10#,111,13#..LHD;RN10#,110,13#,VZN130¥230198808-200105

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17004iLN10#,111,13#..RHD¥190199408-199909

main90311-18007iVZN130¥240199008-199511

main90311-18015iLN205¥210200106

main90311-24001iLN10#,111,13#..LHD;RN10#,110,13#,YN106¥220198808-200106

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-44002iLN106,111,RN105,110,YN106¥580198808-200106

main90521-51003iLN10#,111,13#..RHD¥230199408-199909

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-28012iYN130¥35,200198908-199008

main44304-28021iYN106,135¥35,100198808-199708

main44304-30051iLN10#,111,13#..RHD¥35,200198808-199909

main44304-35021iRN135;RN105,110,130..ARL¥35,100198808-199909

main44304-35031iRN106..EFI¥35,100199401-199909

main44304-35041iLN10#,111,13#..LHD¥35,100198808-200106

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iVZN130,YN106¥1,940198808-199708

sub44305-22060¥1,940

main44305-24030iKZN205¥2,290200108

sub44305-24050¥2,290

main44305-35010iLN205¥2,000199108-200106

sub44305-35030¥1,990

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26041iLN205¥1,690200106

main44308-35040iVZN130¥1,970199008-199511

main44308-35060iLN10#,111,13#,RN10#,110,13#,YN106¥1,970198808-200106

44311PULLEY, VANE PUMP

main44311-12010iYN106,13#¥7,600198808-199708

main44311-20010iRN105,110¥7,600198808-199909

main44311-22070iLN10#,111,13#..RHD¥7,200198808-199408

main44311-30150iLN10#,111,13#..RHD¥7,100199408-199909

main44311-35020iVZN130¥8,700199008-199511

main44311-35030iLN10#,111,13#..LHD¥7,200198808-200106

main44311-35050iLN205¥7,100200106

44311AKEY, VANE PUMP PULLEY

main90280-05008iLN10#,111,13#..LHD;RN10#,110,13#,VZN130,YN106¥220198808-200106

44312SHAFT, VANE PUMP

main44312-12010iLN106,111,RN105,110,YN106¥3,340198808-200106

main44312-12030iVZN130¥2,950199008-199511

main44312-28010iLN10#,111,13#..RHD¥3,090199408-199909

main44312-32020iLN205¥1,300200106

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17004iLN10#,111,13#,RN10#,110,13#,YN106¥1,240198808-200106

main90363-17011iLN10#,111,13#..RHD¥820199408-199909

sub90363-17017¥820

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iLN205¥140199008-199511

main90520-15001iRN135;LN106,111,13#,RN105,110,130,YN106,13#..ARL,GEN¥240198808-200106

sub90520-15005¥80

main90520-15005iLN10#,111,13#..RHD¥80199408-199909

44313ROTOR, VANE PUMP

main44313-12010iLN106,111,RN105,110,YN106¥7,900198808-198810

NO MARK

sub44313-22040¥7,700

main44313-12020iLN106,111,RN105,110,YN106¥7,900198808-198810

MARK 1

sub44313-22050¥7,700

main44313-12030iLN106,111,RN105,110,YN106¥7,900198808-198810

MARK 2

sub44313-22060¥7,700

main44313-12040iLN106,111,RN105,110,YN106¥7,900198808-198810

MARK 3

sub44313-22070¥7,700

main44313-12050iLN106,111,RN105,110,YN106¥7,900198808-198810

MARK 4

sub44313-22080¥7,700

main44313-22040iLN10#,111,13#,RN10#,110,13#,YN106¥7,700198810-200106

NO MARK

main44313-22050iLN106,111,RN105,110,YN106¥7,700198810-200106

MARK 1

main44313-22060iRN135;LN106,111,13#,RN105,110,130,VZN130,YN106,13#..ARL,GEN¥7,700198810-200106

MARK 2

main44313-22070iLN106,111,RN105,110,YN106¥7,700198810-200106

MARK 3

main44313-22080iLN10#,111,13#,RN10#,110,13#,VZN130,YN106¥7,700198810-200106

MARK 4

main44313-26060iKZN205,LN205¥7,700200106

NO MARK

main44313-26070iKZN205,LN205¥7,700200106

MARK 1

main44313-26080iKZN205,LN205¥7,700200106

MARK 2

main44313-26090iKZN205,LN205¥7,700200106

MARK 3

main44313-26100iKZN205,LN205¥7,700200106

MARK 4

main44313-35010iVZN130¥1,130199505-199511

MARK 5

44320PUMP ASSY, VANE

main44310-35620iKZN205¥81,700200108

main44320-35230iRN135;RN105,110,130..ARL¥82,100198904-199105

sub44320-35231¥81,700

main44320-35231iRN135;RN105,110,130..ARL¥81,700199105-199909

main44320-35241iRN106..EFI¥81,700199401-199909

main44320-35250iLN106,111,135..LHD¥82,100198904-199105

sub44320-35251¥81,700

main44320-35251iLN10#,111,13#..LHD¥81,700199105-200106

main44320-35290iYN106,135..RHD¥93,500198808-199708

main44320-35300iYN106,135..LHD¥94,100198808-199105

sub44320-35301¥93,500

main44320-35301iYN106,135..LHD¥93,500199105-199708

main44320-35310iLN106,111..RHD¥82,100198808-198904

main44320-35320iLN106,111..LHD¥82,100198808-198904

main44320-35330iRN105,110¥81,700198808-198904

main44320-35391iYN130¥94,100198908-199008

main44320-35420iVZN130¥93,200199108-199511

main44320-35440iLN10#,111,13#..RHD¥81,300198904-199408

sub44320-35441¥81,700

sub44311-30150¥7,100

sub90179-12022¥370

main44320-35441iLN10#,111,13#..RHD¥81,700199408-199909

main44320-35450iVZN130¥94,100199008-199108

main44320-35570iLN205¥81,700200106

44326RING, CAM(FOR VANE PUMP)

main44325-12010iRN135;LN106,111,13#,RN105,110,130,YN106,13#..ARL,GEN¥8,700198808-200106

NO MARK

main44325-12020iLN106,111,RN105,110,YN106¥8,700198808-200106

MARK 1

main44325-12030iLN10#,111,13#,RN10#,110,13#,YN106..CBR,DSL¥8,700198808-200106

MARK 2

main44325-12040iRN135;LN106,111,13#,RN105,110,130,YN106,13#..ARL,GEN¥8,700198808-200106

MARK 3

main44325-12050iRN135;LN106,111,13#,RN105,110,130,YN106,13#..ARL,GEN¥8,700198808-200106

MARK 4

main44325-12270iKZN205¥4,350200108-200111

NO MARK

main44325-12280iKZN205¥4,350200108-200111

MARK 1

main44325-12290iKZN205¥4,350200108-200111

MARK 2

main44325-12300iKZN205¥4,350200108-200111

MARK 3

main44325-12310iKZN205¥4,350200108-200111

MARK 4

main44325-22070iRN106..EFI¥8,600199401-199909

NO MARK

main44325-22080iRN106..EFI¥8,600199401-199909

MARK 1

main44325-22090iRN106..EFI¥8,600199401-199909

MARK 2

main44325-22100iRN106..EFI¥8,600199401-199909

MARK 3

main44325-22110iRN106..EFI¥8,600199401-199909

MARK 4

main44325-32270iLN205¥6,700200106

NO MARK

main44325-32280iLN205¥6,700200106

MARK 1

main44325-32290iLN205¥6,700200106

MARK 2

main44325-32300iLN205¥6,700200106

MARK 3

main44325-32310iLN205¥6,700200106

MARK 4

main44325-35010iVZN130¥8,600199008-199511

NO MARK

sub44325-50010¥6,900

main44325-35020iVZN130¥8,600199008-199511

MARK 1

sub44325-50020¥6,900

main44325-35030iVZN130¥8,600199008-199511

MARK 2

sub44325-50030¥6,900

main44325-35040iVZN130¥8,600199008-199511

MARK 3

sub44325-50040¥6,900

main44325-35050iVZN130¥8,600199008-199511

MARK 4

sub44325-50050¥6,900

main44325-35060iKZN205¥4,540200111

NO MARK

main44325-35070iKZN205¥4,540200111

MARK 1

main44325-35090iKZN205¥4,540200111

MARK 3

main44325-35100iKZN205¥4,540200111

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iVZN130¥150199008-199511

L=28,OD=4.0

main90250-04049iVZN130¥190199008-199511

L=43,OD=4.0

main90250-04071iLN205¥110200106

L=23.3,OD=4.0

main90250-05008iRN135;LN106,111,13#,RN105,110,130,YN106,13#..ARL,GEN¥240198808-200106

L=25,OD=5.0

44330VALVE ASSY, FLOW CONTROL

main44330-12130iRN105,110..ARL;LN106,111,135..LHD¥8,100198904-199108

MARK A

sub44330-12131¥8,600

main44330-12131iLN10#,111,13#,RN10#,110,13#¥8,600198904-200106

MARK A

sub44330-32670¥8,600

main44330-12140iRN105,110..ARL;LN106,111,135..LHD¥8,100198904-199108

MARK B

sub44330-12141¥8,600

main44330-12141iRN135;LN106,111,13#,RN105,110,130..ARL,GEN¥8,600198904-200106

MARK B

sub44330-32680¥8,600

main44330-12150iVZN130¥8,100198904-199108

MARK C

sub44330-12151¥8,600

main44330-12151iLN10#,111,13#,RN10#,110,13#¥8,600198904-200106

MARK C

sub44330-32690¥8,600

main44330-12160iRN105,110..ARL;LN106,111,135..LHD¥8,100198904-199108

MARK D

sub44330-12161¥8,600

main44330-12161iLN106,111,135..RHD¥8,600198904-200106

MARK D

sub44330-32700¥8,600

main44330-12170iRN105,110..ARL;LN106,111,135..LHD¥8,100198904-199108

MARK E

sub44330-12171¥8,600

main44330-12171iLN106,111,135..RHD¥8,600198904-200106

MARK E

sub44330-32710¥8,600

main44330-12180iRN105,110..ARL;LN106,111,135..LHD¥8,100198904-199108

MARK F

sub44330-12181¥8,600

main44330-12181iLN106,111,135..RHD¥8,600198904-200106

MARK F

sub44330-32720¥8,600

main44330-14010iLN106,111,RN105,110,YN106¥7,900198808-198906

MARK A

sub44330-20010¥8,600

main44330-14020iLN106,111,RN105,110,YN106¥7,900198808-198906

MARK B

sub44330-20020¥8,600

main44330-14030iLN106,111,RN105,110,YN106¥7,900198808-198906

MARK C

sub44330-20030¥8,600

main44330-14040iLN106,111,RN105,110,YN106¥7,900198808-198906

MARK D

sub44330-20040¥8,600

main44330-14050iLN106,111,RN105,110,YN106¥7,900198808-198906

MARK E

sub44330-20050¥8,600

main44330-14060iLN106,111,RN105,110,YN106¥7,900198808-198906

MARK F

sub44330-20060¥8,600

main44330-20010iYN106,135..RHD¥8,600198906-199708

MARK A

sub44330-35191¥8,700

main44330-20020iYN106¥8,600198906-199708

MARK B

sub44330-35201¥8,700

main44330-20030iYN106,135..RHD¥8,600198906-199708

MARK C

sub44330-35211¥8,700

main44330-20040iYN106,135..RHD¥8,600198906-199708

MARK D

sub44330-35221¥8,700

main44330-20050iYN106,135..RHD¥8,600198906-199708

MARK E

sub44330-35231¥8,700

main44330-20060iYN106,135..RHD¥8,600198906-199708

MARK F

sub44330-35241¥8,700

main44330-20310iVZN130¥8,600199108-199511

MARK A

sub44330-35250¥8,600

main44330-20320iVZN130¥8,600199108-199511

MARK B

sub44330-35260¥8,600

main44330-20330iVZN130¥8,600199108-199511

MARK C

sub44330-35270¥8,600

main44330-20340iVZN130¥8,600199108-199511

MARK D

sub44330-35280¥8,600

main44330-20350iVZN130¥8,600199108-199511

MARK E

sub44330-35290¥8,600

main44330-20360iVZN130¥8,600199108-199511

MARK F

sub44330-35300¥8,600

main44330-26071iLN205¥8,500200106

MARK A

main44330-26081iLN205¥8,500200106

MARK B

main44330-26091iLN205¥8,500200106

MARK C

main44330-26101iLN205¥8,500200106

MARK D

main44330-26111iLN205¥8,500200106

MARK E

main44330-26121iLN205¥8,500200106

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iRN135;LN106,111,13#,RN105,110,130,VZN130,YN106,13#..ARL,GEN¥160198808-200106

main90501-13034iLN205¥160200106

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iLN10#,111,13#,RN10#,110,13#,YN106¥260198808-200106

44337UNION, POWER STEERING SUCTION PORT

main44337-30010iLN10#,111,13#..RHD¥2,730198808-199909

main44337-35040iLN10#,111,13#..LHD¥2,550198808-200106

main90404-16016iRN105,110¥1,530198808-199909

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iLN205¥140200106

main96711-19013iLN106,111,RN105,110¥240198808-200106

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iVZN130¥300199008-199511

ID=19.5,OD=22.5

sub90301-19013¥260

main90301-19018iLN205¥240200106

ID=19.2,OD=22.3

main90301-22001iLN10#,111,13#,RN10#,110,13#,YN106¥590198808-200106

OD=25.5,ID=22.5

main96711-19014iLN106,111..LHD;RN105,110,YN106¥210198808-200106

OD=17.0,ID=13.0

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iRN135;LN106,111,13#,RN105,110,130,YN106,13#..ARL,GEN¥6,800198808-200106

main44342-20010iVZN130¥4,160199108-199511

main44342-26020iLN205¥1,530200106

main44342-32010iVZN130¥4,150199008-199108

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-18007iLN205¥110200106

INNER

main90301-47001iLN205¥170200106

OUTER

main90301-52001iVZN130¥300199008-199108

main90301-53002iLN10#,111,13#,RN10#,110,13#,YN106¥300198808-200106

main90301-53004iVZN130¥270199108-199511

44342BSPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)

main90501-23014iRN135;LN106,111,13#,RN105,110,130,YN106,13#..ARL,GEN¥350198808-200106

44343SEAT, FLOW CONTROL SPRING

main44343-12040iLN106,111,RN105,110,YN106¥670198808-200106

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iLN10#,111,13#..LHD;RN10#,110,13#,YN106,135¥210198808-200106

44345BPLATE, VANE PUMP

main44345-12010iLN106,111,RN105,110,YN106¥660198808-200106

L=14.997

main44345-12020iLN10#,111,13#,RN10#,110,13#,VZN130,YN106¥660198808-200106

L=14.995

main44345-12030iLN10#,111,13#,RN10#,110,13#,VZN130,YN106¥660198808-200106

L=14.993

main44345-12040iRN135;LN106,111,13#,RN105,110,130,VZN130,YN106,13#..ARL,GEN¥660198808-200106

L=14.991

main44345-12050iRN135;LN106,111,13#,RN105,110,130,VZN130,YN106,13#..ARL,GEN¥660198808-200106

L=14.989

main44345-26010iLN205¥700200106

L=15.000

main44345-26020iLN205¥700200106

L=14.998

main44345-26030iLN205¥700200106

L=14.996

main44345-26040iLN205¥700200106

L=14.994

main44345-26050iLN205¥700200106

L=14.992

main44345-35010iVZN130¥620199505-199511

ROTOR MARK 5

main44345-60010iKZN205¥350200108

L=15.000

main44345-60020iKZN205¥510200108

L=14.998

main44345-60030iKZN205¥510200108

L=14.996

main44345-60040iKZN205¥510200108

L=14.994

main44345-60050iKZN205¥510200108

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-30200iYN106,135..LHD¥10,000198808-199108

main44306-35140iYN106,13#..RHD¥10,300198808-199708

main44306-35150iVZN130¥10,300199008-199511

main44306-35200iYN106..LHD¥10,500199108-199708

sub44306-35220¥10,600

main44360-35060iRN105,110,13#¥10,300198808-199108

sub44360-35061¥10,500

main44360-35061iRN10#,110,13#¥10,500199108-199909

main44360-35081iLN106,111,135..LHD¥10,300198808-199108

sub44360-35082¥10,300

main44360-35082iLN10#,111,13#..LHD¥10,300199108-200106

main44360-35090iLN106,111,13#..RHD¥10,600198808-199004

sub44360-35091¥10,300

main44360-35091iLN106,111,13#..RHD¥10,300199004-199108

sub44360-35092¥10,500

main44360-35092iLN10#,111,13#..RHD¥10,500199108-199909

main44360-35130iKZN205¥10,200200108

main44360-35180iLN205¥10,300200106

44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)

main90480-16005iLN10#,111,13#..RHD¥620198808-199909

main90540-09020iLN205¥260198808-200106

44362DSPACER(FOR VANE PUMP OIL RESERVOIR)

main90387-10040iLN10#,111,13#..RHD198808-199909

main90560-06014iRN10#,110,13#;LN10#,111,13#..LHD¥350198808-200106

44392LABEL, OIL RESERVOIR CAUTION

main44392-35010iLN10#,111,13#,RN10#,110,13#¥230198808-200106

9011906256

main90119-06256¥100

9011910072

main90119-10072¥160

9017012043

main90170-12043¥180

9020112022

main90201-12022¥110

9161160814

main91611-60814¥100

9451101200

main94511-01200¥200

41 parts on this diagram · 8 diagrams in section
