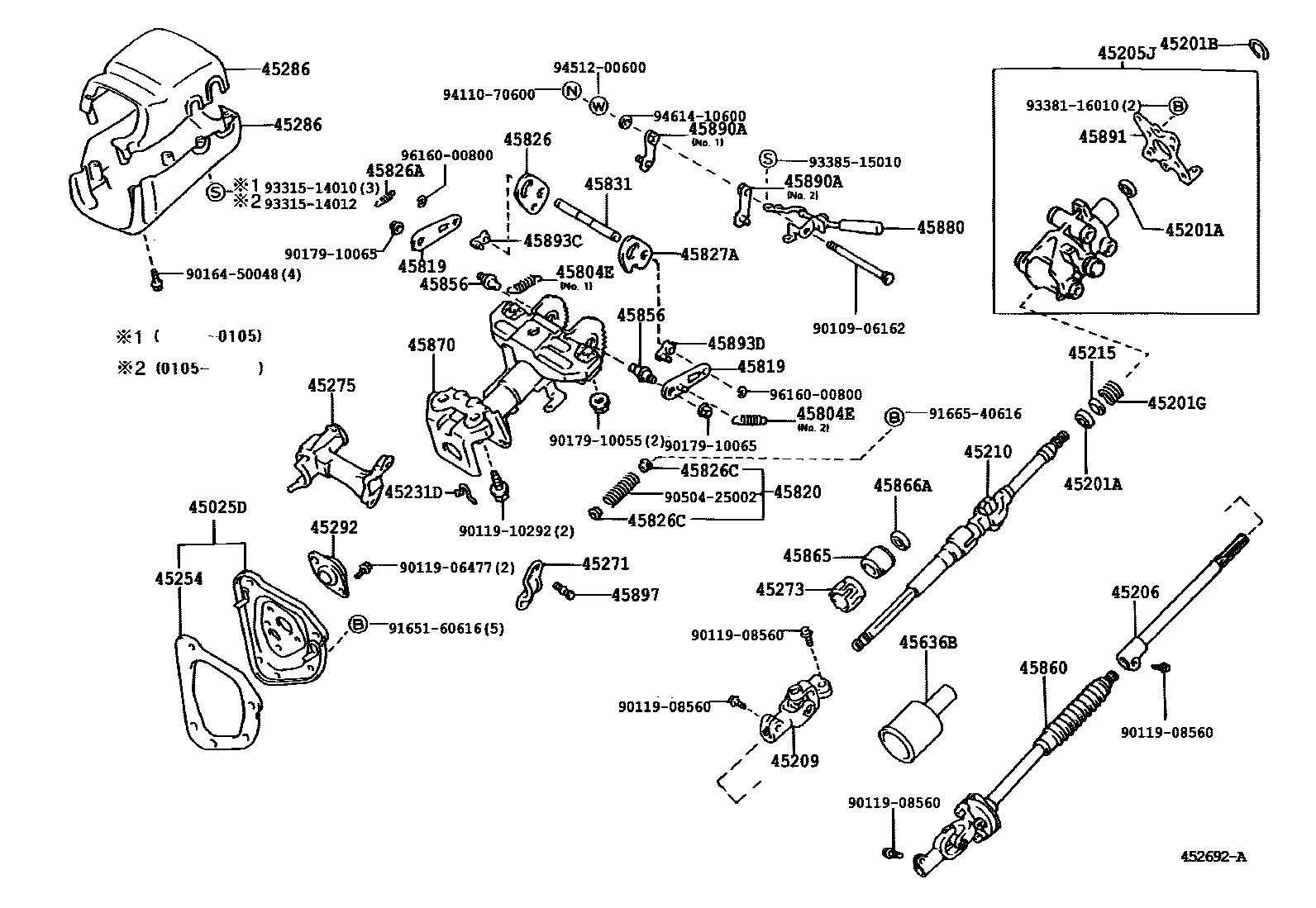

STEERING COLUMN & SHAFT

0001 1TILT STEERING 0002 1RIGID STEERING 0003 1TILT STEERING 0004 1TILT STEERING 0005 1RIGID STEERING

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-35170iLN106,RN105,YN106..RHD198808-199909

main45025-35180iLN107,111,13#,RN106,110,13#,YN13#..RHD198808-199812

main45025-35190iLN106,RN105,YN106..LHD198808-199708

main45025-35200iKZN205,LN205198808-200106

main45025-35250iVZN130199008-199511

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18004iLN106,111,RN105,110,YN106198808-198809

sub90363-18005

main90363-18005iLN106,111,13#,RN105,110,13#,YN106,13#198809-198911

main90363-18007iLN106,111,13#,RN105,110,13#,YN106,13#198911-199001

sub90363-18010

main90363-18009iRN105,135..V199108-200106

UPR

main90363-18009iRN105,135..V199108-199708

W(COLLAPSIBLE TILT STEERING),UPR

main90363-18009iRN105,135..V199108-199909

W(RIGID TILT STEERING),UPR

main90363-18009iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#199001-199108

main90363-18010iRN10#..ARL;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN130,RN130,YN106..LHD;LN10#,111,135,RN110,135..(DLX,SR5)..(ARL,GEN)199108-199303

LWR

sub90363-18005

main90363-18010iLN130,RN130,VZN130..ARL199108-199303

W(COLLAPSIBLE TILT STEERING),LWR

sub90363-18005

main90363-18010iLN130,RN130,VZN130..ARL199108-199303

W(RIGID TILT STEERING),LWR

sub90363-18005

main90363-18010iLN107..ARL;LN111..GEN..IV3;LN130,RN130..GEN;LN106,135,RN105,110,135,YN106;LN111,RN106..(DLX,SR5)..(CBR,DSL)..CBU199108-199909

LOWER

sub90363-18005

main90363-18011iRN10#..ARL;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN130,RN130,YN106..LHD;LN10#,111,135,RN110,135..(DLX,SR5)..(ARL,GEN)199303-199909

W(RIGID TILT STEERING),LWR

main90363-18011iRN105,135..V199108-199308

main90363-18011iLN130,RN130,VZN130..ARL199303-200106

LWR

main90363-18011iLN130,RN130,VZN130..ARL199303-199708

W(COLLAPSIBLE TILT STEERING),LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iLN111,RN110..ARL198908-199108

T=1.20,W(RIGID TILT STEERING & CRUISE CONTROL)

main90520-17042iLN107,RN10#..ARL;LN106,111,135,RN110,135..ARL,GEN;LN130,RN106,130,YN106..LHD..(DLX,STD)..(CBR,DSL)198808-199909

T=1.20,W(RIGID TILT STEERING)

main90520-17042iRN105..GEN;RN106..SR5..EFI;LN130,RN13#,VZN130..ARL,V199308-200108

T=1.20,LOWER

main90520-17042iRN105..ARL,V;RN106..STD..EFI;LN130,RN130..GEN;LN10#,111,135,RN106,110,135,YN106..(CBR,DSL)..(ARL,GEN)198808-200106

T=1.20,LWR

main90520-17042iRN105..ARL,V;RN106..STD..EFI;LN130,RN130..GEN;LN10#,111,135,RN106,110,135,YN106..(CBR,DSL)..(ARL,GEN)198808-200106

T=1.20,W(COLLAPSIBLE TILT STEERING)

main90520-17042iKZN205;LN205..T1198908-199308

T=1.20

main90520-17196iLN106,111,RN105,110,YN106198808-198810

T=1.35-1.45,UPR

main90520-17269iLN205199709-200108

T=1.20,UPPER

main90520-17269iRN105..ARL,V;RN106..STD..EFI;LN130,RN130..GEN;LN10#,111,135,RN106,110,135,YN106..(CBR,DSL)..(ARL,GEN)198810-200106

T=1.20,UPR

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198808-200106

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-34010iLN107,RN135..LHD..(DLX,SR5);LN106,111,13#,RN10#,130,YN106..LHD..(DLX,STD)199210-200106

main45205-35230iLN106,111,RN105,110..ARL198808-198809

sub45205-35231

main45205-35231iRN105..ARL;LN106..ARL..IV3;LN106..RHD..T1..CBU;LN10#,111,13#,RN106,110,13#,VZN130..RHD..(DLX,SR5)198809-199909

main45205-35240iLN106,111,RN105,YN106..LHD198808-198809

sub45205-35241

main45205-35241iLN106,111,13#,RN105,13#,YN106,135..LHD198809-199210

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-35020iVZN130199008-199511

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-35020iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198808-199108

sub45209-35030

main45209-35030iRN106..ARL;LN107..DLX,SR5;RN106,YN106..LHD..STD;LN106,111,13#,RN105,110,13#,VZN130199108-200106

45210SHAFT ASSY, STEERING MAIN

main45210-35140iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135..ARL,GEN198808-199909

main45210-35150iLN106,RN105..ARL;LN106,YN106..LHD;LN111,135,YN135..GEN198908-199108

W(RIGID TILT STEERING & CRUISE CONTROL)

sub45210-60110

main45210-35150iLN111,RN110..ARL198808-199412

W(RIGID TILT STEERING)

sub45210-60110

main45210-35150iLN130,RN130,VZN130,YN130..ARL198908-199308

sub45210-60110

main45210-35160iLN205198808-200108

main45210-35170iLN205200106

W(*80,DRIVER SIDE)

main45210-35170iRN135..V199308-199511

main45210-35170iRN105,135..V198808-200106

W(COLLAPSIBLE TILT STEERING)

main45210-35230iLN10#..RHD199712-199909

W(RIGID TILT STEERING)

main45210-60110iRN105..GEN;LN130,RN130,VZN130..ARL199412-199708

sub45210-35230

main45210-60110iLN107,RN10#..ARL;LN106,111,135,RN110,135..ARL,GEN;LN130,RN106,130,YN106..LHD..(DLX,STD)..(CBR,DSL)199412-199712

W(TILT STEERIG)

sub45210-35230

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198808-200106

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-01005iKZN205,LN205198808-200106

45254SHIELD, STEERING COLUMN HOLE

main45254-35100iLN10#,111,13#,RN10#,110,13#,YN106,13#..RHD198808-199909

main45254-35110iKZN205,LN205198808-200106

main45254-35120iVZN130199008-199511

45271CLAMP, STEERING COLUMN, UPPER

main45271-12050iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135198808-200106

main45271-12060iLN107,RN10#..ARL;LN106,111,135,RN110,135..ARL,GEN;LN130,RN106,130,YN106..LHD..(DLX,STD)..(CBR,DSL)198808-199909

W(RIGID TILT STEERING)

main45271-12060iRN106..STD..EFI;LN107,RN105..LHD..(DLX,SR5)198808-200106

W(COLLAPSIBLE TILT STEERING)

main45271-12060iLN106,RN105..ARL;LN106,YN106..LHD;LN111,135,YN135..GEN198908-199108

W(RIGID TILT STEERING & CRUISE CONTROL)

main45271-12060iLN130,RN130,VZN130,YN130..ARL198908-199708

45273BUSH, STEERING MAIN SHAFT

main45273-16010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

45275BRACKET, STEERING COLUMN, UPPER

main45280-35190iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106..ARL,GEN198808-200106

sub45280-35220

main45280-35210iLN111,RN110..ARL198808-199108

W(RIGID TILT STEERING)

sub45280-35240

main45280-35210iRN105,135..V198808-199108

W(COLLAPSIBLE TILT STEERING)

sub45280-35240

main45280-35210iLN130,RN130,VZN130,YN130198908-199108

W(RIGID TILT STEERING & CRUISE CONTROL)

sub45280-35240

main45280-35220iRN105,135..V199208-199708

main45280-35240iRN10#..ARL;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN130,RN130,YN106..LHD;LN10#,111,135,RN110,135..(DLX,SR5)..(ARL,GEN)199108-200106

W(COLLAPSIBLE TILT STEERING)

main45280-35240iRN10#..ARL;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN130,RN130,YN106..LHD;LN10#,111,135,RN110,135..(DLX,SR5)..(ARL,GEN)199108-199909

W(RIGID TILT STEERING)

main45280-35240iRN105..GEN;LN130,RN13#,VZN130..ARL,V199308-199708

45286COVER, STEERING COLUMN

main45286-04010-B0iLN107..GEN199703-200106

MEDIUM GRAY,TRIM1#,(L),UPPER

main45286-04020iKZN205,LN205..SR5200108-200111

UPPER

main45286-04020-B0iKZN205..SR5200111-200412

W/O(*80),MEDIUM GRAY,TRIM1#,UPPER

main45286-04020-B0iKZN205..SR5200108-200412

MEDIUM GRAY,TRIM1#,UPPER

main45286-04020-B0iLN107..(DLX,SR5)..GEN199703-200106

W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,LOWER

main45286-35210-04iLN111,RN110..ARL199408-199701

W(RIGID TILT STEERING),BLUE,TRIM8#,LOWER

sub45286-35210

main45286-35260-02iLN135,YN135199008-199708

RED,TRIM3#,UPPER

sub45286-35270

sub45286-35260

main45286-35260-03iLN106,111,RN105,110,YN106198808-198901

GRAY,TRIM1#,UPPER

sub45286-35270

sub45286-35260

main45286-35260-04iLN106,111,RN105,110,YN106198808-198901

BLUE,TRIM8#,UPPER

sub45286-35270

sub45286-35260

main45286-35260-06iLN106,111,RN105,110,YN106198808-198901

BROWN,TRIM4#,UPPER

sub45286-35270

sub45286-35260

main45286-35260-B0iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135198901-199909

MEDIUM GRAY,TRIM1#,UPPER

sub45286-35270

sub45286-35260

main45286-35260-E0iLN106,111,135,RN105,110,135,YN106,135198901-199108

BROWN,TRIM4#,UPPER

sub45286-35270

sub45286-35260

main45286-35260-J0iLN13#,RN105,13#..DLX..(GEN,V)198901-199708

MEDIUM BLUE,TRIM8#,UPPER

sub45286-35270

sub45286-35260

main45286-35270-02iLN135,YN135..LHD199008-199108

POWER & LIGHTING PACKAGE,RED,TRIM3#,UPPER

sub45286-35270

main45286-35270-03iLN130,RN13#..LHD..GEN198904-199511

POWER & LIGHTING PACKAGE,GRAY,TRIM1#,UPPER

sub45286-35270

main45286-35270-03iLN106,111,RN105,110,135..SR5198808-199812

LIGHTING PACKAGE,GRAY,TRIM1#,UPPER

sub45286-35270

main45286-35270-03iLN130,RN13#..LHD..GEN199108-199511

POWER PACKAGE,GRAY,TRIM1#,UPPER

sub45286-35270

main45286-35270-04iLN130,RN13#..LHD..GEN198904-199511

POWER & LIGHTING PACKAGE,BLUE,TRIM8#,UPPER

sub45286-35270

main45286-35270-04iLN135..LHD199108-199511

POWER PACKAGE,BLUE,TRIM8#,UPPER

sub45286-35270

main45286-35270-04iLN107,111,RN106,110..ARL198808-199408

LIGHTING PACKAGE,BLUE,TRIM8#,UPPER

sub45286-35270

main45286-35270-04iLN106,111,RN105,110,135..SR5199008-199108

POWER & LIGHTING PACKAGE,BLUE,TRIM1#,8#,UPPER

sub45286-35270

main45286-35270-04iLN135,YN135..LHD199008-199108

LIGHTING PACKAGE,BLUE,TRIM1#,8#,UPPER

sub45286-35270

main45286-35270-06iLN135,YN135..LHD198904-199108

POWER & LIGHTING PACKAGE,BROWN,TRIM4#,UPPER

sub45286-35270

main45286-35270-06iLN106,111,RN105,110,135..SR5198808-199108

LIGHTING PACKAGE,BROWN,TRIM4#,UPPER

sub45286-35270

main45286-35280-02iLN135,YN135199008-199108

W(RIGID TILT STEERING),RED,TRIM3#,UPPER

sub45286-35290

main45286-35280-02iRN105..V199108-199708

W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,UPPER

sub45286-35290

main45286-35280-03iRN105..V;RN106..EFI198808-199708

W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPPER

sub45286-35290

main45286-35280-03iLN107,RN10#..ARL;LN106,111,135,RN110,135..ARL,GEN;LN130,RN106,130,YN106..LHD..(DLX,STD)..(CBR,DSL)198808-199909

W(RIGID TILT STEERING),GRAY,TRIM1#,UPPER

sub45286-35290

main45286-35280-03iRN105..V;RN106..EFI199008-199708

GRAY,TRIM1#,UPPER

sub45286-35290

main45286-35280-04iLN130,RN13#,VZN130..ARL,V198808-199511

W(RIGID TILT STEERING),BLUE,TRIM8#,UPPER

sub45286-35290

main45286-35280-04iLN130,RN13#,VZN130..ARL,V198908-199511

BLUE,TRIM8#,UPPER

sub45286-35290

main45286-35280-04iRN10#..ARL;LN130,RN130,YN106..LHD;LN10#,111,135,RN110,135..ARL,GEN198808-199708

W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPPER

sub45286-35290

main45286-35280-06iLN106..ARL;LN106,YN106..LHD;LN111,135,RN105,110,YN135..ARL,GEN198808-199108

W(RIGID TILT STEERING),BROWN,TRIM4#,UPPER

sub45286-35290

main45286-35280-06iLN106..ARL;LN106,YN106..LHD;LN111,135,RN105,110,YN135..ARL,GEN198808-199108

W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,UPPER

sub45286-35290

main45286-35280-06iVZN130..4D;LN130,RN130198908-199108

BROWN,TRIM4#,UPPER

sub45286-35290

main45286-35290-02iLN135,YN135..LHD199008-199108

POWER & LIGHTING PACKAGE & W(RIGID TILT STEERING),RED,TRIM3#,UPPER

sub45286-35290

main45286-35290-03iLN13#,RN13#..LHD..GEN199108-199511

POWER PACKAGE & W(RIGID TILT STEERING),GRAY,TRIM1#,UPPER

sub45286-35290

main45286-35290-03iRN135..V198907-199308

LIGHTING PACKAGE & W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,UPPER

sub45286-35290

main45286-35290-03iLN10#,111,RN10#,110..SR5..ARL198808-199812

LIGHTING PACKAGE & W(RIGID TILT STEERING),GRAY,TRIM1#,UPPER

sub45286-35290

main45286-35290-03iVZN130..2D198908-199108

GRAY,TRIM1#,UPPER

sub45286-35290

main45286-35290-03iVZN130..4D199008-199511

SR LIMITED PACKAGE,GRAY,TRIM1#,UPPER

sub45286-35290

main45286-35290-03iRN135..V199308-199511

LIGHTING PACKAGE,GRAY,TRIM1#,UPPER

sub45286-35290

main45286-35290-03iLN135,YN135..LHD198904-199108

POWER & LIGHTING PACKAGE & W(RIGID TILT STEERING),GRAY,TRIM1#,UPPER

sub45286-35290

main45286-35290-04iRN135..V199308-199511

LIGHTING PACKAGE,BLUE,TRIM8#,UPPER

sub45286-35290

main45286-35290-04iVZN130..2D198908-199108

BLUE,TRIM8#,UPPER

sub45286-35290

main45286-35290-04iVZN130..4D199008-199511

SR LIMITED PACKAGE,BLUE,TRIM8#,UPPER

sub45286-35290

main45286-35290-04iLN13#,RN13#..LHD..GEN199108-199511

POWER PACKAGE & W(RIGID TILT STEERING),BLUE,TRIM8#,UPPER

sub45286-35290

main45286-35290-04iRN135..V198907-199308

LIGHTING PACKAGE & W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,UPPER

sub45286-35290

main45286-35290-04iLN10#,111,RN10#,110..SR5..ARL198808-199408

LIGHTING PACKAGE & W(RIGID TILT STEERING),BLUE,TRIM8#,UPPER

sub45286-35290

main45286-35290-04iLN135,YN135..LHD198904-199108

POWER & LIGHTING PACKAGE & W(RIGID TILT STEERING),BLUE,TRIM8#,UPPER

sub45286-35290

main45286-35290-06iRN135198907-199108

LIGHTING PACKAGE & W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,UPPER

sub45286-35290

main45286-35290-06iLN106,111,RN105,110..SR5198808-199108

LIGHTING PACKAGE & W(RIGID TILT STEERING),BROWN,TRIM4#,UPPER

sub45286-35290

main45286-35290-06iVZN130..4D199008-199108

SR LIMITED PACKAGE,BROWN,TRIM4#,UPPER

sub45286-35290

main45286-35290-06iVZN130..4D198908-199108

BROWN,TRIM4#,UPPER

sub45286-35290

main45286-35290-06iLN135,YN135..LHD198904-199108

POWER & LIGHTING PACKAGE & W(RIGID TILT STEERING),BROWN,TRIM4#,UPPER

sub45286-35290

main45286-35470-B0iLN205200106-200412

W/O(*80),MD.GRAY,TRIM1#,UPPER

main45286-35470-B0iKZN205200108-200412

MD.GRAY,TRIM1#,UPPER

main45287-04010-B0iLN107..GEN199703-200106

MEDIUM GRAY,TRIM1#,(L),LOWER

main45287-04020iKZN205,LN205..SR5200108-200111

LOWER

main45287-04020-B0iKZN205..SR5200108-200412

MEDIUM GRAY,TRIM1#,LOWER

main45287-04020-B0iKZN205..SR5200111-200412

W/O(*80),MEDIUM GRAY,TRIM1#,LOWER

main45287-04020-B0iLN107..(DLX,SR5)..GEN199703-200106

W(COLLAPSIBLE TILT STEERING),MEDIUM GRAY,TRIM1#,UPPER

main45287-35200-02iRN105..V199008-199708

RED,TRIM3#,LOWER

sub45287-35200

main45287-35200-02iLN135,YN135199008-199108

POWER & LIGHTING PACKAGE,RED,TRIM3#,LOWER

sub45287-35200

main45287-35200-03iLN106,111,RN105,110,YN106198808-198901

GRAY,TRIM1#,LOWER

sub45287-35200

main45287-35200-04iLN106,111,RN105,110,YN106198808-198901

BLUE,TRIM8#,LOWER

sub45287-35200

main45287-35200-06iLN106,111,RN105,110,YN106198808-198901

BROWN,TRIM4#,LOWER

sub45287-35200

main45287-35200-B0iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135198901-199909

MEDIUM GRAY,TRIM1#,LOWER

sub45287-35200

main45287-35200-B0iLN135,YN135..LHD198904-199108

POWER & LIGHTING PACKAGE,MEDIUM GRAY,TRIM1#,LOWER

sub45287-35200

main45287-35200-E0iLN135,YN135..LHD198904-199108

POWER & LIGHTING PACKAGE,BROWN,TRIM4#,LOWER

sub45287-35200

main45287-35200-E0iLN106,111,135,RN105,110,135,YN106,135198901-199108

BROWN,TRIM4#,LOWER

sub45287-35200

main45287-35200-J0iRN105..ARL,V;LN130,RN13#..LHD..GEN;LN10#,111,RN106,110,YN106198901-199708

MEDIUM BLUE,TRIM8#,LOWER

sub45287-35200

main45287-35200-J0iLN135..LHD198904-199511

POWER & LIGHTING PACKAGE,MEDIUM BLUE,TRIM8#,LOWER

sub45287-35200

main45287-35210-02iRN105..V199108-199708

W(COLLAPSIBLE TILT STEERING),RED,TRIM3#,LOWER

sub45287-35210

main45287-35210-02iLN135,YN135199008-199108

W(RIGID TILT STEERING),RED,TRIM3#,LOWER

sub45287-35210

main45287-35210-03iLN107,RN10#..ARL;LN106,111,135,RN110,135..ARL,GEN;LN130,RN106,130,YN106..LHD..(DLX,STD)..(CBR,DSL)198808-199909

W(RIGID TILT STEERING),GRAY,TRIM1#,LOWER

sub45287-35210

main45287-35210-03iLN130,RN130,VZN130,YN130..ARL198908-199708

GRAY,TRIM1#,LOWER

sub45287-35210

main45287-35210-03iRN106..EFI;RN105,135..V198808-199708

W(COLLAPSIBLE TILT STEERING),GRAY,TRIM1#,LOWER

sub45287-35210

main45287-35210-04iRN10#..ARL;LN130,RN130,YN106..LHD;LN10#,111,135,RN110,135..ARL,GEN198808-199511

W(RIGID TILT STEERING),BLUE,TRIM8#,LOWER

sub45287-35210

main45287-35210-04iRN10#..ARL;LN130,RN130,YN106..LHD;LN10#,111,135,RN110,135..ARL,GEN198908-199511

BLUE,TRIM8#,LOWER

sub45287-35210

main45287-35210-04iRN135..V;RN10#..LHD..(DLX,STD)198808-199708

W(COLLAPSIBLE TILT STEERING),BLUE,TRIM8#,LOWER

sub45287-35210

main45287-35210-06iLN106..ARL;LN106,YN106..LHD;LN111,135,RN105,110,YN135..ARL,GEN198808-199108

W(RIGID TILT STEERING),BROWN,TRIM4#,LOWER

sub45287-35210

main45287-35210-06iRN105,135..V198808-199108

W(COLLAPSIBLE TILT STEERING),BROWN,TRIM4#,LOWER

sub45287-35210

main45287-35210-06iLN130,RN130,VZN130,YN130198908-199108

BROWN,TRIM4#,LOWER

sub45287-35210

main45287-35360-B0iKZN205200108-200412

MD.GRAY,TRIM1#,LOWER

main45287-35360-B0iLN205200106-200412

W/O(*80),MD.GRAY,TRIM1#,LOWER

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35050iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

45636BPROTECTOR, INTERMEDIATE LINK JOINT

main45636-35030iLN107..ARL;RN106..CBR;RN106..SR5..EFI;LN106,111,13#,RN105,110,13#,YN106,13#..ARL,GEN198808-199909

main45636-35040iKZN205198808-200106

45804ESPRING, TENSION(FOR STEERING TILT LEVER)

main90507-08010iRN106..ARL;LN107..DLX,SR5;RN106,YN106..LHD..STD;LN106,111,13#,RN105,110,13#,VZN130198808-200106

NO.2

main90507-12035iYN106..LHD;RN10#..ARL,V;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN10#,111,13#,RN110,13#,VZN130..DLX,SR5198808-200106

NO.1

45819RETAINER, TILT LEVER

main45819-22040iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198808-199302

main45819-22060iYN106..LHD;RN10#..ARL,V;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN10#,111,13#,RN110,13#,VZN130..DLX,SR5199302-200106

45820SPRING ASSY, TILT STEERING SUPPORT

main45820-35010iYN106..LHD;RN10#..ARL,V;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN10#,111,13#,RN110,13#,VZN130..DLX,SR5199004-200106

45826LEVER, STEERING TILT

main45826-22050iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198808-200106

45826ASPRING, TENSION(FOR STEERING TILT LEVER)

main90507-07003iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198808-200106

45826CBUSH(FOR STEERING TILT LEVER)

main90386-06031iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,YN13#198808-199004

main90386-06043iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#199004-200106

45827ALEVER, STEERING TILT SUB

main45827-22030iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198808-200106

45831BOLT, TILT LEVER LOCK, NO.1

main45831-22020iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198808-200106

45856BOLT, TILT STEERING, NO.2

main45856-22010iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198808-200106

OD=9.989-9.998

main45856-22020iLN106,111,135,RN105,135,YN106,135..LHD198808-198909

OD=9.998-10.007

45860SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45860-35090iLN106,RN105,YN106..ARL,GEN198808-199708

W(POWER STEERING)

main45860-35090iLN111..ARL;LN106,130,RN105,110,130,YN106,130..ARL,GEN198908-199909

main45860-35100iLN106..ARL;RN105..GEN199008-199708

main45860-35100iLN106,RN105,YN106..ARL,GEN198808-199909

W(POWER STEERING)

main45860-35110iLN111,135,YN135..GEN198808-199708

main45860-35120iRN135198907-199708

W(POWER STEERING)

sub45860-35121

main45860-35120iRN135..V;LN107,RN105..LHD198808-200106

sub45860-35121

main45860-35130iRN105..V198808-199708

W(POWER STEERING)

sub45860-35131

main45860-35140iRN135198907-199708

sub45860-35141

main45860-35150iVZN130199008-199511

sub45860-35151

main45860-35270iLN205200106

sub45860-35271

main45860-35280iKZN205200108

sub45860-35281

45865COLLAR, STEERING MAIN SHAFT

main45865-12050iRN105,135..V198808-199306

sub45865-12060

main45865-12060iRN105,135..V;RN106..STD..EFI;LN107..(DLX,SR5)..GEN199306-200106

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-12010iRN105,135..V198808-199306

45870TUBE ASSY, STEERING COLUMN

main45870-35110iLN106,111,RN105,110,YN106..RHD198808-198809

sub45870-35111

main45870-35111iRN105..ARL;LN10#,111,135,RN106,110,135,YN106..RHD198809-199909

main45870-35120iLN106,111,YN106..LHD198808-198809

sub45870-35121

main45870-35121iRN106..SR5..EFI;LN106,111,13#,RN106,13#,YN106,135..LHD..(CBR,DSL)..GEN198809-199909

main45870-35130iLN106,RN105..ARL;LN106,YN106..LHD;LN111,135,YN135..GEN198908-199108

W(RIGID TILT STEERING & CRUISE CONTROL)

main45870-35130iLN106..ARL;LN106,YN106..LHD;LN111,135,RN105,110,YN135..ARL,GEN198808-199108

W(RIGID TILT STEERING)

main45870-35140iRN105..V198808-198809

sub45870-35141

main45870-35141iRN105,135..V198809-199108

sub45870-35280

main45870-35150iRN105,135..V198808-199108

W(COLLAPSIBLE TILT STEERING)

main45870-35240iLN130,RN130,VZN130..ARL199108-199909

W(RIGID TILT STEERING)

main45870-35240iRN105..GEN;LN130,RN130,VZN130..ARL199308-199708

main45870-35260iRN135..V199308-199511

main45870-35260iRN105,135..V199108-200106

W(COLLAPSIBLE TILT STEERING)

main45870-35280iRN105,135..V199108-200106

45880LEVER ASSY, STEERING TILT

main45880-35010iYN106..LHD;RN10#..ARL,V;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN10#,111,13#,RN110,13#,VZN130..DLX,SR5198808-200106

45890APAWL ASSY, TILT STEERING

main45890-20110iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198911-200106

NO.1

main45890-22080iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,YN13#198808-198911

NO.1

sub45890-20110

main45890-22090iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198808-200106

NO.2

45891BRACKET, TURN SIGNAL

main45891-35030iLN135,YN135..RHD;LN106,111,130,RN105,110,130,VZN130,YN130..ARL198808-199909

main45891-35040iLN107,RN135..LHD..(DLX,SR5);LN106,111,13#,RN10#,130,YN106,135..LHD..(DLX,STD)198808-200106

45893CSTOPPER, STEERING PAWL, RH

main45893-22030iRN106..ARL;RN106,YN106..LHD..STD;LN10#,111,13#,RN105,110,13#,VZN130198811-199601

MARK 1

main45893-22040iRN106..ARL;RN106,YN106..LHD..STD;LN10#,111,13#,RN105,110,13#,VZN130198811-199601

MARK 2

main45893-22050iRN106..ARL;RN106,YN106..LHD..STD;LN10#,111,13#,RN105,110,13#,VZN130198808-199601

MARK 3

main45893-22060iYN106..LHD;RN10#..ARL,V;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN10#,111,13#,RN110,13#,VZN130..DLX,SR5198811-199601

MARK 4

main45893-22070iLN106..ARL;LN106,YN106..LHD;LN111,13#,RN105,110,13#,VZN130,YN13#198811-199601

MARK 5

main45893-24010iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK 1

main45893-24020iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK 2

main45893-24030iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK 3

main45893-24040iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK 4

main45893-24050iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK 5

main45893-24060iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK 6

main45893-24070iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK 7

45893DSTOPPER, STEERING PAWL, LH

main45893-20260iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK A

main45893-20270iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK B

main45893-20280iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK C

main45893-20290iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK D

main45893-20300iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK E

main45893-20310iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK F

main45893-20320iRN106..ARL;LN107..DLX,SR5;LN106,111,RN105,110;RN106,YN106..LHD..STD199601-200106

MARK G

main45893-22080iRN106..ARL;RN106,YN106..LHD..STD;LN10#,111,13#,RN105,110,13#,VZN130198811-199601

MARK A

main45893-22090iYN106..LHD;RN10#..ARL,V;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN10#,111,13#,RN110,13#,VZN130..DLX,SR5198811-199601

MARK B

main45893-22100iRN106..ARL;RN106,YN106..LHD..STD;LN10#,111,13#,RN105,110,13#,VZN130198808-199601

MARK C

main45893-22110iYN106..LHD;RN10#..ARL,V;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN10#,111,13#,RN110,13#,VZN130..DLX,SR5198811-199601

MARK D

main45893-22120iYN106..LHD;RN10#..ARL,V;LN106..T1..CBU;LN106..ARL..IV3;LN106..LHD..TW1;LN106..LHD..T1..IV3;LN10#,111,13#,RN110,13#,VZN130..DLX,SR5198811-199601

MARK E

45897BOLT, STEERING LOCK SET

main45897-12020iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

9010906162

main90109-06162

9011906477

main90119-06477

9011908560

main90119-08560

9011910292

main90119-10292

9016450048

main90164-50048

9017910055

main90179-10055

9017910065

main90179-10065

9050425002

main90504-25002

9165160616

main91651-60616

9166540616

main91665-40616

9331514010

main93315-14010

9331514012

main93315-14012

9338116010

main93381-16010

9338515010

main93385-15010

9411070600

main94110-70600

9451200600

main94512-00600

9461410600

main94614-10600

9616000800

main96160-00800

54 parts on this diagram · 5 diagrams in section
