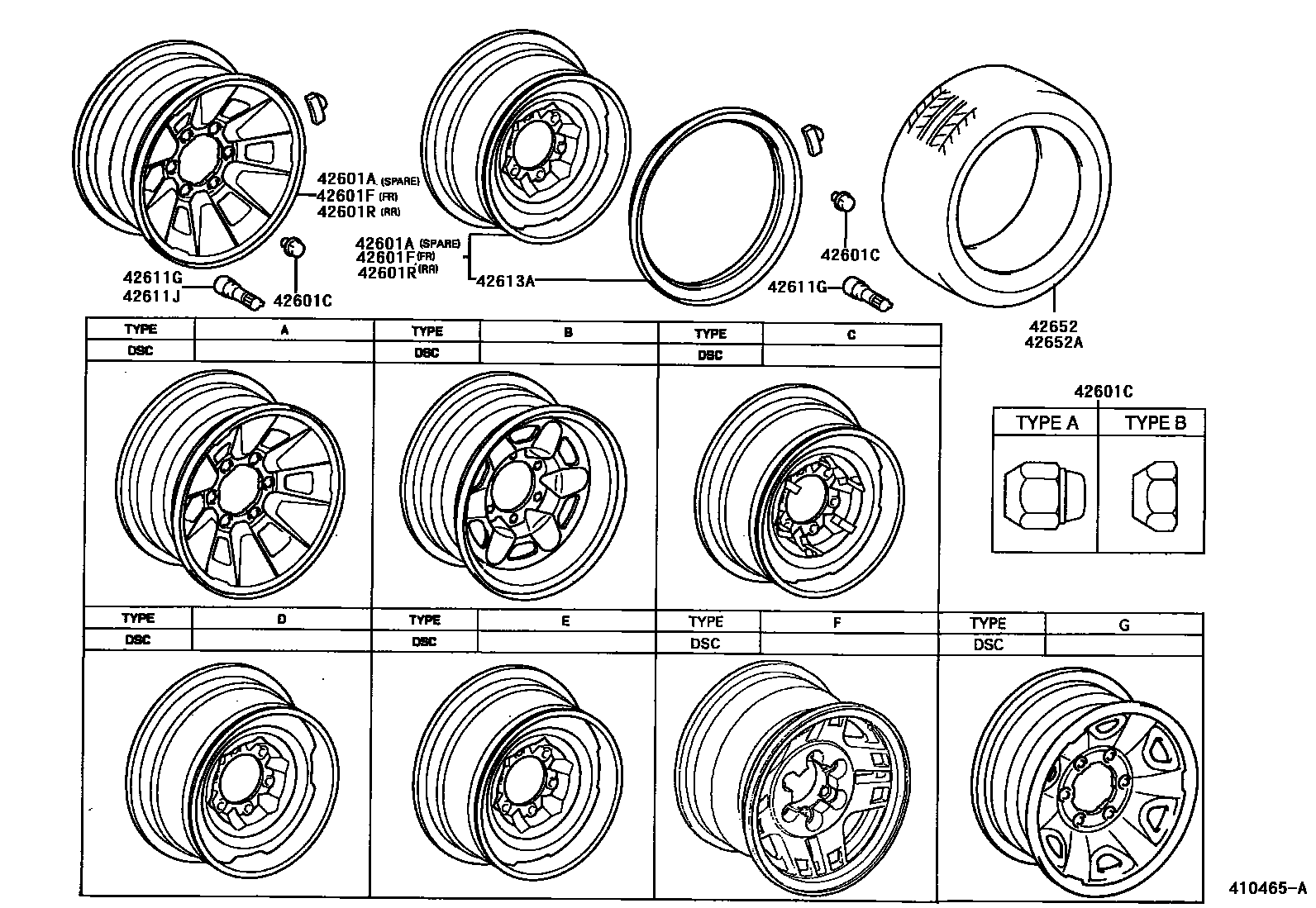

DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E2 ,8E3
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,4J9 ,541 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,4J9 ,541 ,6K3 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E2 ,8E3
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7 ,4J8 ,6J7 ,8D8 ,8E3
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,3H4 ,3H7 ,4J9 ,6K3 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,6J7 ,8D8 ,8E3
6JX16,TYPE A,SILVER M,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E3
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E3
6JX16,#,TYPE A
6JX16,TYPE B,SILVER M.
15X6JJ,#,TYPE D:REFER TO ILLUSTRATION,SILVER M.
15X6JJ,TYPE G:REFER TO ILLUSTRATION,SILVER M.
16X6J,TYPE B,SILVER
16X6J,OFFSET 30, #,TYPE A:REFER TO ILLUSTRATION,SILVER M.
5.50F-16,#,TYPE D
5.50F-16,#,TYPE D,GRAY
5.50F-15,#,TYPE E:REFER TO ILLUSTRATION,BEIGE
5.50F-16,#,TYPE D,GRAY
15X7JJ,SILVER,TYPE F:REFER TO ILLUSTRATION
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
CAP NUT
W(WIDE SPARE TIRE)
BRAZIL SPEC & W(ALUMINUM WHEEL)
42601FWHEEL, DISC (FOR FRONT)
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,4J9 ,541 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,4J9 ,541 ,6K3 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E2 ,8E3
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E2 ,8E3
6JX16,TYPE A,SILVER M,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E3
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E3
6JX16,TYPE A:REFER TO ILLUSTRATION,SILVER M,045 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,8D8,8E2
6JX16,TYPE A:REFER TO ILLUSTRATION,SILVER M,045 ,147 ,179 ,3H4 ,3H7 ,4J9 ,6K3 ,8D8,8E2
6JX16,TYPE A:REFER TO ILLUSTRATION,SILVER M,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,6J7,8D8 ,8E3
6JX16,TYPE A:REFER TO ILLUSTRATION,SILVER M,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7,4J8 ,6J7 ,8D8 ,8E3
6JX16,#,TYPE A:REFER TO ILLUSTRATION
6JX16,#,TYPE A
15X6JJ,OFFSET 30, #,TYPE A:REFER TO ILLUSTRATION,SILVER M.
6JX16,TYPE B:REFER TO ILLUSTRATION,SILVER M.
15X6JJ,TYPE G:REFER TO ILLUSTRATION,SILVER M.
16X6J,TYPE B:REFER TO ILLUSTRATION,SILVER
16X6J,OFFSET 30, #,TYPE A:REFER TO ILLUSTRATION,SILVER M.
5.50FX15,TYPE C:REFER TO ILLUSTRATION,GRAY
5.50F-16,#,TYPE D:REFER TO ILLUSTRATION
5.50F-16,#,TYPE D:REFER TO ILLUSTRATION,GRAY
5.50F-15,#,TYPE E:REFER TO ILLUSTRATION,BEIGE
5.50F-16,#,TYPE D:REFER TO ILLUSTRATION,GRAY
15X7JJ,SILVER,TYPE F:REFER TO ILLUSTRATION
42601RWHEEL, DISC (FOR REAR)
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E2 ,8E3
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E2 ,8E3
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,4J9 ,541 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,138 ,147 ,3B2 ,3H4 ,4J9 ,541 ,6K3 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,6J7 ,8D8 ,8E3
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7 ,4J8 ,6J7 ,8D8 ,8E3
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,3H4 ,3H7 ,4J9 ,6K3 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,033 ,147 ,179 ,3B2 ,3H4 ,3H7 ,4J9 ,541 ,6K3 ,8D8 ,8E2
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E3
6JX16,TYPE A,SILVER M,045 ,147 ,179 ,202 ,27L ,28L ,3H4 ,3H7 ,4J8 ,4K4 ,6J7 ,8D8 ,8E3
6JX16,#,TYPE A
6JX16,TYPE B:REFER TO ILLUSTRATION,SILVER M.
6JX16,TYPE B,SILVER M.
15X6JJ,TYPE G,SILVER M.
16X6J,TYPE B,SILVER
16X6J,OFFSET 30, #,TYPE A:REFER TO ILLUSTRATION,SILVER M.
5.50F-16,#,TYPE D
5.50F-16,#,TYPE D,GRAY
5.50F-15,#,TYPE E:REFER TO ILLUSTRATION,BEIGE
5.50F-16,#,TYPE D,GRAY
15X7JJ,SILVER,TYPE F:REFER TO ILLUSTRATION
42611GVALVE (FOR TUBELESS TIRE)
BRAZIL SPEC & W(ALUMINUM WHEEL)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42613ARING, DISC WHEEL SIDE
W(5.50F-16 DISC WHEEL)
W(5.50F-16 DISC WHEEL)
42652TIRE
215R15-6PRLT
205R16C 6PR,W(5.50F-16 DISC WHEEL)
205R16C 6PR
205R16C-6PR,W(5.50F-16 DISC WHEEL)
205R16C-6PR,W(6JX16 DISC WHEEL)
sub42605-35291
7.00-15-6,SEMI LUG
205R16C
205R16C,W(6JX16 DISC WHEEL)
205R16C-6,W(6JX16 DISC WHEEL)
sub42605-35291
P225/75R15,*B/S,BRAZIL SPEC
P225/75R15,USA,*D/L,BRAZIL SPEC
P225/75R15,USA,*B/S,BRAZIL SPEC
265/75R15,*D/L
215R15-6
7.00-15-8
7.00-16-8PR
42652ATIRE (FOR SPARE)
215R15-6PRLT
205R16C 6PR,W(5.50FX16 WHEEL)
205R16C 6PR
205R16C-6PR,W(5.50FX16 WHEEL)
205R16C
P225/75R15,USA,*B/S,BRAZIL SPEC
P225/75R15,*B/S,BRAZIL SPEC
P225/75R15,USA,*D/L,BRAZIL SPEC
P225/75R15,USA,*B/S,BRAZIL SPEC
P225/75R15,*D/L,BRAZIL SPEC
265/75R15,*D/L
215R15-6
7.00-15-8
7.00-16-8PR
9 parts on this diagram · 4 diagrams in section
