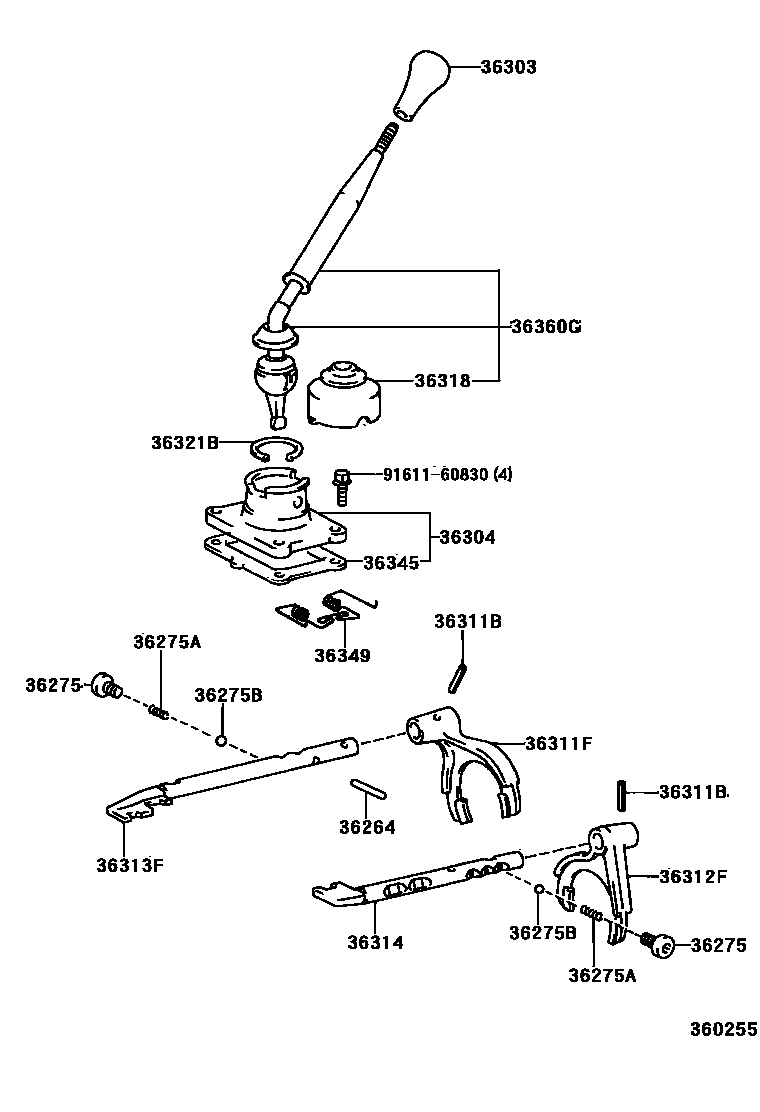

TRANSFER LEVER & SHIFT ROD

0001 1 0005 1 0010 1 0013 1

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06005iLN107..ARL199508-199812

L=30.8,OD=6,NEW ZEALAND SPEC

main90250-10020iLN135,YN135;LN111,RN110,135..SR5198808-198908

36275PLUG, SHIFT DETENT BALL SPRING

main90341-10064×2iLN205..SR5200106-200202

main90341-12014iVZN130..4D..5F199008-199511

SR LIMITTED PACKAGE

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-09107iLN135,VZN130,YN135..5F;LN111,130,RN110,13#..(4D,T1)..(ARL,V)199008-199108

LH,INNER

main90501-13001×2iLN107..ARL199508-199812

L=16.5,NEW ZEALAND SPEC

main90501-16116×2iLN111,130,RN110,130..SR5198908-199008

main90501-18091iLN13#,RN13#199108-199511

LH,OUTER

36275BBALL, SHIFT DETENT

main90360-08009×2iLN107..ARL199508-199812

OD=7.94,STEEL,NEW ZEALAND SPEC

main90360-10003iLN107,111,RN106,110,VZN130..(2D,T1,TW1)..ARL..CBU199008-199708

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35050-02iLN135,YN135199008-199108

RED,TRIM3#

sub36303-35040

main36303-35050-03iRN135,VZN130..4D..5F;LN13#,RN130,YN135..DLX198908-199108

GRAY,TRIM1#

sub36303-35040

main36303-35050-04iLN135,YN135;LN111,RN110,135..SR5198808-198908

BLUE,TRIM8#

sub36303-35040

main36303-35050-06iRN135,VZN130..4D..5F;LN13#,RN130,YN135..DLX198908-199108

BROWN,TRIM4#

sub36303-35040

main36303-35060-03iLN111..GEN;LN106,RN105,YN106198808-199008

GRAY,TRIM1#

main36303-35060-04iLN111..GEN;LN106,RN105,YN106198808-199008

BLUE,TRIM8#

main36303-35060-06iLN106,111,RN105,YN106..DLX,STD198808-199008

BROWN,TRIM4#

main36303-35070-01iLN13#,RN130,YN135..DLX198904-199008

BLACK,TRIM1#,4#,8#

main36303-35080-01iLN106,RN105,YN106..STD198908-199008

BLACK,TRIM1#,4#,8#

main36303-35090-03iVZN130..4D..5F199008-199108

SR LIMITTED PACKAGE,GRAY,TRIM1#

main36303-35090-04iVZN130..4D..5F199008-199108

BLUE,TRIM8#

main36303-35090-06iVZN130..4D..5F199008-199108

BROWN,TRIM4#

main36303-35100iLN106,111,RN105,YN106..(DLX,STD)..(ARL,GEN)199008-199108

main36303-35110-03iLN111..GEN;LN106,RN105,YN106199008-199108

GRAY,TRIM1#

main36303-35110-04iVZN130..5F;RN106,135..GEN,V;LN106,111,13#,RN105,130,YN106..DLX,STD199108-199202

BLUE,TRIM8#

main36303-35110-06iLN111..GEN;LN106,RN105,YN106199008-199108

BROWN,TRIM4#

main36303-35110-D0iRN105..V199108-199708

RED,TRIM3#

main36303-35110-R9iRN105..V;LN13#,RN13#,VZN130..5F199408-199708

MEDIUM BLUE,TRIM8#

main36303-35110-S4iLN111..IV3;LN107,111,RN106..GEN..CBU;LN106,13#,RN105,13#,VZN130,YN106..5F199208-199805

MEDIUM GRAY,TRIM1#

main36303-35120-B0iLN107,111,RN106,110..ARL..CBU199108-199812

GRAY,TRIM1#

sub36303-35170

main36303-35120-J0iLN107,111,RN106,110..ARL..CBU199108-199408

BLUE,TRIM8#

sub36303-35170

main36303-35140-B3iKZN205,LN205..SR5,SRV200202-200412

MD.GRAY,TRIM1#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35030iLN111..GEN;LN106,RN105,YN106198808-199008

main36304-35031iLN107199508-199605

NEW ZEALAND SPEC

sub36304-35H18

sub36304-35H19

sub36304-35H20

main36304-35032iLN205..SR5200106-200202

main36304-35040iVZN130..5F199008-199511

sub36304-35H01

sub36304-35H21

sub36304-35H27

main36304-35050iLN111,RN106..ARL..CBU;LN107,13#,RN110,13#,YN135198808-199608

sub36304-35H02

sub36304-35H03

sub36304-35H04

sub36304-35H05

sub36304-35H06

sub36304-35H07

sub36304-35H08

sub36304-35H09

sub36304-35H10

sub36304-35H11

sub36304-35H12

sub36304-35H22

sub36304-35H23

sub36304-35H24

sub36304-35H25

sub36304-35H26

main36304-35051iLN107,111,RN106,110..ARL..CBU199608-199812

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×2iLN205..DLX200106-200410

L=22

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35010iLN205..SR5200106-200202

main36311-35020iRN135,VZN130..4D..5F;LN13#,RN130,YN135..DLX198904-199511

main36311-35030iLN205..SR5200202-200412

main36311-35041iVZN130..4D..5F199008-199511

SR LIMITTED PACKAGE

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35020iLN205..DLX200106-200410

main36312-35030iLN135,VZN130,YN135..5F;LN111,130,RN110,13#..(4D,T1)..(ARL,V)199008-199108

main36312-35040iLN205..SR5200202-200412

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35020iLN107..ARL199508-199812

NEW ZEALAND SPEC

main36313-35040iVZN130..4D..5F199008-199511

main36313-35050iLN135,YN135;LN111,RN110,135..SR5198808-198908

main36313-35080iKZN205200111-200412

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35020iLN205..DLX200106-200410

main36314-35060iVZN130..4D..5F199008-199108

main36314-35070iLN135,YN135;LN111,RN110,135..SR5198808-198908

main36314-35090iLN111,RN110..ARL199008-199106

main36314-35091iLN111,RN110..ARL199106-199108

main36314-35100iVZN130..4D..5F199008-199106

SR LIMITTED PACKAGE

main36314-35101iVZN130..4D..5F199106-199108

SR LIMITTED PACKAGE

main36314-35110iLN13#,RN13#;LN107,111,RN106,110..ARL..CBU199108-199708

main36314-35120iVZN130..5F199108-199511

SR LIMITTED PACKAGE

main36314-35130iVZN130..5F199108-199511

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-20060iLN111..IV3;LN106,RN105,YN106;LN111,RN106..GEN..CBU198808-199605

main33555-35090iLN111,RN106..ARL..CBU;LN107,13#,RN110,13#,VZN130,YN135..5F198808-199608

main33555-35190iKZN205200108-200202

main33555-35200iLN205200106-200202

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F198808-200106

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35020iLN111..GEN;LN106,RN105,YN106198808-199008

main36345-35021iLN205..DLX200106-200412

main36345-35030iVZN130..5F199008-199511

main36345-35040iKZN205200108-200412

36349SPRING, TRANSFER SELECT RETURN

main36349-35010iVZN130..4D..5F199008-199511

main36349-35020iRN135;LN13#,RN130,YN135..DLX198908-199008

main36349-35030iLN111..GEN;LN106,RN105,YN106199008-199010

main36349-35031iLN107199908-200106

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-35070iLN13#,RN13#,YN135..LHD198904-199511

main36360-35071iLN205..SR5200202

main36360-35080iLN111,135,RN110,YN135..RHD198808-198908

sub36360-35081

sub36304-35041

main36360-35100iLN106,111,RN10#,YN106..LHD198808-199605

main36360-35101iLN10#,111,RN10#,YN106..LHD199605-200106

main36360-35110iLN107199508-199605

NEW ZEALAND SPEC

main36360-35111iLN107..ARL199605-199812

NEW ZEALAND SPEC

main36360-35120iLN111,130,RN110,130..SR5198908-199008

main36360-35121iLN107,111,RN106,110..ARL..CBU199608-199812

main36360-35181iKZN205200108

9161160830

main91611-60830

17 parts on this diagram · 4 diagrams in section
