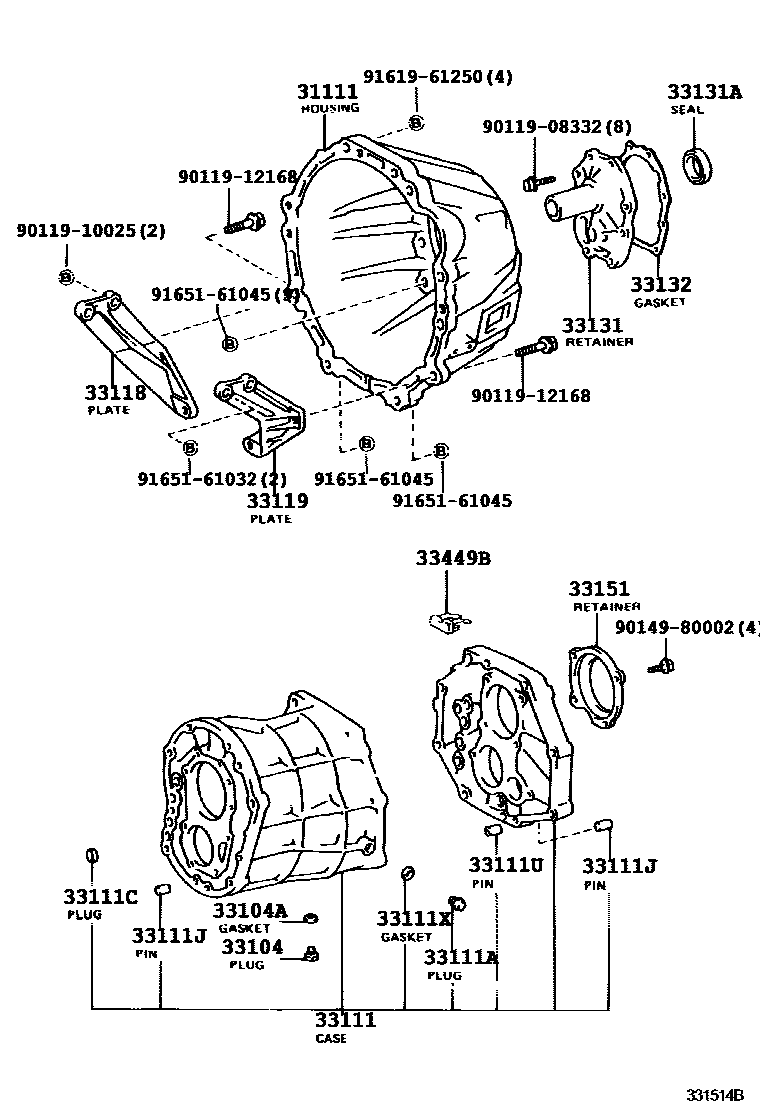

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1R151

31111HOUSING, CLUTCH

main31111-30180iYN106,135198808-199708

main31111-35011iRN10#,110,13#198808-199908

main31111-35031iLN106,111,13#198808-199812

sub31111-35032

main31111-35032iLN107199008-200412

main31111-35050iVZN130..5F199008-199511

main31111-35101iKZN205200108-200412

sub31111-35102

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKZN205199008-200412

main90341-18057iLN107198808-200412

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F198808-200412

33111CASE, MANUAL TRANSMISSION

main33101-35030iVZN130..5F199008-199108

sub33101-35031

sub90341-16014

main33101-35031iVZN130..5F199108-199405

sub33101-60030

main33101-35050iLN13#,RN13#,YN135;LN107,111,RN106,110..ARL..CBU198808-200412

sub33101-35051

main33101-35070iLN107198808-200412

main33101-35070iLN107..ARL199508-199812

NEW ZEALAND SPEC

main33101-35080iVZN130..5F199405-200202

sub33101-60050

main33101-60050iKZN205200202-200412

sub33101-60051

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iLN13#,RN13#,YN135;LN107,111,RN106,110,VZN130..5F..ARL..CBU198808-199812

main90341-18019iLN107..ARL199508-199812

NEW ZEALAND SPEC

main90341-18019iLN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU198808-200412

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F198808-200412

OD=14

main96411-41800iVZN130..5F199405-200412

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLN10#,111,13#,RN10#,110,13#,YN106,135198808-200412

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iLN135,YN135;LN111,130,RN110,13#..ARL,V198808-199108

L=11,OD=11

main90253-15001iVZN130..5F198808-200412

L=14,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iLN13#,RN13#,YN135;LN107,111,RN106,110,VZN130..5F..ARL..CBU198808-199812

33118PLATE, STIFFENER, RH(MTM)

main33118-28010iYN106,135198808-199708

main33118-35020iRN10#,110,13#198808-199909

main33118-35030iLN106,111198808-198904

sub33118-35031

main33118-35031iLN106,111,13#198904-200106

sub33118-35060

main33118-35040iVZN130..5F199008-199511

main33118-35060iLN205200106

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLN10#,111,13#198808-200106

main33119-28010iYN106,135198808-199708

main33119-35021iRN10#,110,13#198808-199909

main33119-35030iVZN130..5F199008-199511

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLN10#,111,13#,RN10#,110,13#,YN106,135198808-200412

main33131-35031iVZN130..5F199008-200412

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iLN106,111,13#,RN105,110,13#,YN106,135198808-199007

sub90311-30014

main90311-30014iLN10#,111,13#,RN10#,110,13#,YN106,135199007-200412

main90311-32012iVZN130..5F199008-200412

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iLN10#,111,13#,RN10#,110,13#,YN106,135198808-200412

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iVZN130..5F199008-200412

main33151-35030iLN10#,111,13#,RN10#,110,13#,YN106,135198808-200412

33449BMAGNET, TRANSMISSION

main33449-26010iLN205198908-200412

main33449-35010iVZN130..5F199008-199405

main33449-35030iKZN205199405-200412

9011908332

main90119-08332

9011910025

main90119-10025

9011912168

main90119-12168

9014980002

main90149-80002

9161961250

main91619-61250

9165161032

main91651-61032

9165161045

main91651-61045

23 parts on this diagram · 6 diagrams in section
